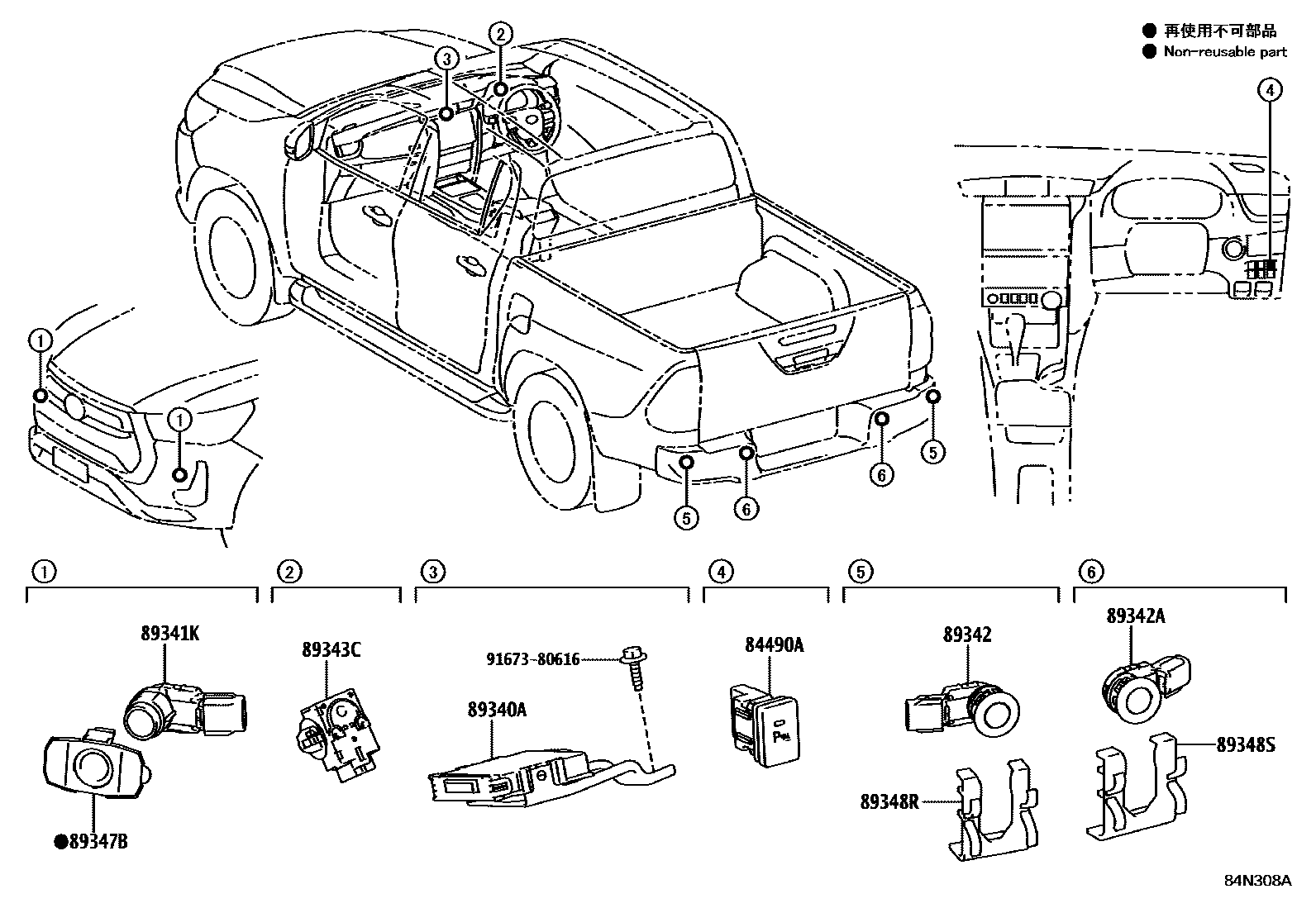

CLEARANCE & BACK SONAR
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
SUPER WHITE 2,040
SILVER ME.,1D6
ATTITUDE BLACK MC.,218
OXIDE BRONZE ME.,6X1
DK. BLUE MC.,8X8
89342SENSOR, ULTRASONIC, REAR CORNER
89342ASENSOR, ULTRASONIC, REAR CENTER
89343CBUZZER, CLEARANCE WARNING, NO.1
89347BRETAINER, ULTRASONIC SENSOR, FRONT CORNER
89348RRETAINER, ULTRASONIC SENSOR, REAR CORNER
89348SRETAINER, ULTRASONIC SENSOR, REAR CENTER
9167380616
main91673-80616
10 parts on this diagram · 1 diagram in section
