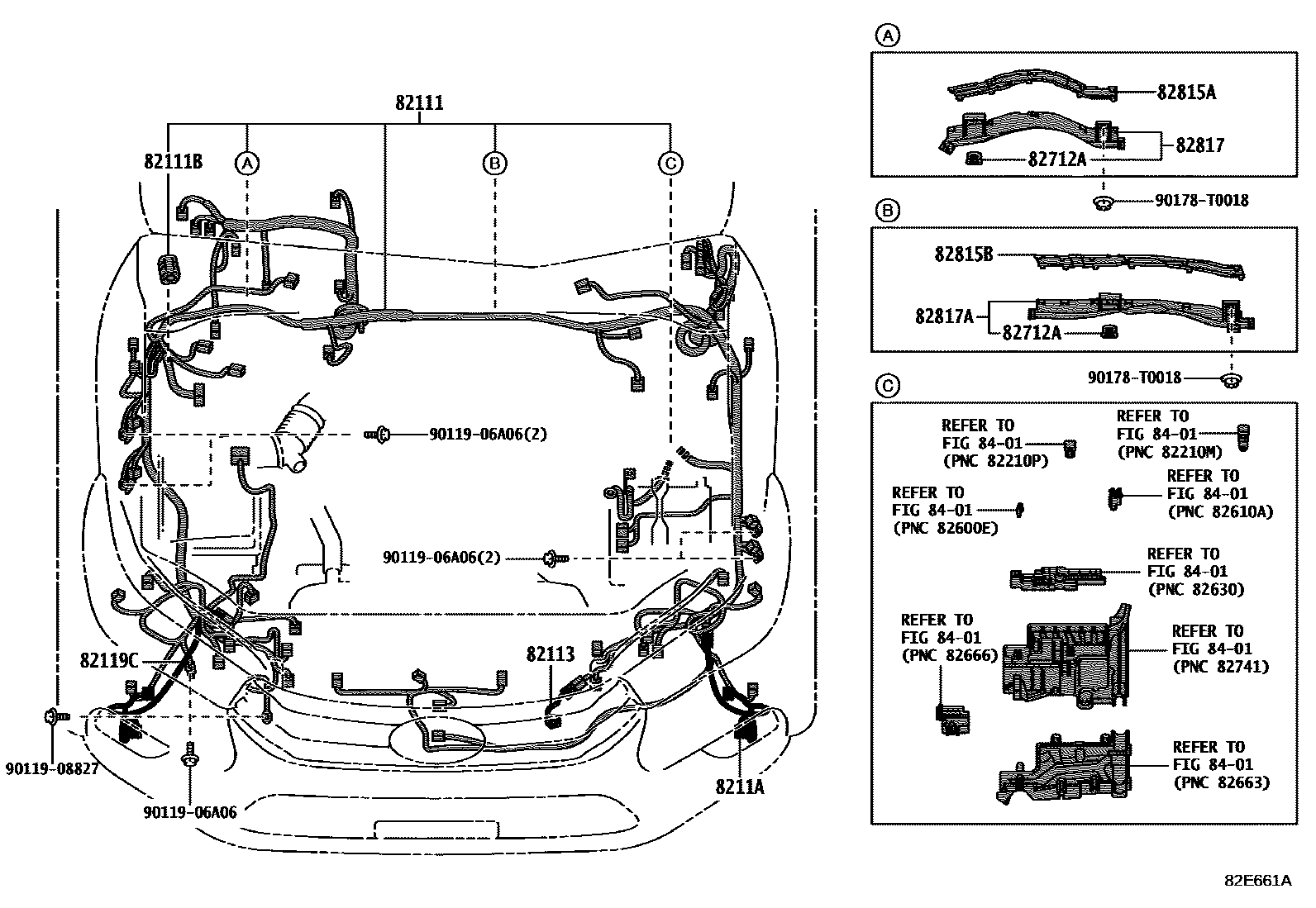

82111WIRE, ENGINE ROOM MAIN

main8211E-KKM30iGUN125..X202108-202207

main8211F-KK030supersedes 8211E-KKM20iGUN125..Z202108-202207

82111BCONDENSER

main90980-04206iGUN125202108-202207

82113WIRE, ENGINE ROOM, NO.3

main82113-KK020iGUN125202108-202207

82119CWIRE, ENGINE ROOM, NO.5

main82119-KK060iGUN125..X202108-202207

main82119-KK130supersedes 82119-KK050iGUN125..Z202108-202207

8211AWIRE, ENGINE ROOM, NO.6

main8211A-KK060iGUN125..X202108-202207

main8211A-KK140supersedes 8211A-KK050iGUN125..Z202108-202207

82712ASUPPORT, WIRING HARNESS

main82712-33190×2iGUN125202108-202207

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-0K560iGUN125202108-202207

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-0K550iGUN125202108-202207

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-0K560iGUN125202108-202207

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-0K550iGUN125202108-202207

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906A06

main90119-06A06

9011908827

main90119-08827

90178T0018

main90178-T0018

14 parts on this diagram · 8 diagrams in section
