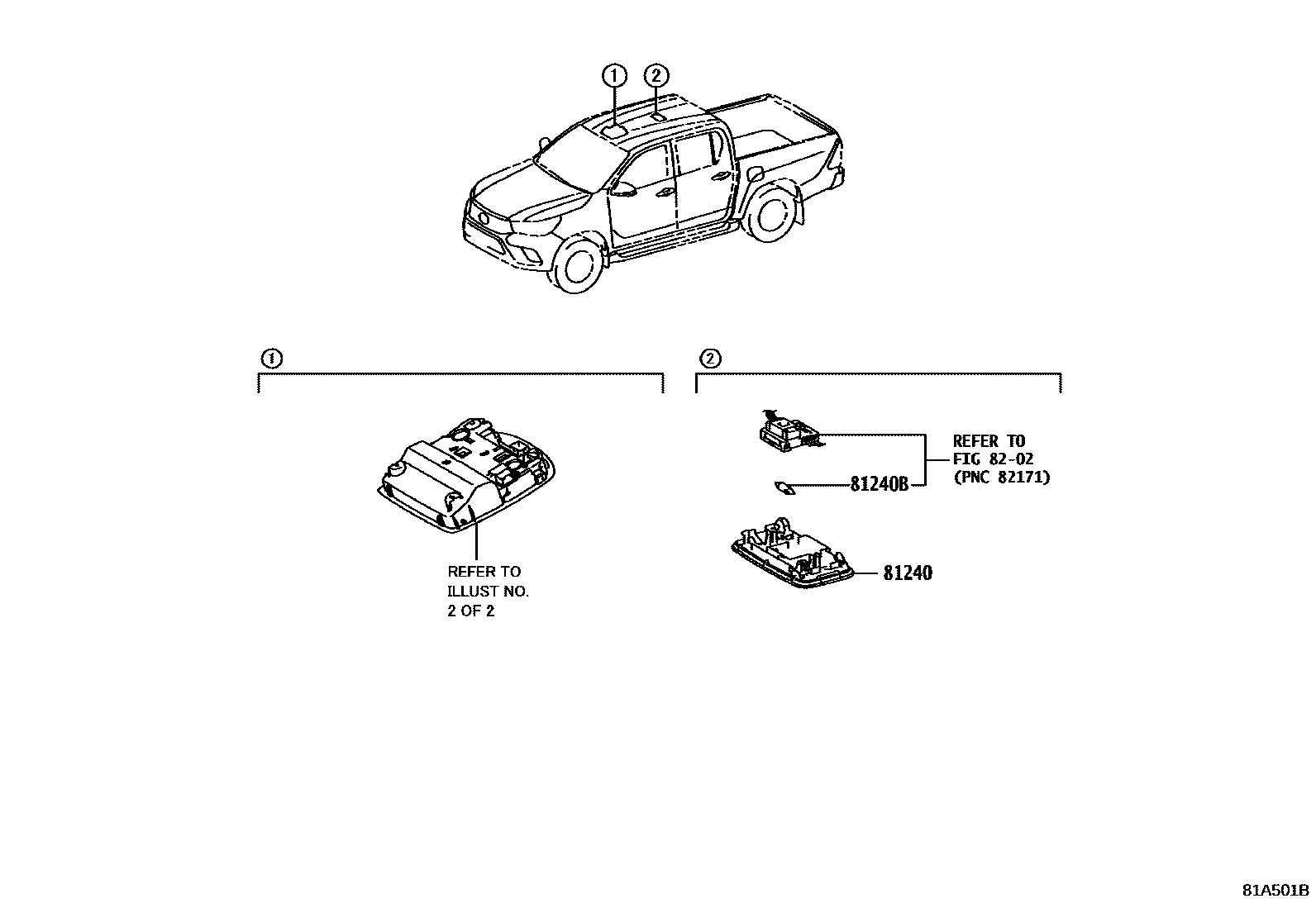

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-0K090-B0iGUN125..X; GUN125..Z202108-202207

LT.GRAY,TRIM2#; LT.GRAY,TRIM20

main81240-0K090-C0iGUN125..Z202108-202207

BLACK,TRIM23

81240BBULB, ROOM LAMP, NO.1

main90981-14011iGUN125202108-202207

8202WIRING & CLAMP

→ Go to FIG 82-02

3 parts on this diagram · 2 diagrams in section
