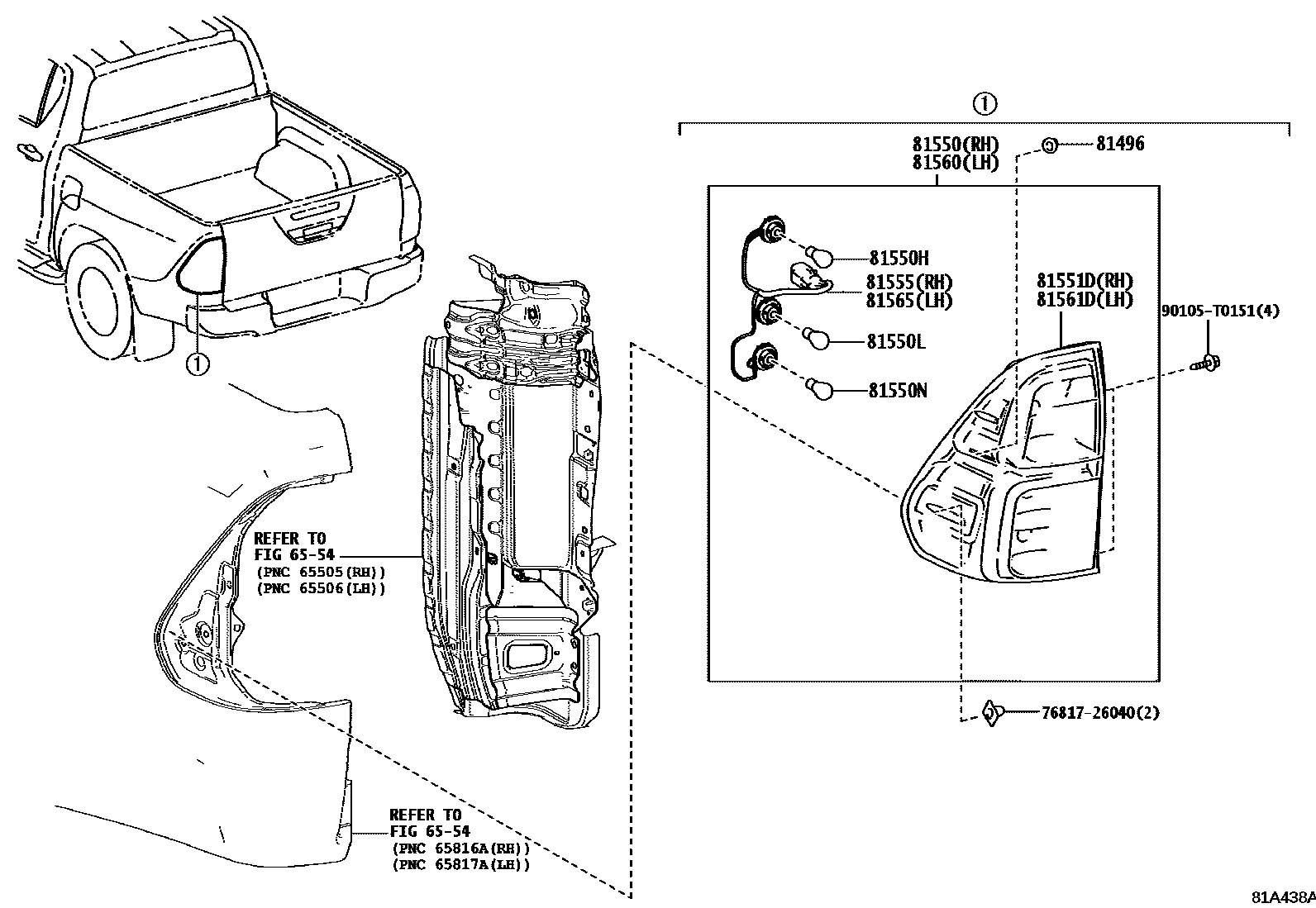

REAR COMBINATION LAMP

0001 1 0002 1

6554REAR BODY SIDE PANEL

→ Go to FIG 65-54

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040iGUN125202108-202207

main81496-52020iGUN125202108-202207

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K440iGUN125..Z202108-202110

main81550-0K441iGUN125..Z202111-202207

main81550-0K570iGUN125..X202108-202207

81550HBULB, TAIL & STOP LAMP

main90981-13094iGUN125..X202108-202207

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15028iGUN125202108-202207

81550NBULB, BACK UP LAMP

main90981-13093iGUN125..X202108-202207

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0K440iGUN125..Z202108-202111

main81551-0K441iGUN125..Z202111-202207

main81551-0K570iGUN125..X202108-202207

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K270iGUN125..X202108-202207

main81555-0K440iGUN125..Z202108-202207

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K430iGUN125..Z202108-202110

main81560-0K431iGUN125..Z202111-202207

main81560-0K570iGUN125..X202108-202207

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0K430iGUN125..Z202108-202111

main81561-0K431iGUN125..Z202111-202207

main81561-0K570iGUN125..X202108-202207

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K260iGUN125..X202108-202207

main81555-0K430iGUN125..Z202108-202207

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

90105T0151

main90105-T0151

13 parts on this diagram · 2 diagrams in section
