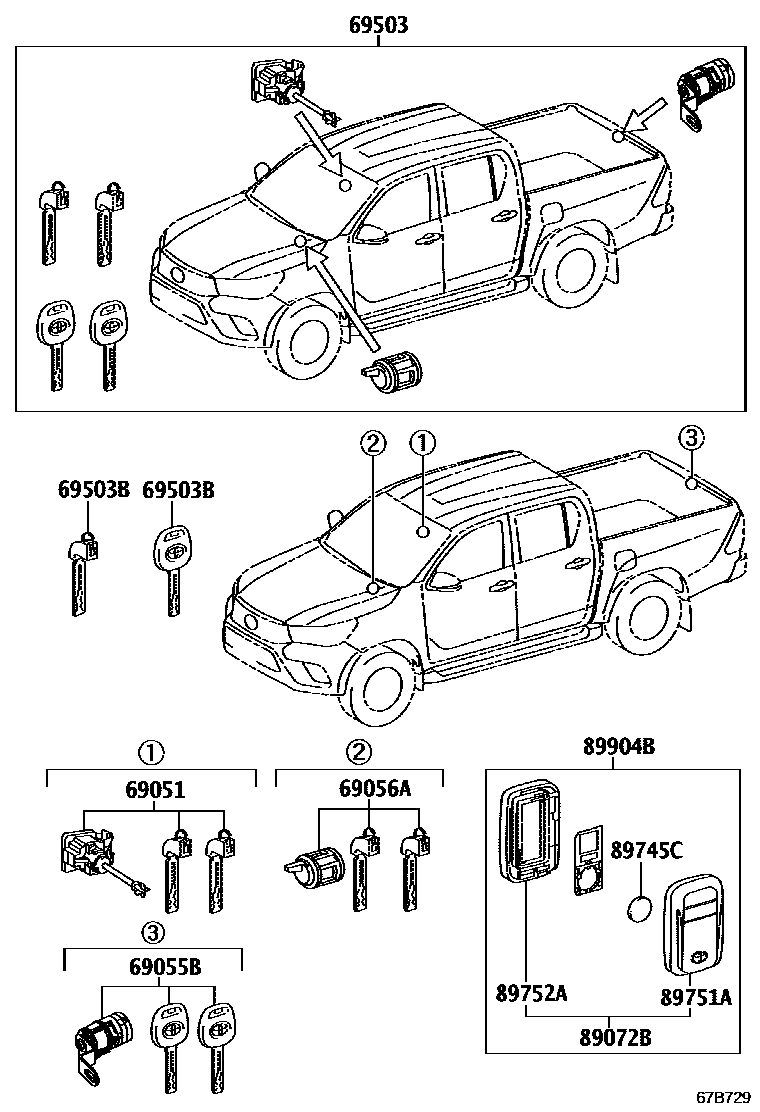

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-0K220iGUN125..X202108-202207

main69051-0K230iGUN125..Z202108-202207

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-0K070iGUN125..X202108-202207

main69055-0K080iGUN125..Z202108-202207

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-0K050iGUN125..X202108-202207

main69056-0K060iGUN125..Z202108-202207

69503CYLINDER SET, LOCK

main69005-0K400iGUN125..Z202108-202207

main89704-0KX70iGUN125..X202108-202207

69503BKEY, CUT

main69515-0K120×2iGUN125..Z202108-202207

main69515-33110iGUN125..Z202108-202207

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-0K790×2supersedes 89072-0KG40iGUN125..Z202108-202207

89745CBATTERY, TRANSMITTER

main89745-0K010iGUN125..Z202108-202207

89751ACOVER, TRANSMITTER HOUSING

main89751-0K120×2iGUN125..Z202108-202207

89752ACASE, TRANSMITTER HOUSING

main89752-0K390×2supersedes 89752-0K840iGUN125..Z202108-202207

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-0K820×2supersedes 89904-0KM50iGUN125..Z202108-202207

10 parts on this diagram · 2 diagrams in section
