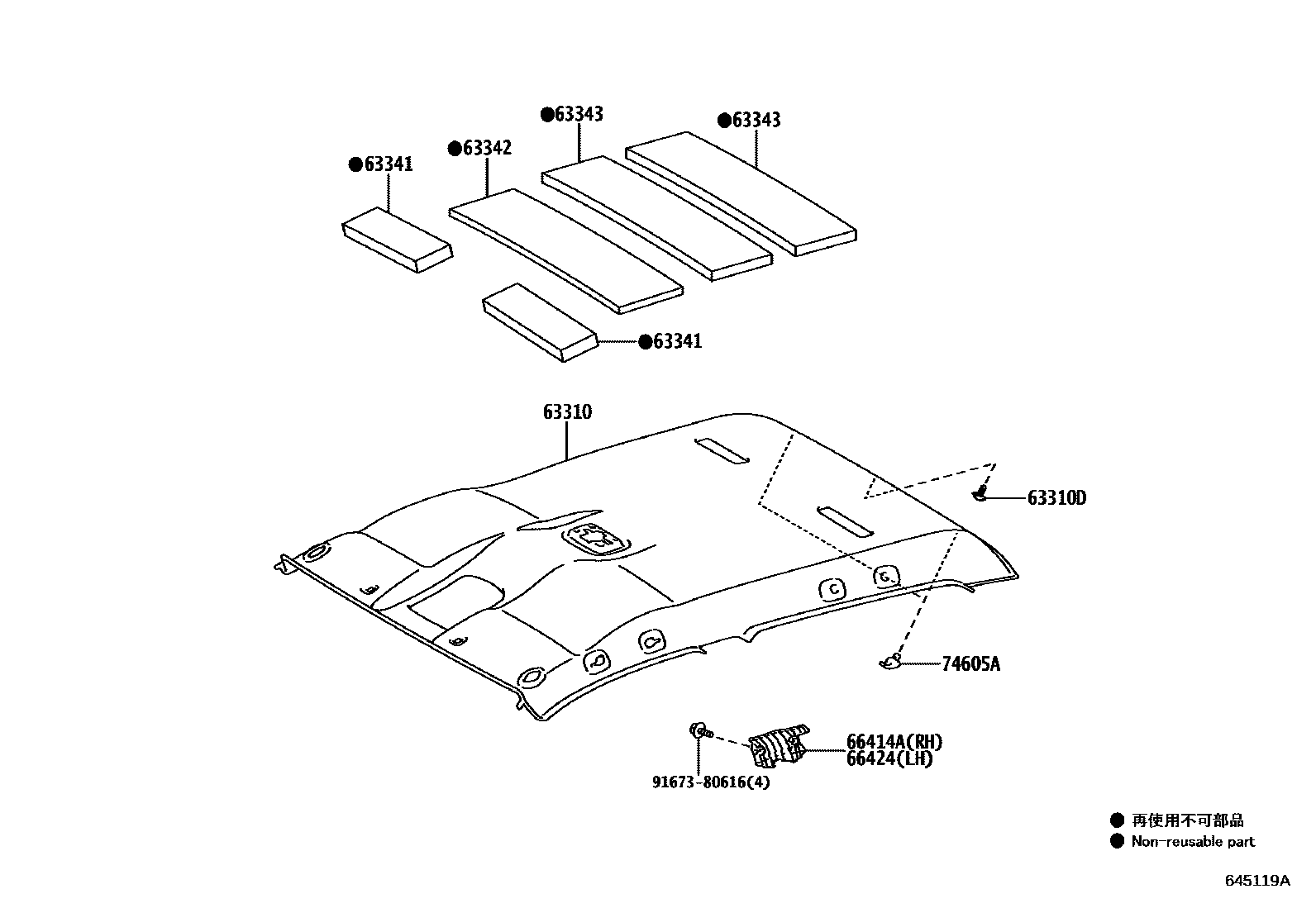

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-F0450-B0iGUN125..X; GUN125..Z202108-202207

LT. GRAY,TRIM2#; LT. GRAY,TRIM20

main63310-F0450-C0iGUN125..Z202108-202207

63310DCLIP, ROOF HEADLINING

main90467-T0004-B0iGUN125..X; GUN125..Z202108-202207

LT.GRAY,TRIM2#; LT.GRAY,TRIM20

main90467-T0004-C1iGUN125..Z202108-202207

BLACK,TRIM23

63341PAD, ROOF SILENCER, NO.1

main63342-0K230×2iGUN125202108-202207

63342PAD, ROOF SILENCER, NO.2

main63342-0K240iGUN125202108-202207

63343PAD, ROOF SILENCER, NO.3

main63342-0K460×2iGUN125202108-202207

66414ASPACER, SIDE RAIL, REAR RH

main66414-KK010iGUN125202108-202207

66424SPACER, SIDE RAIL, REAR LH

main66424-KK010iGUN125202108-202207

74605AHOOK SUB-ASSY, COAT

main74631-0K040-B0×2iGUN125..X; GUN125..Z202108-202207

LT.GRAY,TRIM2#; LT.GRAY,TRIM20

main74631-0K040-C0×2iGUN125..Z202108-202207

BLACK,TRIM23

9167380616

main91673-80616

9 parts on this diagram · 1 diagram in section
