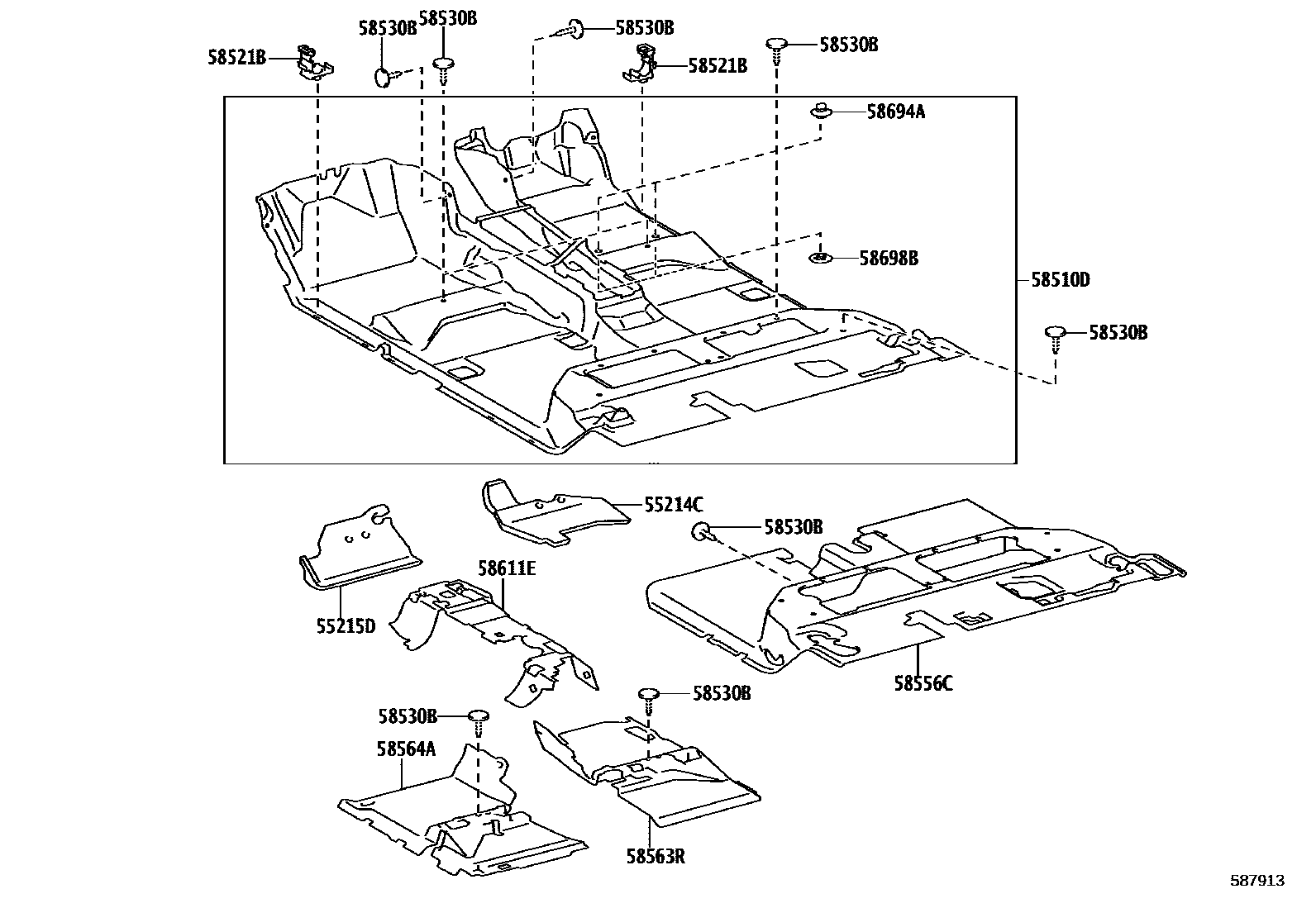

FLOOR MAT & SILENCER PAD
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM2#
58556CSILENCER, REAR FLOOR
58563RSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58611ESHEET, FRONT FLOOR SILENCER
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
11 parts on this diagram · 1 diagram in section
