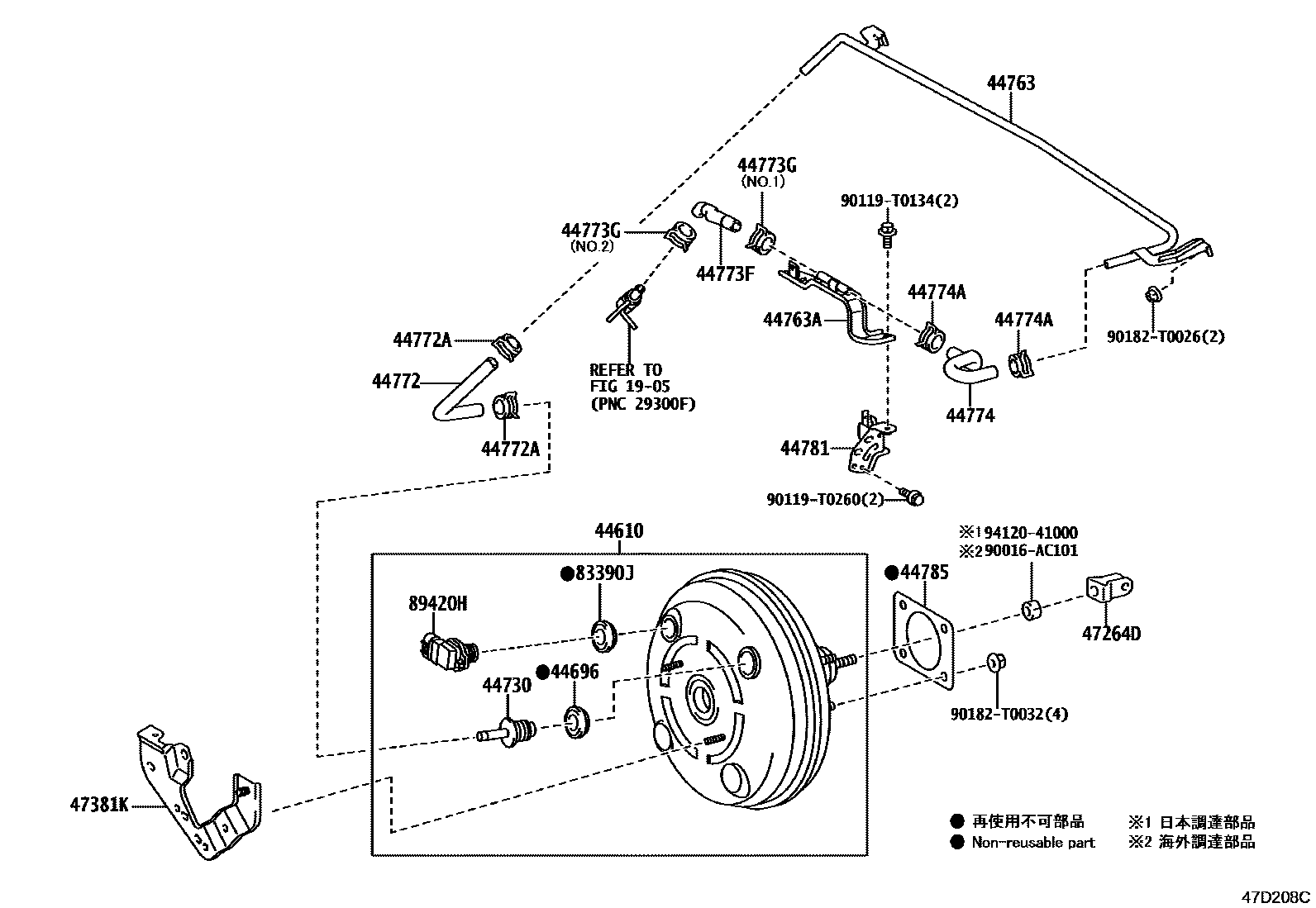

BRAKE BOOSTER & VACUUM TUBE

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-0K880iGUN125202108-202207

44696GROMMET, CHECK VALVE

main90016-AT003iGUN125202108-202207

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iGUN125202108-202207

44763TUBE, BOOSTER VACUUM

main44763-KK040iGUN125202108-202207

44763ATUBE, HOSE TO HOSE, NO.1

main44763-KK080iGUN125202108-202207

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-KK010iGUN125202108-202207

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-T0019×2iGUN125202108-202207

44773FHOSE, UNION TO CHECK VALVE

main44773-KK030iGUN125202108-202207

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-T0019iGUN125202108-202207

main90467-16014iGUN125202108-202207

44774HOSE, UNION TO CONNECTOR TUBE

main44774-KK040iGUN125202108-202207

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-T0019×2iGUN125202108-202207

44781BRACKET, HOSE

main44781-KK020iGUN125202108-202207

44785GASKET, BRAKE BOOSTER

main44785-17010iGUN125202108-202207

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-04010iGUN125202108-202207

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-0K071iGUN125202108-202207

83390JGROMMET, VACUUM WARNING SWITCH

main90016-AT003iGUN125202108-202207

89420HSENSOR ASSY, VACUUM

main89421-71040iGUN125202108-202207

90016AC101

main90016-AC101

90119T0134

main90119-T0134

90119T0260

main90119-T0260

90182T0026

main90182-T0026

90182T0032

main90182-T0032

9412041000

main94120-41000

24 parts on this diagram · 1 diagram in section
