BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

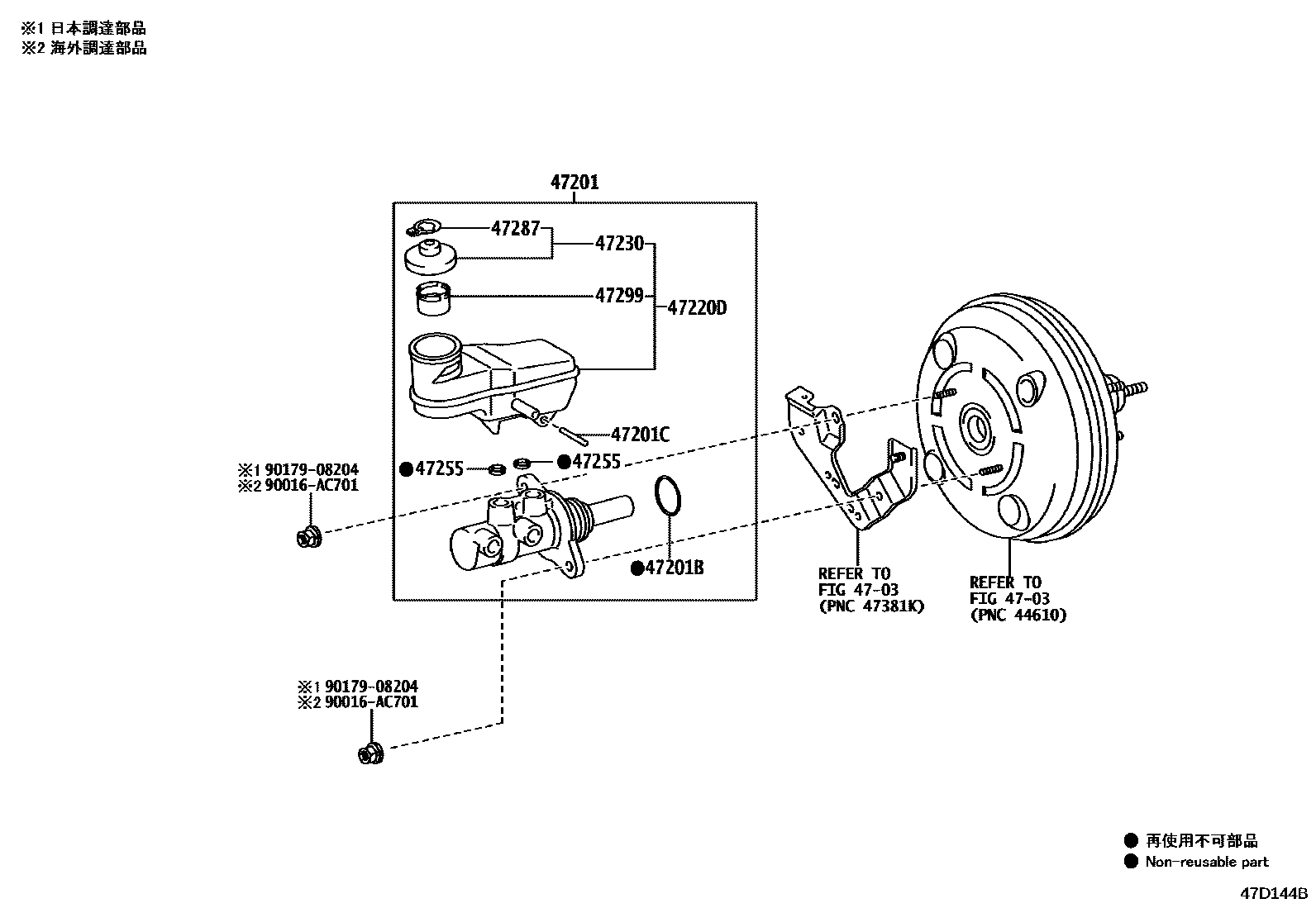

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0K600iGUN125202108-202207

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH903iGUN125202108-202207

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGUN125202108-202207

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0K100iGUN125202108-202207

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iGUN125202108-202207

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT001×2iGUN125202108-202207

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iGUN125202108-202207

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0D100iGUN125202108-202207

90016AC701

main90016-AC701

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
