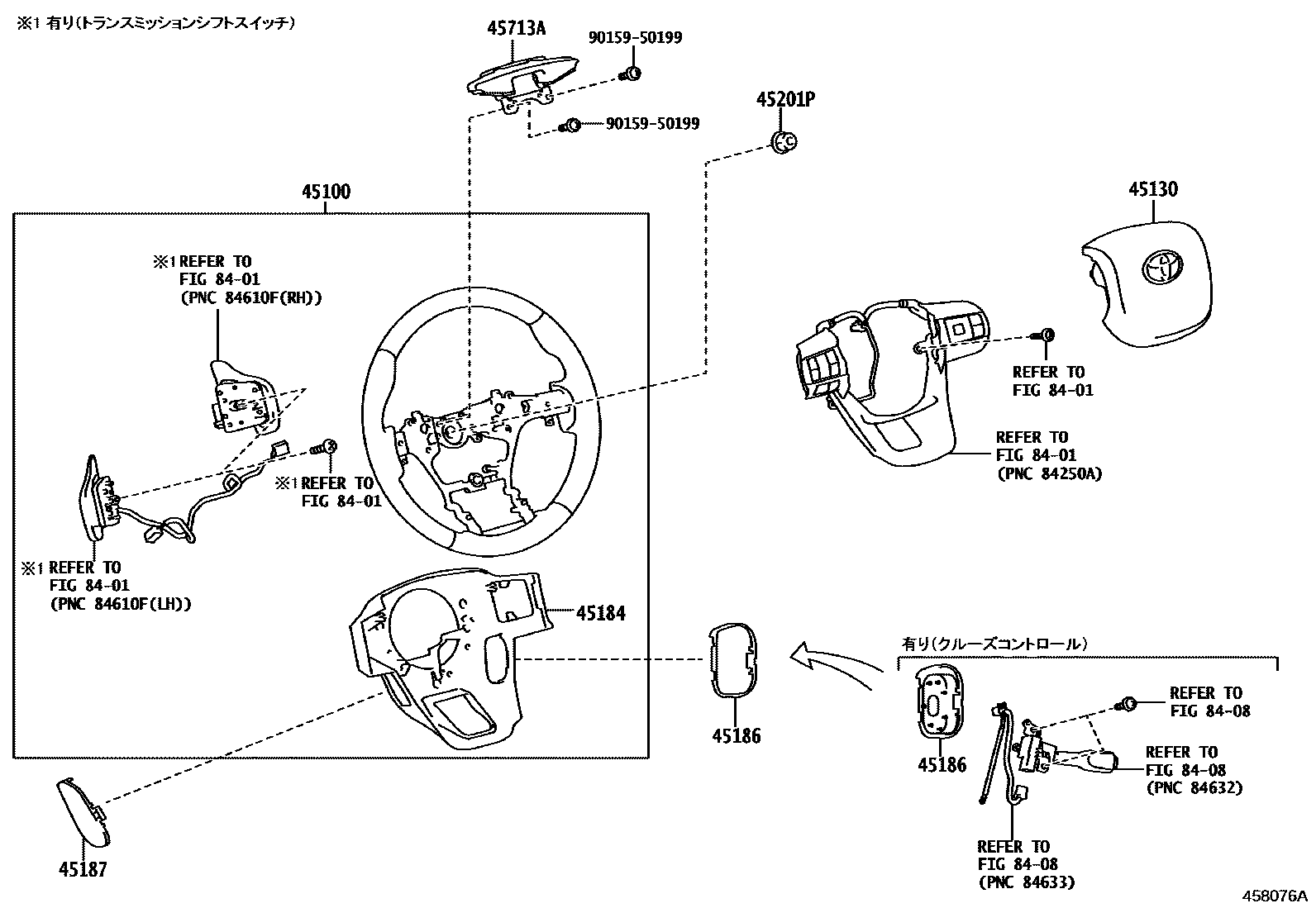

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0K250-C0iGUN125..X202108-202207

main45100-0K641-C0iGUN125..Z202108-202203

main45100-YP110-C0supersedes 45100-0K641-C0iGUN125..Z202108-202207

45130BUTTON ASSY, HORN

main45130-0K270-C0iGUN125; GUN125..Z202108-202207

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-0K010-C0iGUN125202108-202207

BLACK,TRIM2#

main45184-0K130-C0iGUN125..Z202108-202207

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-0K120-C0supersedes 45186-0K130-C0iGUN125..X; GUN125..Z202108-202207

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-0K050-C0iGUN125202108-202207

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90179-12071iGUN125202108-202207

45713ADAMPER, STEERING SHAKE

main45713-0K030iGUN125202108-202207

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

10 parts on this diagram · 1 diagram in section
