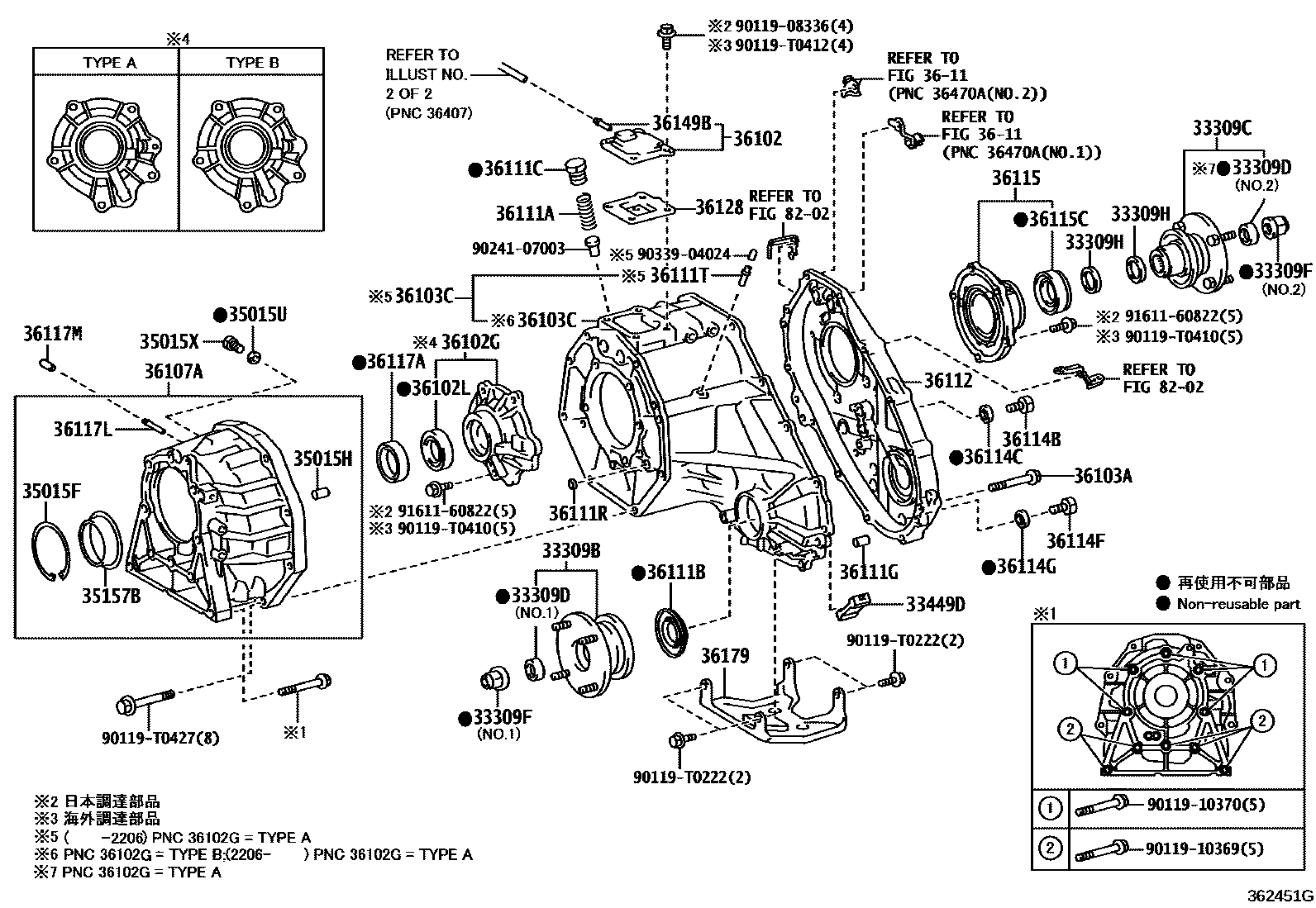

TRANSFER CASE & EXTENSION HOUSING

0001 1��������� 0002 1���������������

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-0K012iGUN125202108-202207

main33309-35113iGUN125202108-202207

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-0K030iGUN125202108-202207

main33309-71030iGUN125202108-202207

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iGUN125202108-202207

main90312-32006iGUN125202108-202207

main90312-T0004iGUN125202108-202207

33309FNUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90179-22016iGUN125202108-202207

main90179-24011iGUN125202108-202207

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-71010×2iGUN125202108-202207

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iGUN125202108-202207

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90521-72001iGUN125202108-202207

35015HPIN, RING(FOR TRANSFER CASE)

main90250-11003×2iGUN125202108-202207

35015URING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-T0068iGUN125202108-202207

35015XPLUG, REFILL(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGUN125202108-202207

35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL

main35157-0K010iGUN125202108-202207

36102COVER SUB-ASSY, TRANSFER CASE

main36102-0K020iGUN125202108-202207

main36102-35040iGUN125202108-202207

36102GRETAINER SUB-ASSY, TRANSFER FRONT BEARING

main36102-0K010iGUN125202108-202207

main36102-35060iGUN125202108-202207

36102LSEAL, TYPE T OIL(FOR TRANSFER FRONT BEARING)

main90311-43008iGUN125202108-202207

main90311-T0071iGUN125202108-202207

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28×12iGUN125202108-202207

main90119-T0411×12iGUN125202108-202207

36103CCASE, TRANSFER, FRONT

main36103-35060iGUN125202108-202207

main36111-0K030iGUN125202108-202207

36107AADAPTER SUB-ASSY, TRANSFER

main35015-0K020iGUN125202108-202207

3611TRANSFER LEVER & SHIFT ROD

→ Go to FIG 36-11

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-20091iGUN125202108-202207

main90501-T0034iGUN125202108-202207

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-41017iGUN125202108-202207

main90311-T0082iGUN125202108-202207

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iGUN125202108-202207

main90341-T0013iGUN125202108-202207

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214×2iGUN125202108-202207

main90250-T0026×2iGUN125202108-202207

36111RPLUG, TIGHT (FOR TRANSFER CASE)

main90331-15003iGUN125202108-202207

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iGUN125202108-202207

36112CASE, TRANSFER, REAR

main36112-0K030iGUN125202108-202207

main36112-71010iGUN125202108-202207

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iGUN125202108-202207

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iGUN125202108-202207

main90430-T0021iGUN125202108-202207

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18006iGUN125202108-202207

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main90430-18008iGUN125202108-202207

main90430-T0021iGUN125202108-202207

36115HOUSING, TRANSFER EXTENSION

main36105-0K020iGUN125202108-202207

main36105-71010iGUN125202108-202207

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-45034iGUN125202108-202207

main90311-T0072iGUN125202108-202207

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-43013iGUN125202108-202207

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iGUN125202108-202207

36117MCAP(FOR TRANSFER ADAPTER)

main90339-04024iGUN125202108-202207

36128DEFLECTOR, BREATHER OIL

main36128-0K020iGUN125202108-202207

main36128-35060iGUN125202108-202207

36149BTUBE, TRANSFER BREATHER

main90406-T0007iGUN125202108-202207

main90441-05001iGUN125202108-202207

36179PROTECTOR, TRANSFER CASE LOWER

main36179-0K011iGUN125202108-202207

8202WIRING & CLAMP

→ Go to FIG 82-02

9011908336

main90119-08336

9011910369

main90119-10369

9011910370

main90119-10370

90119T0222

main90119-T0222

90119T0410

main90119-T0410

90119T0412

main90119-T0412

90119T0427

main90119-T0427

9024107003

main90241-07003

9033904024

main90339-04024

9161160822

main91611-60822

48 parts on this diagram · 2 diagrams in section
