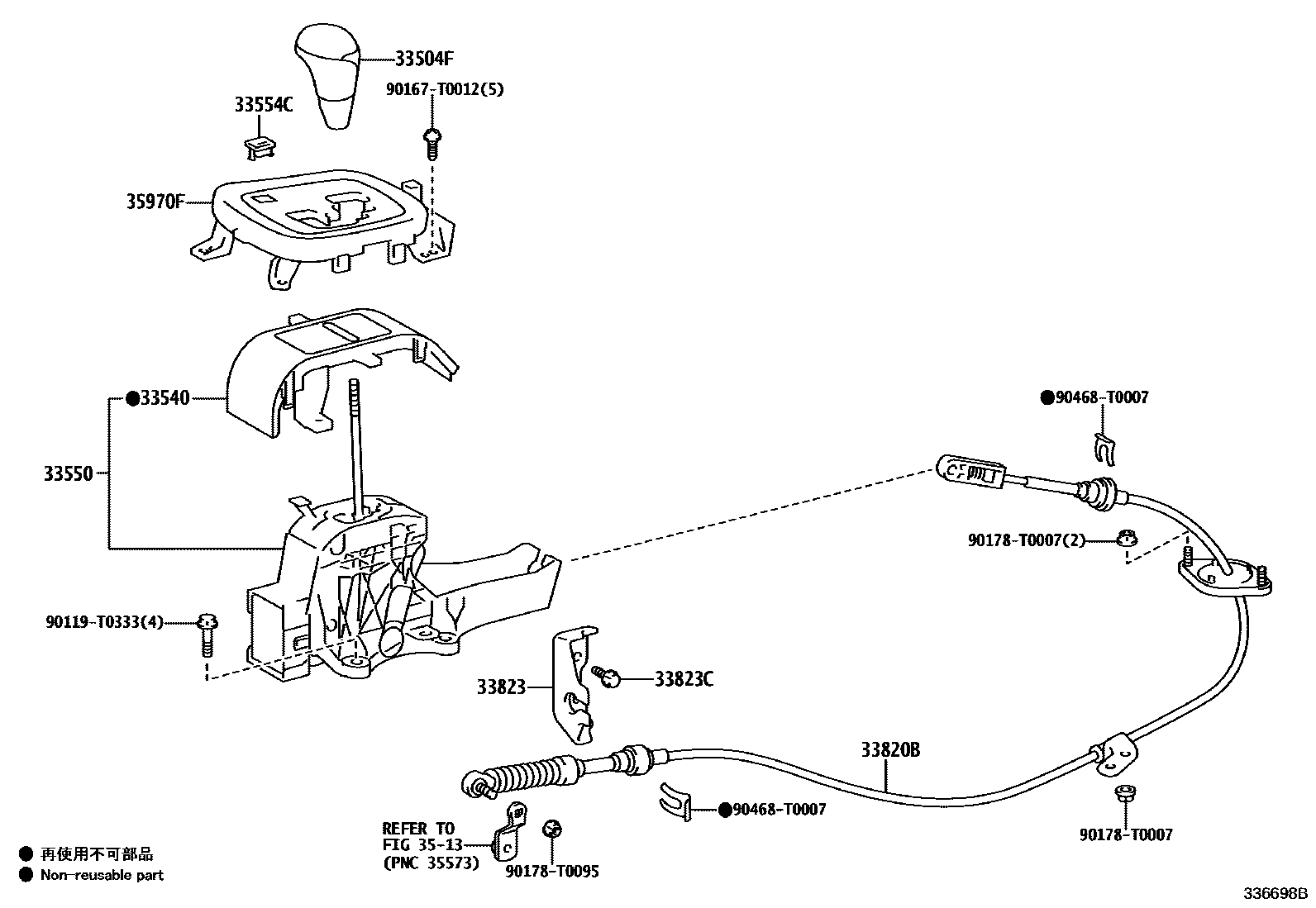

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0K131-C0iGUN125..X202108-202207

BLACK,TRIM2#

main33504-0K121-C0iGUN125..Z202108-202203

main33504-YP020-C0supersedes 33504-0K121-C0iGUN125..Z202108-202207

33540PLATE ASSY, SHIFT LEVER

main33540-0K040iGUN125202108-202207

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-0K160iGUN125..X202108-202207

main33550-0K170iGUN125..Z202108-202207

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-0K020iGUN125202108-202207

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0K171iGUN125202108-202207

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-KK010iGUN125202108-202207

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-T0102×2iGUN125202108-202207

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35970FHOUSING ASSY, POSITION INDICATOR

main35970-0K180iGUN125..X202108-202207

main35970-0K310iGUN125..Z202108-202203

main35970-YP030supersedes 35970-0K310iGUN125..Z202108-202207

90119T0333

main90119-T0333

90167T0012

main90167-T0012

90178T0007

main90178-T0007

90178T0095

main90178-T0095

90468T0007

main90468-T0007

14 parts on this diagram · 1 diagram in section
