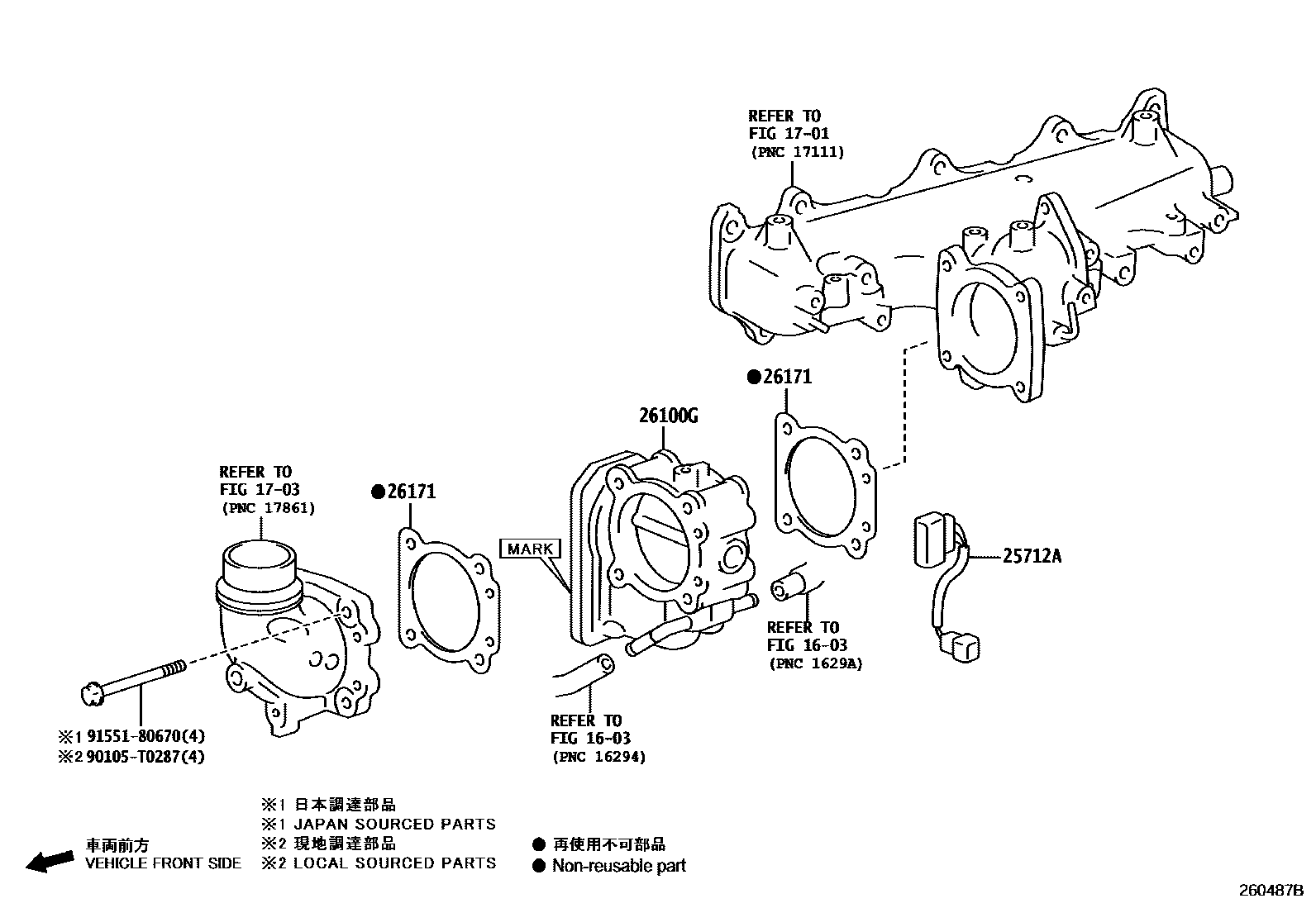

VENTURI

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

25712AWIRE, EMISSION CONTROL VALVE

main25712-0E010i2GDFTV..GUN125202108-202207

26100GBODY ASSY, DIESEL THROTTLE

main26100-0E040i2GDFTV..GUN125202108-202207

26171GASKET, VENTURI

main26171-0E030×2i2GDFTV..GUN125202108-202207

90105T0287

main90105-T0287

9155180670

main91551-80670

8 parts on this diagram · 1 diagram in section
