MANIFOLD

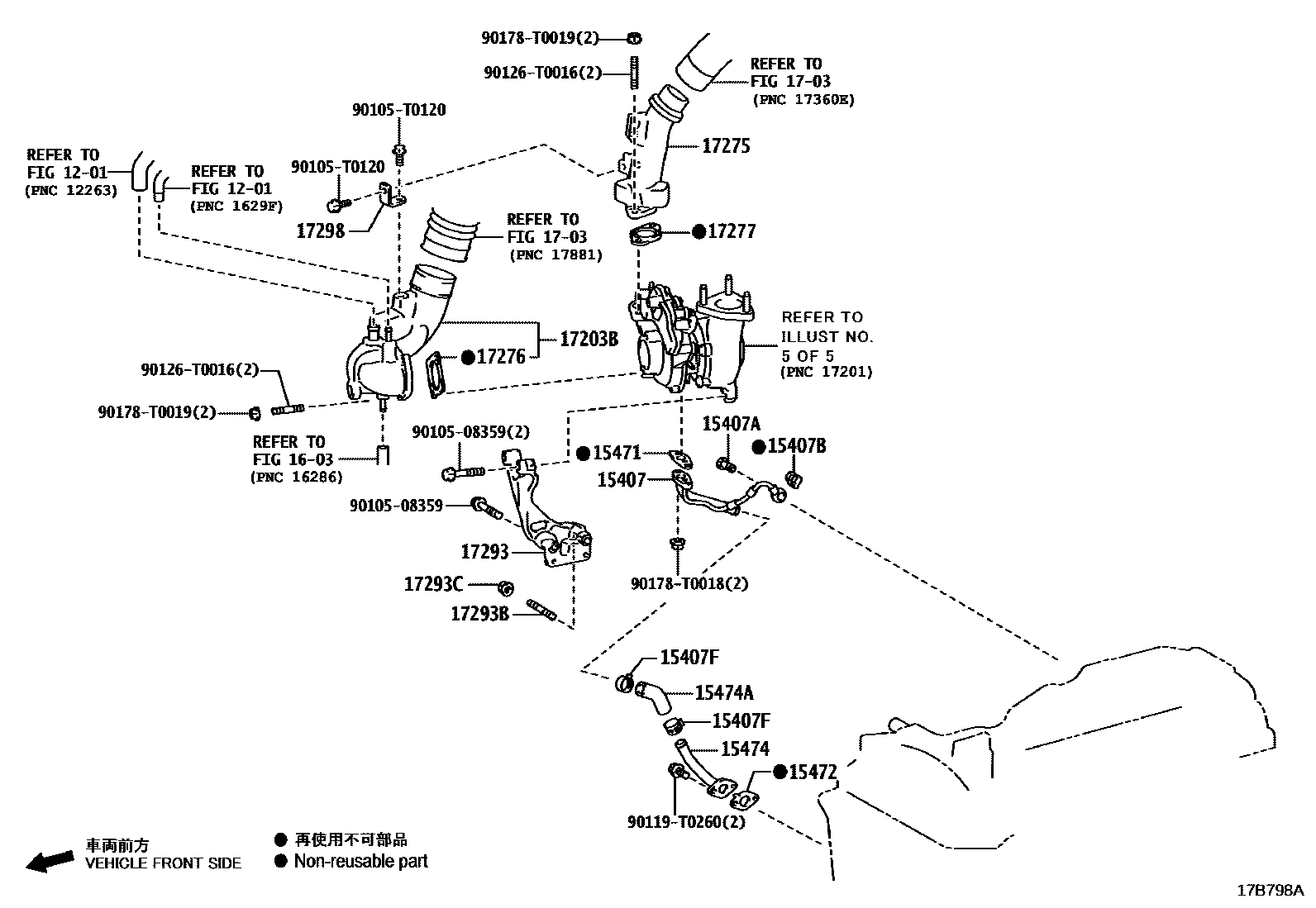

0001 1COMPRESSOR INLET ELBOW 0002 1INTAKE MANIFOLD 0003 1EXHAUST MANIFOLD 0004 1EXHAUST MANIFOLD CONVERTER 0005 1TURBOCHARGER

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-0E020i2GDFTV..GUN125202108-202207

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-T0004i2GDFTV..GUN125202108-202207

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90430-T0006i2GDFTV..GUN125202108-202207

15407FCLAMP OR CLIP, OIL HOSE

main96137-42501×2i2GDFTV..GUN125202108-202207

15471GASKET, TURBO OIL INLET

main15471-0E010i2GDFTV..GUN125202108-202207

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-0E010i2GDFTV..GUN125202108-202207

15474PIPE, TURBO OIL OUTLET

main15474-0E010i2GDFTV..GUN125202108-202207

15474AHOSE, TURBO OIL OUTLET

main15491-0E010i2GDFTV..GUN125202108-202207

1703AIR CLEANER

→ Go to FIG 17-03

17203BELBOW SUB-ASSY, COMPRESSOR INLET

main17203-0E010i2GDFTV..GUN125202108-202207

17275ELBOW, COMPRESSOR OUTLET

main17275-0E050i2GDFTV..GUN125202108-202207

17276GASKET, COMPRESSOR INLET

main17276-0E010i2GDFTV..GUN125202108-202207

17277GASKET, COMPRESSOR OUTLET

main17277-0E030i2GDFTV..GUN125202108-202207

17293STAY, TURBOCHARGER

main17293-0E040i2GDFTV..GUN125202108-202207

17293BBOLT(FOR TURBOCHARGER STAY)

main92122-80855i2GDFTV..GUN125202108-202207

17293CNUT(FOR TURBOCHARGER STAY)

main90178-T0019i2GDFTV..GUN125202110-202207

main94151-80800i2GDFTV..GUN125202108-202110

17298STAY, COMPRESSOR ELBOW

main17298-0E010i2GDFTV..GUN125202108-202207

9010508359

main90105-08359

90105T0120

main90105-T0120

90119T0260

main90119-T0260

90126T0016

main90126-T0016

90178T0018

main90178-T0018

90178T0019

main90178-T0019

23 parts on this diagram · 5 diagrams in section
