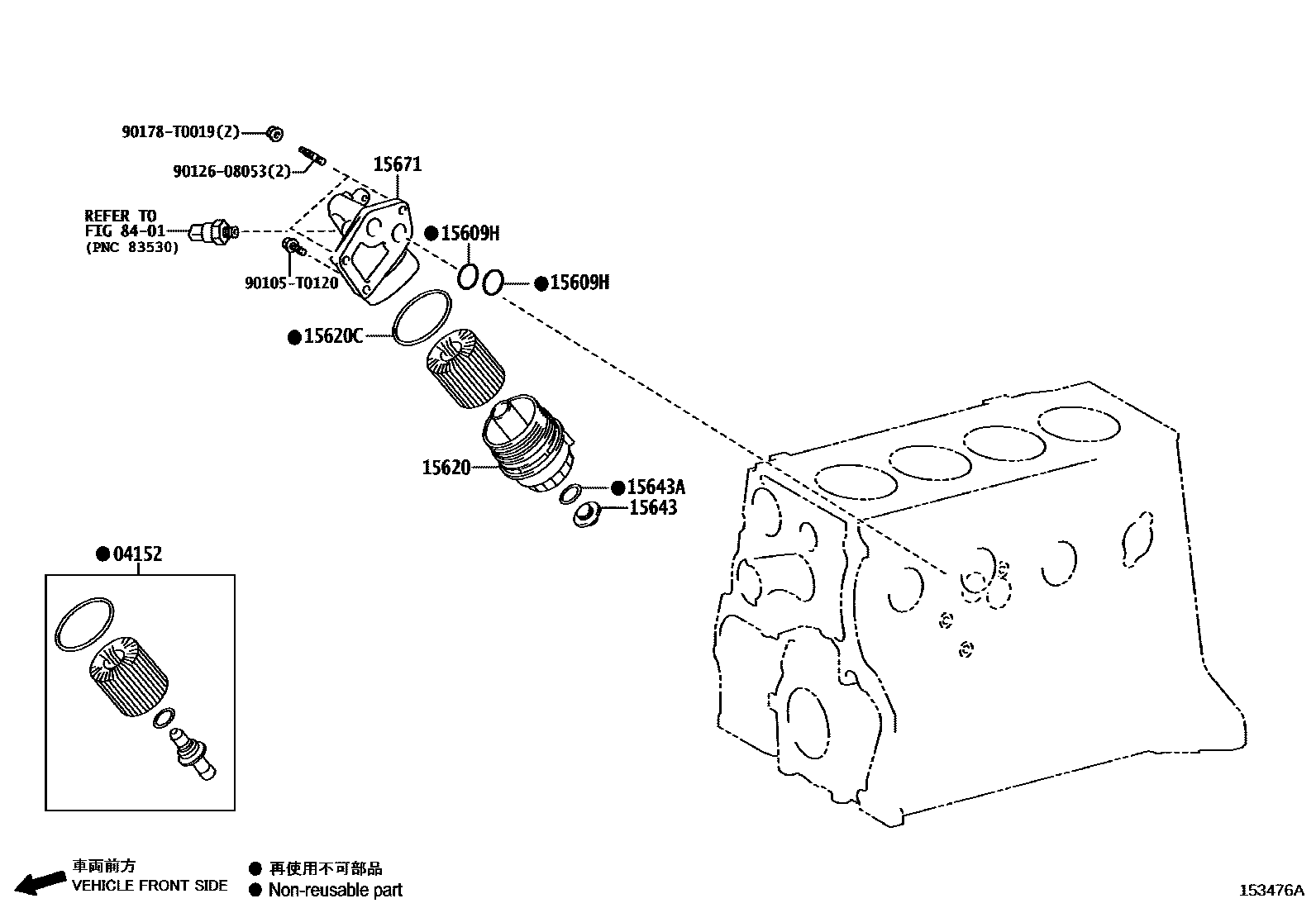

OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-38010i2GDFTV..GUN125202108-202207

15609HRING, O(FOR OIL FILTER BRACKET)

main90301-T0046i2GDFTV..GUN125202108-202207

15620CAP ASSY, OIL FILTER

main15620-31050i2GDFTV..GUN125202108-202207

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i2GDFTV..GUN125202108-202207

15643PLUG, OIL FILTER DRAIN

main15643-31050i2GDFTV..GUN125202108-202207

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i2GDFTV..GUN125202108-202207

15671BRACKET, OIL FILTER

main15671-11010i2GDFTV..GUN125202108-202207

sub15671-35010

8401

90105T0120

main90105-T0120

9012608053

main90126-08053

90178T0019

main90178-T0019

11 parts on this diagram · 1 diagram in section
