STANDARD TOOL

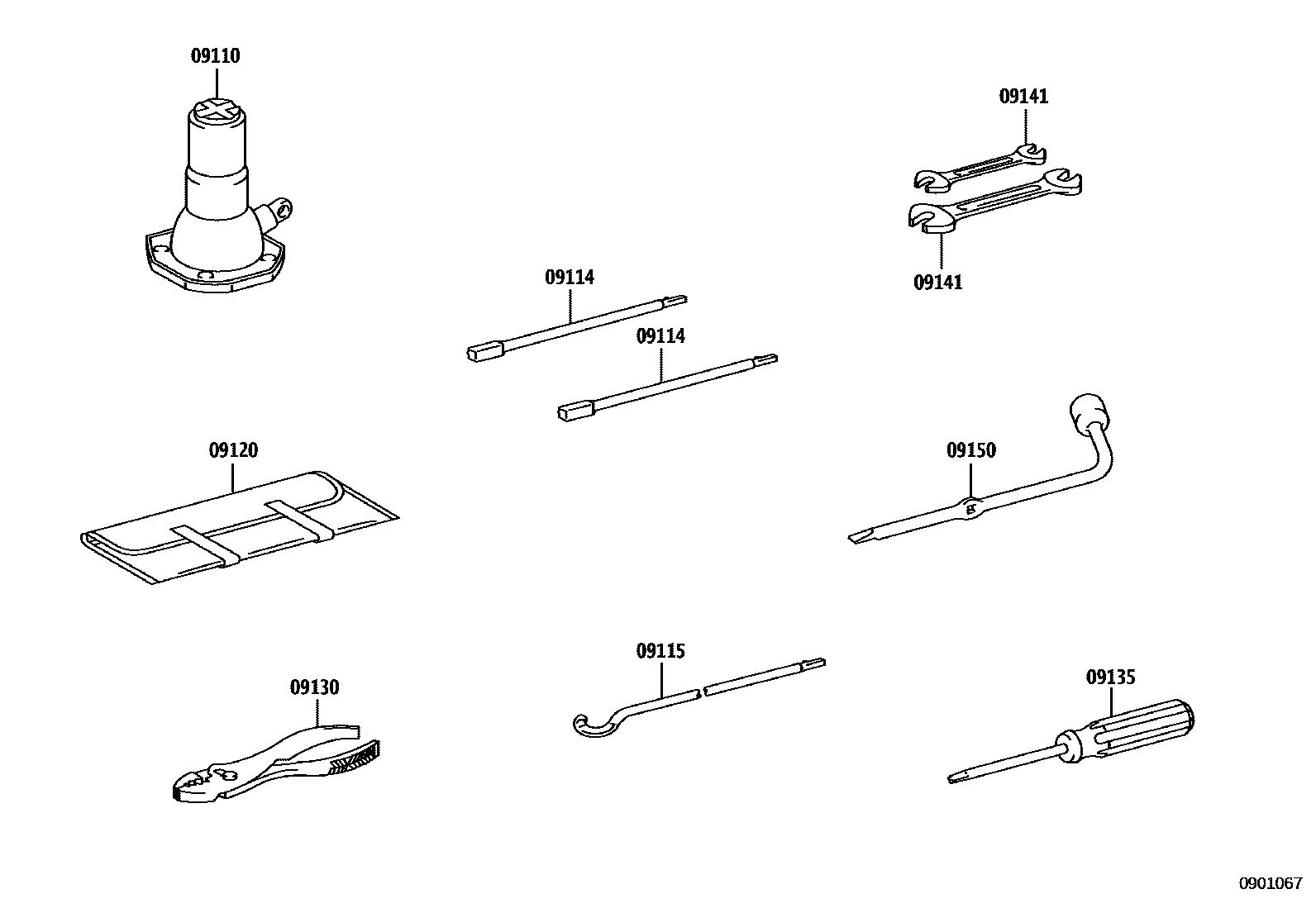

Parts diagram

09110JACK ASSY

main09111-0K161i202108-202112

main09111-0K162i202201-202207

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0K150×2i202108-202207

09115ROD SUB-ASSY, JACK HANDLE

main09115-0K170i202108-202207

09120BAG, TOOL

main09120-0K240i202108-202207

09130PLIERS

main90089-99010i202108-202207

09135DRIVER, SCREW

main90089-99009i202108-202207

09141SPANNER

main09141-0K030i202108-202207

main09141-0K040i202108-202207

09150WRENCH, HUB NUT BOX

main09150-0K010i202108-202207

8 parts on this diagram · 1 diagram in section
