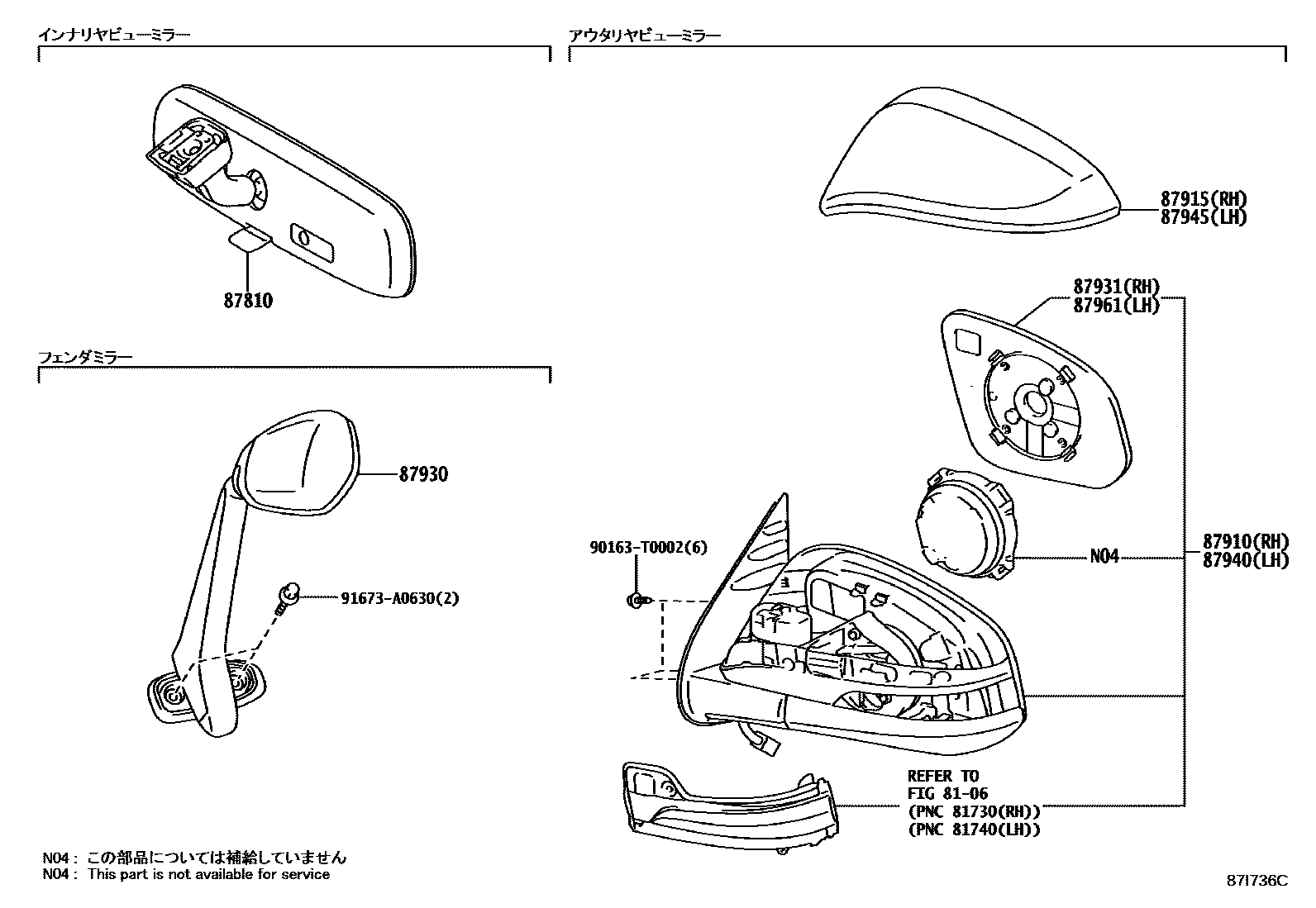

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-06041iGUN125202006-202108

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0K722iGUN125..Z202006-202008

main87910-0K723iGUN125..Z202009-202102

main87910-0K832iGUN125..X202006-202102

main87910-0KP00iGUN125..Z202102-202106

main87910-0KP01iGUN125..Z202106-202108

main87910-0KP10iGUN125..X202102-202108

87915COVER, OUTER MIRROR, RH

main87915-0K390iGUN125..X202006-202108

main87915-0K400iGUN125..Z202006-202108

87930DEVICE ASSY, FRONT FENDER SIDE VIEW, LH

main87930-0K010-A0iGUN125202006-202108

SUPER WHITE 2,040

main87930-0K010-B0iGUN125202006-202108

SILVER ME.,1D6

main87930-0K010-C0iGUN125202006-202108

ATTITUDE BLACK MC.,218

main87930-0K010-G0iGUN125202006-202108

OXIDE BRONZE ME.,6X1

main87930-0K010-J1iGUN125202006-202108

DK. BLUE MC.,8X8

87931OUTER MIRROR, RH

main87931-0KC80iGUN125..Z202006-202105

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0K702iGUN125..Z202006-202008

main87940-0K703iGUN125..Z202009-202102

main87940-0KF22iGUN125..X202006-202102

main87940-0KP00iGUN125..Z202102-202106

main87940-0KP01iGUN125..Z202106-202108

main87940-0KP10iGUN125..X202102-202108

87945COVER, OUTER MIRROR, LH

main87945-0K390iGUN125..X202006-202108

main87945-0K400iGUN125..Z202006-202108

87961MIRROR OUTER, LH

main87961-0KB40iGUN125..Z202006-202105

90163T0002

main90163-T0002

91673A0630

main91673-A0630

11 parts on this diagram · 1 diagram in section
