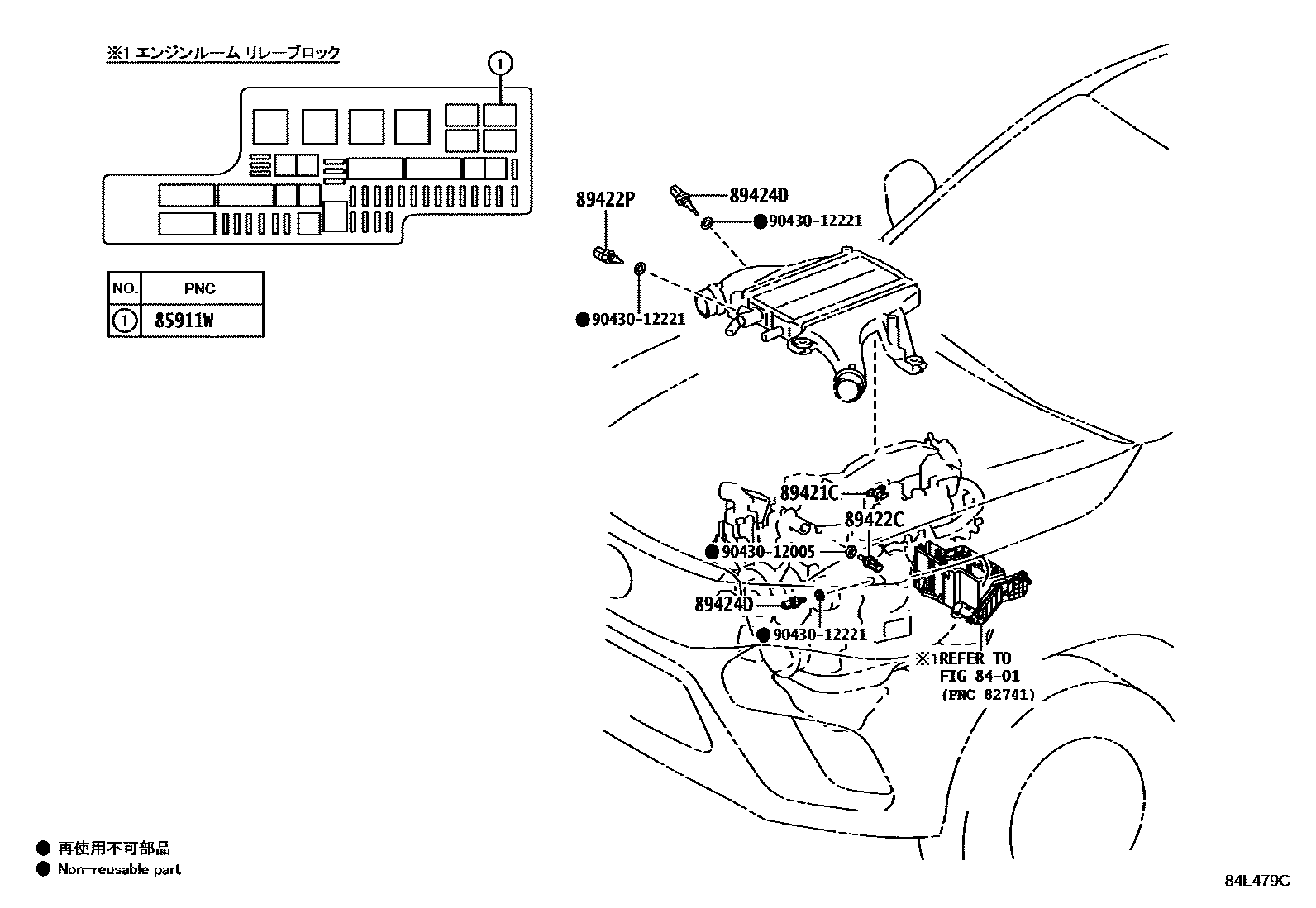

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1�������� 0002 1���

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85911WRELAY, ELECTRONIC DRIVER UNIT

main90987-02027iGUN125202006-202108

main90987-T2001iGUN125202006-202108

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-71030iGUN125202006-202108

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iGUN125202006-202108

89422PSENSOR, WATER TEMPERATURE

main89422-33030iGUN125202006-202108

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60020iGUN125202006-202108

9043012005

main90430-12005

9043012221

main90430-12221

8 parts on this diagram · 2 diagrams in section
