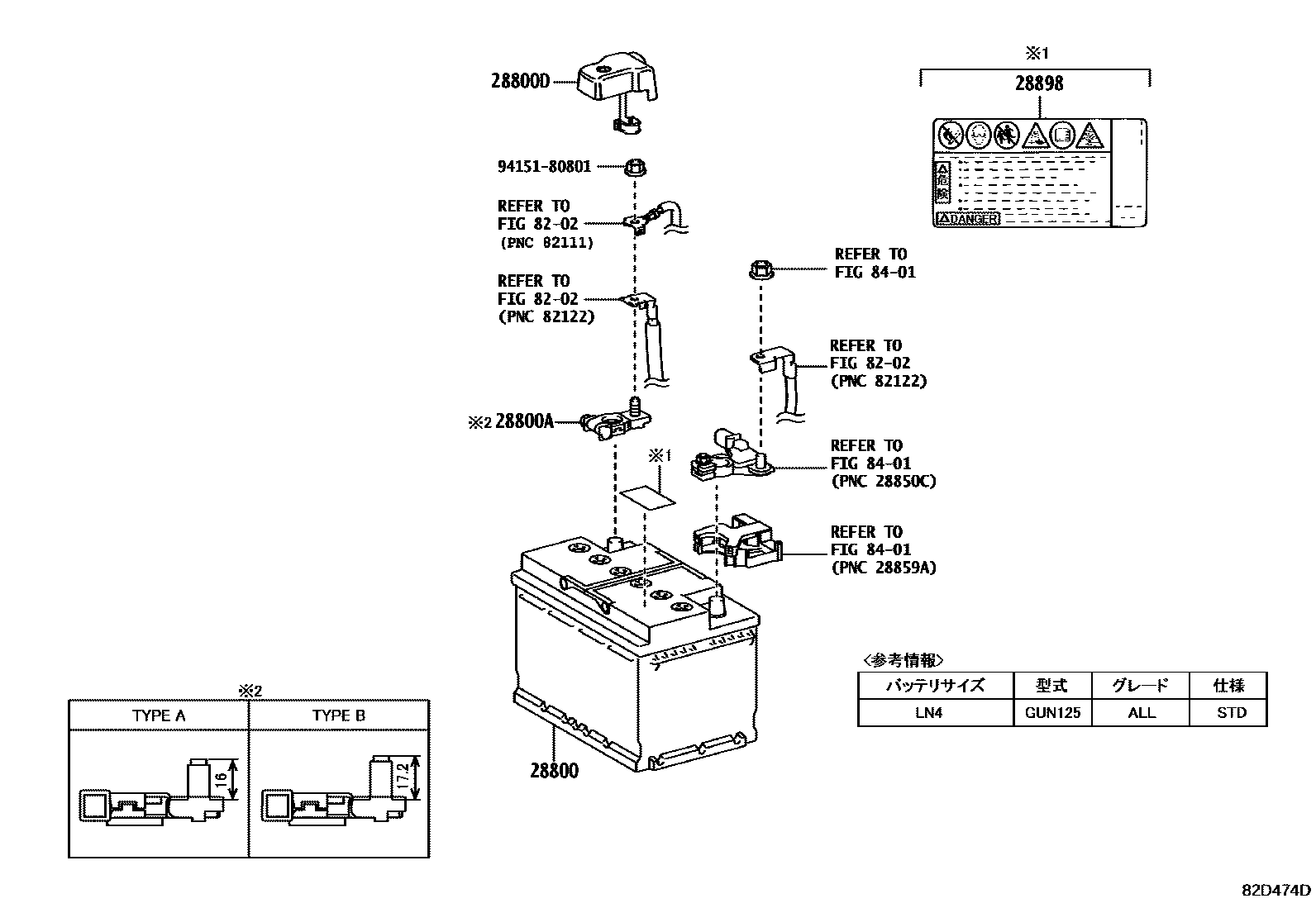

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0L520i2GDFTV..GUN125202006-202108

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GDFTV..GUN125202006-202108

main90982-05061i2GDFTV..GUN125202006-202108

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i2GDFTV..GUN125202006-202108

28898PLATE, BATTERY

main28897-50020i2GDFTV..GUN125202006-202108

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

7 parts on this diagram · 1 diagram in section
