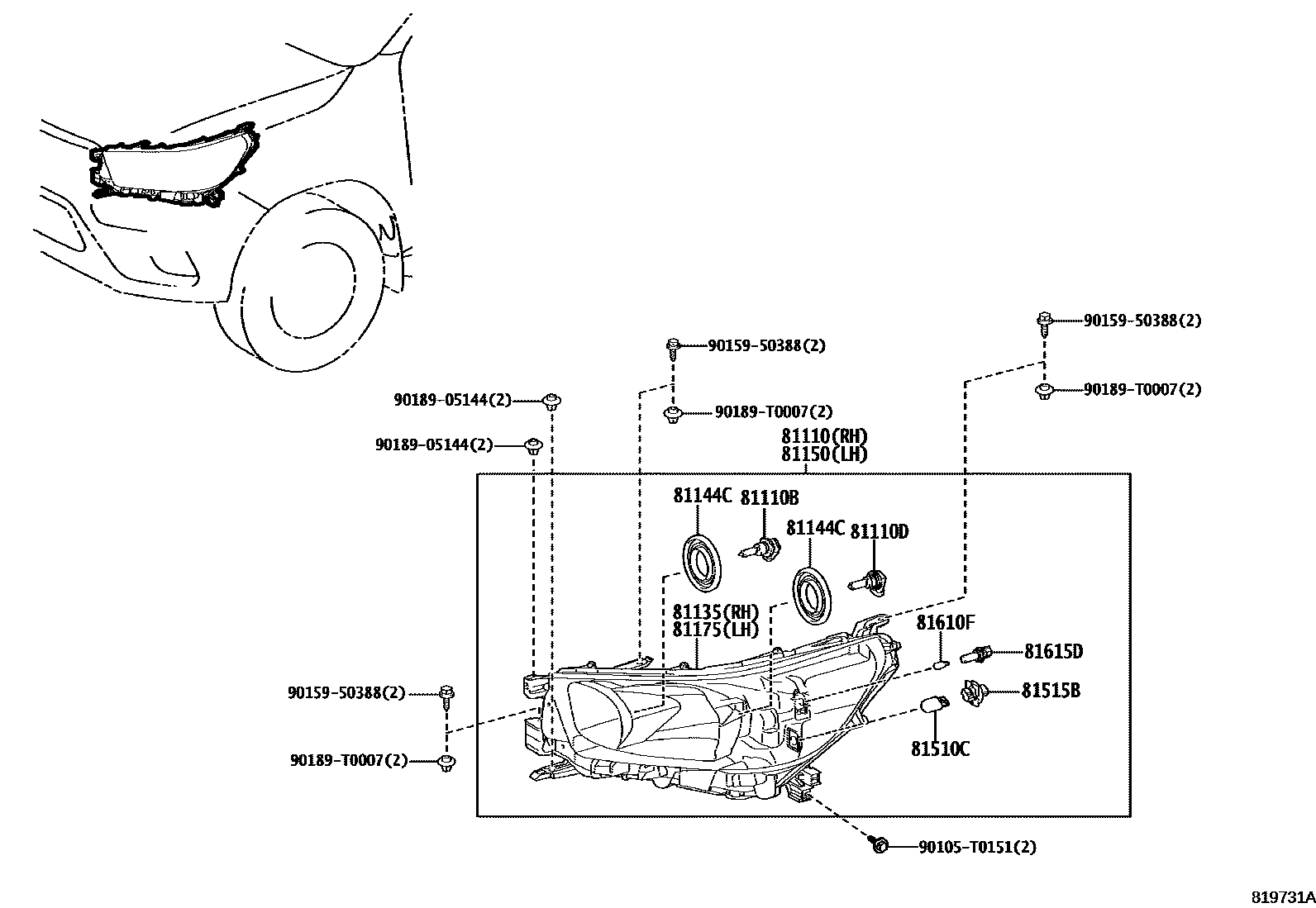

HEADLAMP

0001 1������������� 0002 1LED��������

81110HEADLAMP ASSY, RH

main81110-0KE80iGUN125..Z202006-202010

main81110-0KJ90iGUN125..X202006-202108

main81110-0KQ60iGUN125..Z202011-202108

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13099×2iGUN125..X202006-202108

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075×2iGUN125..X202006-202108

81135UNIT ASSY, HEADLAMP, RH

main81130-0KJ90iGUN125..X202006-202108

main81145-0KE80iGUN125..Z202006-202011

main81145-0KQ60iGUN125..Z202011-202108

81144CCOVER, HEADLAMP SOCKET

main90075-65006×4iGUN125..X202006-202108

81150HEADLAMP ASSY, LH

main81150-0KE80iGUN125..Z202006-202010

main81150-0KJ90iGUN125..X202006-202108

main81150-0KQ60iGUN125..Z202011-202108

81175UNIT ASSY, HEADLAMP, LH

main81170-0KJ90iGUN125..X202006-202108

main81185-0KE80iGUN125..Z202006-202011

main81185-0KQ60iGUN125..Z202011-202108

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iGUN125..X202006-202108

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iGUN125..X202006-202108

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069×2iGUN125..X202006-202108

81615DSOCKET, CLEARANCE LAMP

main90075-60089×2iGUN125..X202006-202108

90105T0151

main90105-T0151

9015950388

main90159-50388

9018905144

main90189-05144

90189T0007

main90189-T0007

15 parts on this diagram · 2 diagrams in section
