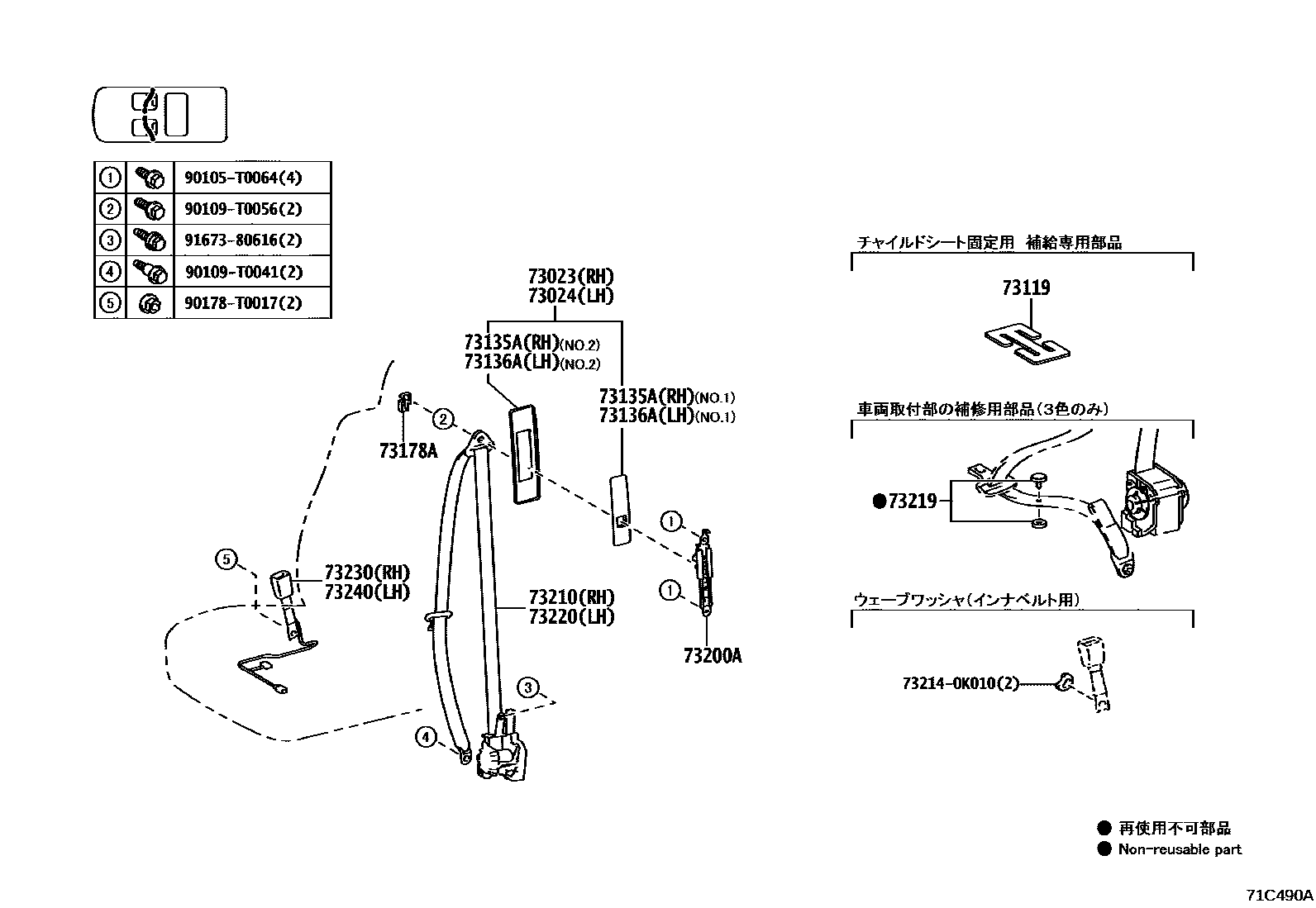

SEAT BELT

0001 1������� 0002 1�����

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-KK010-B0iGUN125202006-202108

LT.GRAY,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73023-KK010-B0iGUN125202006-202108

LT.GRAY,TRIM2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iGUN125202006-202108

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73135-KK010-B0iGUN125202006-202108

main73135-KK020-B0iGUN125202006-202108

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73135-KK010-B0iGUN125202006-202108

main73135-KK020-B0iGUN125202006-202108

73178ACAP, SEAT BELT ANCHOR COVER

main73178-KK010-B0×2iGUN125202006-202108

LT.GRAY,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0D051-B2×2iGUN125202006-202108

LT.GRAY,TRIM2#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0K840-C0iGUN125202006-202108

BLACK/GRAY,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iGUN125202006-202108

main73219-33020iGUN125202006-202108

main73219-33030iGUN125202006-202108

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0K550-C0iGUN125202006-202108

BLACK/GRAY,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0K860-C0iGUN125..X202006-202108

BLACK,TRIM2#

main73230-0KC20-C0supersedes 73230-0KC10-C0iGUN125..Z202006-202108

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0KA50-C0iGUN125202006-202108

BLACK,TRIM2#

732140K010PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010

90105T0064

main90105-T0064

90109T0041

main90109-T0041

90109T0056

main90109-T0056

90178T0017

main90178-T0017

9167380616

main91673-80616

18 parts on this diagram · 2 diagrams in section
