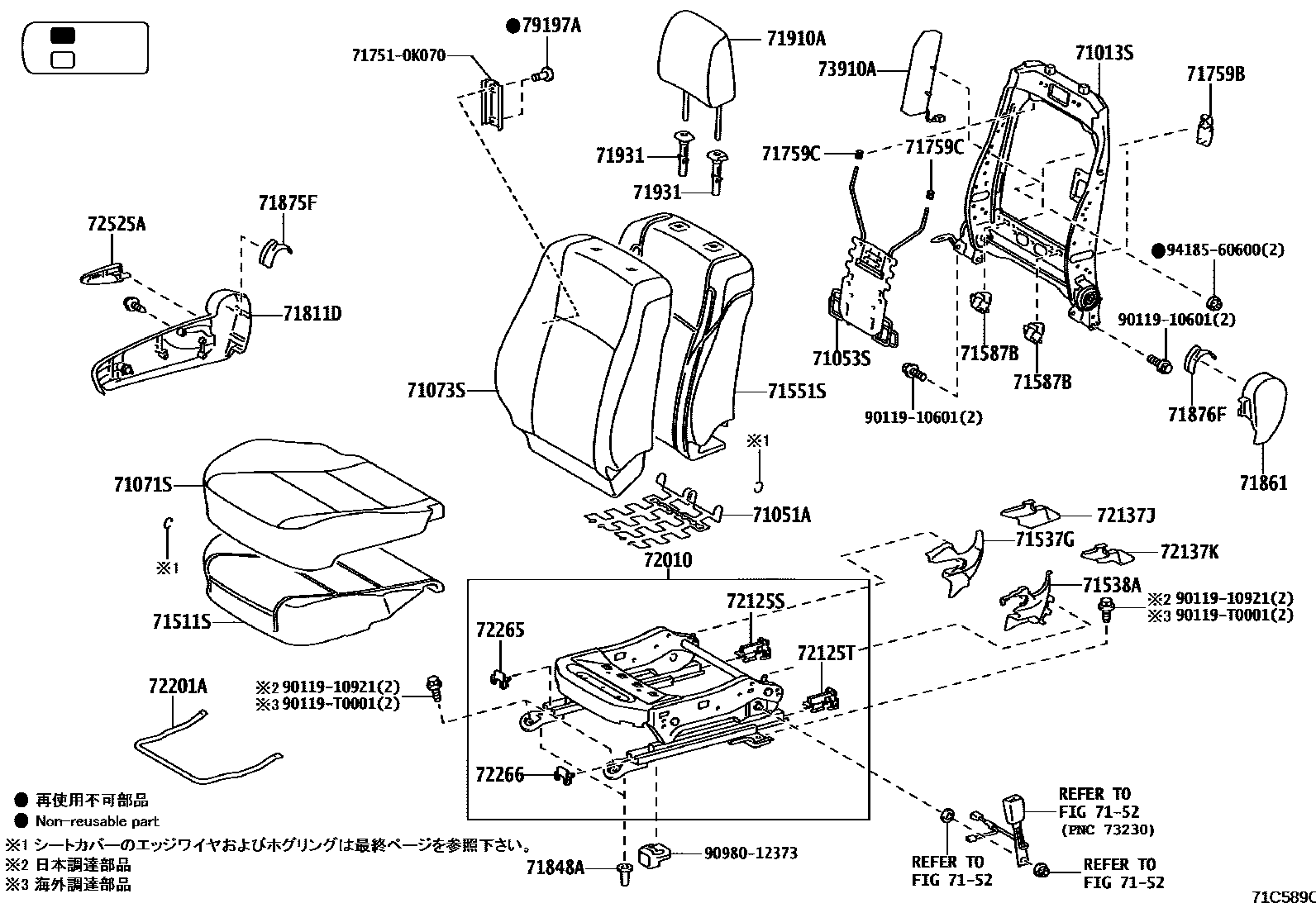

SEAT & SEAT TRACK
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71053SSPRING SUB-ASSY, FRONT SEATBACK, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
7152SEAT BELT
71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
BLACK,TRIM2#
BLACK,TRIM2#
71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
BLACK,TRIM2#
BLACK,TRIM2#
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587BPROTECTOR, FRONT SEATBACK EDGE
71759BHOOK, FRONT SEATBACK
71759CHOOK, FRONT SEATBACK, NO.1
71811DSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM2#
71848ACAP, SEAT ADJUSTER COVER, RH
71861SHIELD, FRONT SEAT CUSHION, INNER RH
BLACK,TRIM2#
BLACK,TRIM2#
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
BLACK,TRIM2#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
72010ADJUSTER ASSY, FRONT SEAT, RH
72125SCOVER, FRONT SEAT TRACK, UPPER REAR RH
72125TCOVER, FRONT SEAT TRACK, UPPER REAR LH
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
BLACK,TRIM2#
72137KCOVER, FRONT SEAT TRACK, RH REAR INNER
BLACK,TRIM2#
72201AHANDLE SUB-ASSY, SEAT TRACK RH
72265COVER, SEAT TRACK UPPER RAIL, RH
72266COVER, SEAT TRACK UPPER RAIL, LH
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
BLACK,TRIM2#
BLACK,TRIM2#
73910AAIRBAG ASSY, FRONT SEAT, RH
79197ARIVET
717510K070HANGER, SEAT COVER
main71751-0K070
9011910601
main90119-10601
9011910921
main90119-10921
90119T0001
main90119-T0001
9098012373
main90980-12373
9418560600
main94185-60600
37 parts on this diagram · 7 diagrams in section
