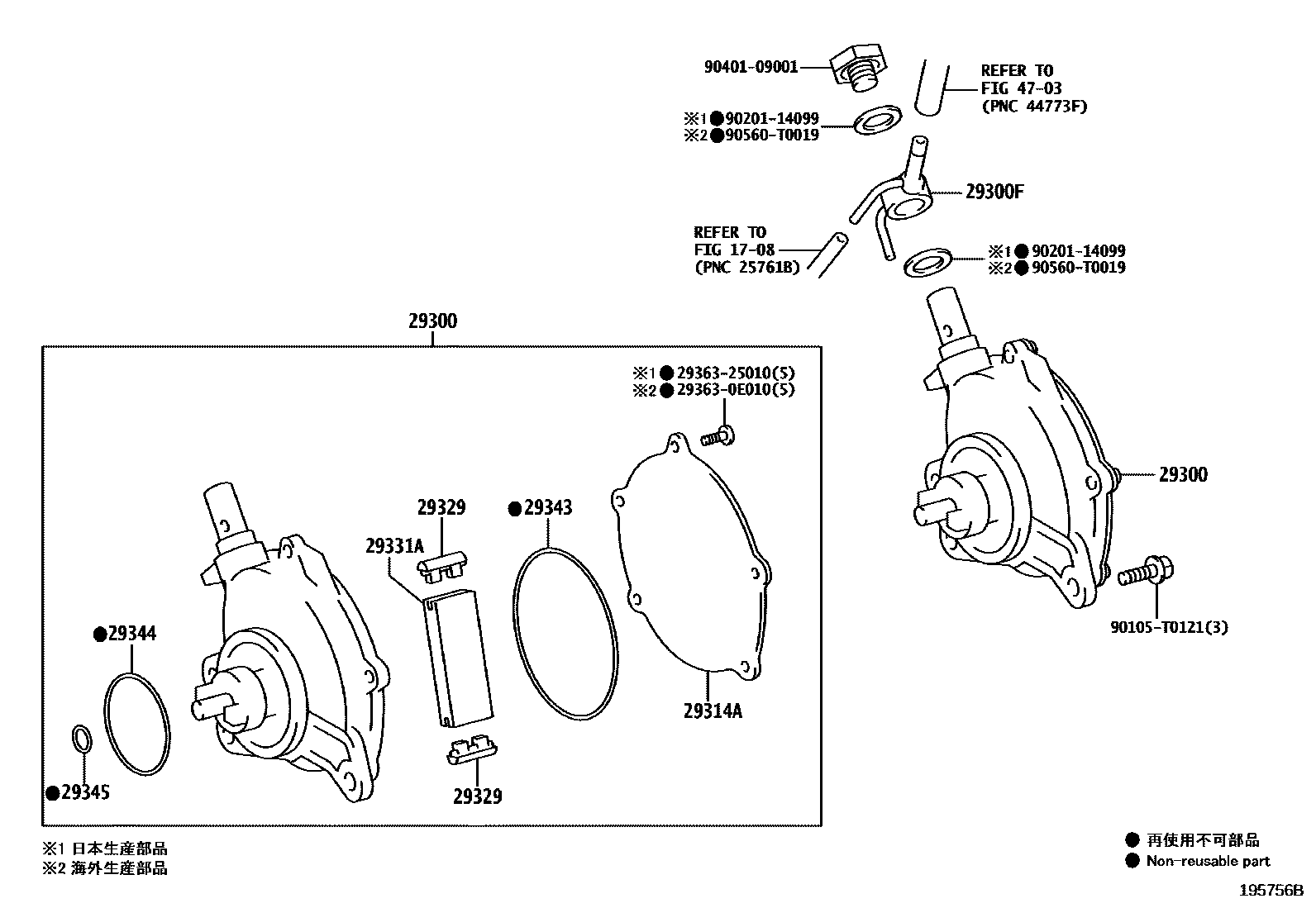

VACUUM PUMP

1708VACUUM PIPING

→ Go to FIG 17-08

29300PUMP ASSY, VACUUM

main29300-0E011i2GDFTV..GUN125202006-202108

main29300-11021i2GDFTV..GUN125202006-202108

29300FUNION

main90405-09194i2GDFTV..GUN125202006-202108

main90405-T0001i2GDFTV..GUN125202006-202108

29314ACOVER, END

main29314-0E010i2GDFTV..GUN125202006-202108

main29314-11020i2GDFTV..GUN125202006-202108

29329CAP, VACUUM PUMP VANE

main29329-0E010×2i2GDFTV..GUN125202006-202108

main29329-37010×2i2GDFTV..GUN125202006-202108

29331AVANE, VACUUM PUMP

main29331-0E010i2GDFTV..GUN125202006-202108

main29331-11020i2GDFTV..GUN125202006-202108

29343RING, O VACUUM PUMP, NO.1

main29343-0E010i2GDFTV..GUN125202006-202108

main29343-11020i2GDFTV..GUN125202006-202108

29344RING, O VACUUM PUMP, NO.2

main29344-0E010i2GDFTV..GUN125202006-202108

main29344-22011i2GDFTV..GUN125202006-202108

29345RING, O VACUUM PUMP, NO.3

main29345-0E010i2GDFTV..GUN125202006-202108

main29345-22011i2GDFTV..GUN125202006-202108

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

293630E010SCREW, HOLLOW VACUUM PUMP

main29363-0E010

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

90105T0121

main90105-T0121

9020114099

main90201-14099

9040109001

main90401-09001

90560T0019

main90560-T0019

16 parts on this diagram · 1 diagram in section
