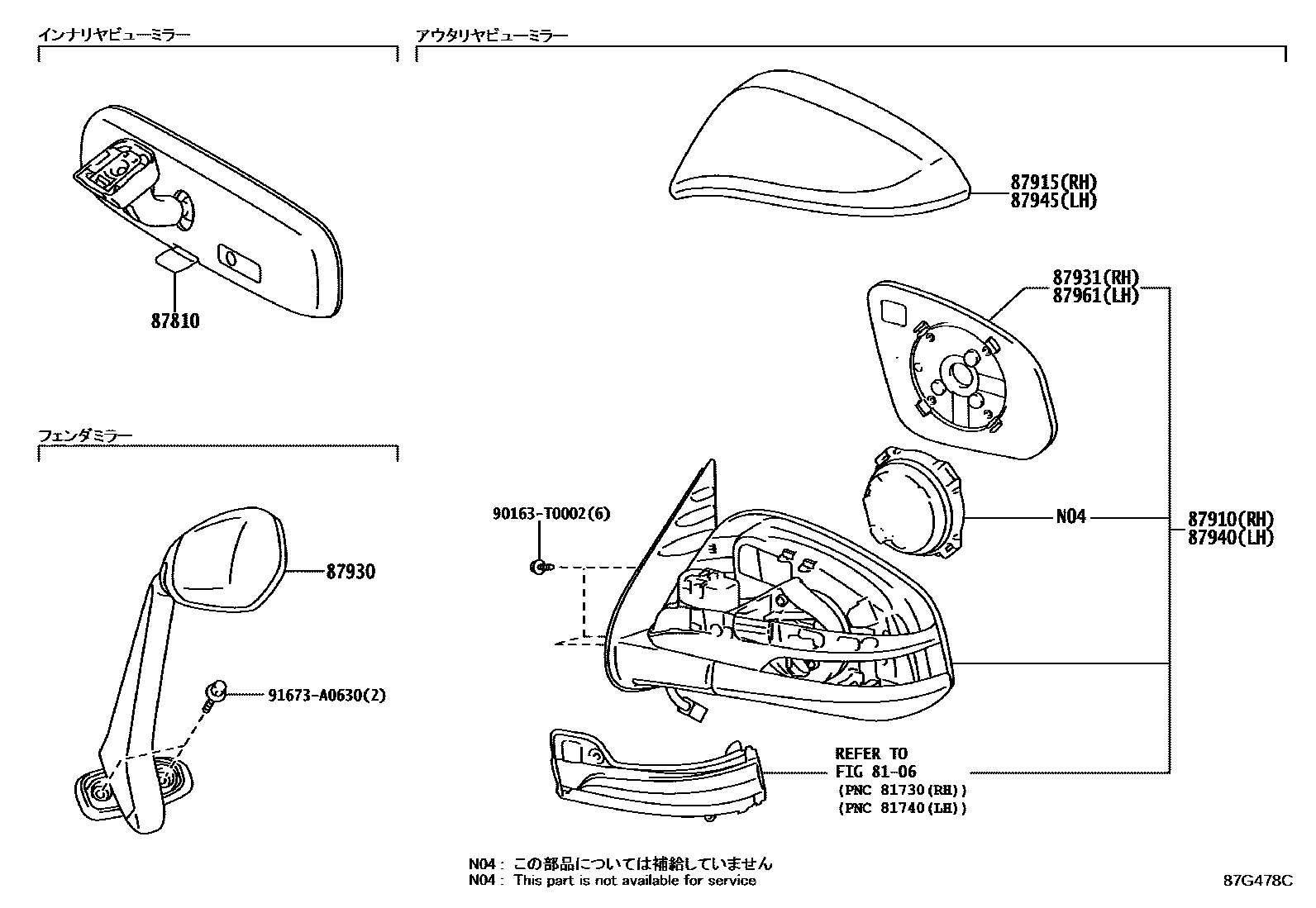

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-06041iGUN125201708-202005

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0K722iGUN125..Z201708-202005

main87910-0K832iGUN125..X201708-201905

87915COVER, OUTER MIRROR, RH

main87915-0K390iGUN125..X201905-202005

main87915-0K400iGUN125..Z201708-201905

main87915-0K420-C0iGUN125..Z201811-202005

87930DEVICE ASSY, FRONT FENDER SIDE VIEW, LH

main87930-0K010-A0iGUN125201708-202005

SUPER WHITE 2,040

main87930-0K010-B0iGUN125201708-202005

SILVER ME.,1D6

main87930-0K010-C0iGUN125201708-202005

ATTITUDE BLACK MC.,218

main87930-0K010-D0iGUN125201708-202005

CRIMSON SPARK RED ME.,3T6

main87930-0K010-J0iGUN125201708-202005

NEBULA BLUE ME.,8X2

87931OUTER MIRROR, RH

main87931-0KC80iGUN125..X201708-201710

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0K702iGUN125..Z201708-202005

main87940-0KF22iGUN125..X201708-201905

87945COVER, OUTER MIRROR, LH

main87945-0K390iGUN125..X201708-201905

main87945-0K400iGUN125..Z201905-202005

main87945-0K420-C0iGUN125..Z201811-202005

87961MIRROR OUTER, LH

main87961-0KB40iGUN125..X201708-201710

90163T0002

main90163-T0002

91673A0630

main91673-A0630

11 parts on this diagram · 1 diagram in section
