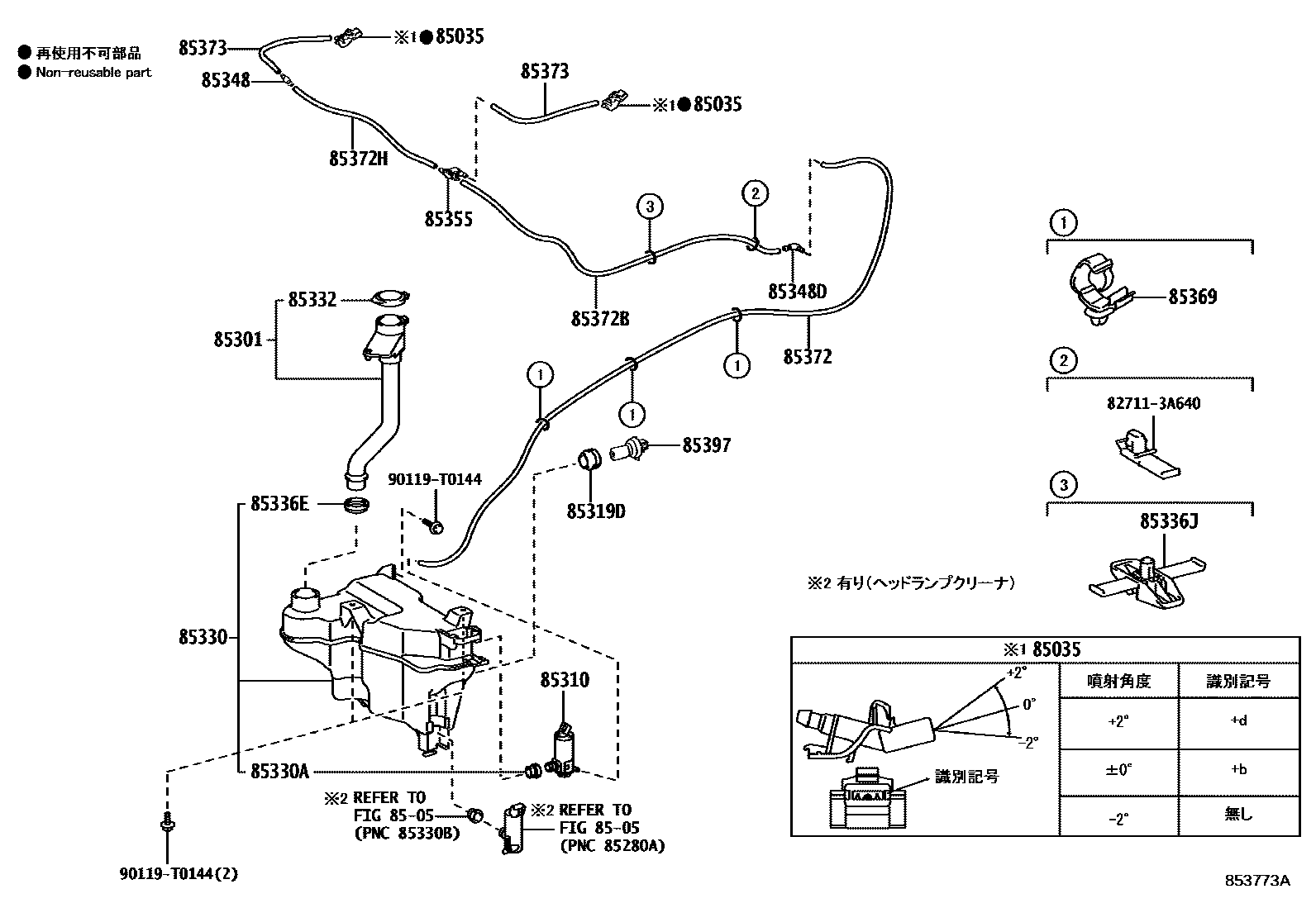

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0K070×2iGUN125201708-202005

main85381-0K080×2iGUN125201708-202005

main85381-0K090×2iGUN125201708-202005

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-0K110iGUN125201708-202005

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0K021iGUN125201708-201709

main85330-33070iGUN125201710-202005

85319DPACKING, FRONT WASHER

main85319-33230iGUN125201708-202005

85330JAR ASSY, WINDSHIELD WASHER

main85315-71040supersedes 85355-71030iGUN125..X201708-202005

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGUN125201708-202005

85332CAP, WINDSHIELD WASHER JAR

main85316-YE011iGUN125201708-202005

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iGUN125201708-202005

85336JPROTECTOR, WASHER JAR

main85372-0K020iGUN125201708-202005

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-06101iGUN125201708-202005

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85377-0D040iGUN125201708-202005

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iGUN125201708-202005

85369CLAMP

main82711-0K070×3iGUN125201708-202005

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33278iGUN125201708-202005

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33296iGUN125201708-202005

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-33258iGUN125201708-202005

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33251×2iGUN125201708-202005

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iGUN125201708-202005

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

90119T0144

main90119-T0144

21 parts on this diagram · 1 diagram in section
