AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0KF70iGUN125201708-202005

89173ASENSOR, AIRBAG, FRONT RH

main89173-09B20iGUN125201708-202005

89174ASENSOR, AIRBAG, FRONT LH

main89173-09B20iGUN125201708-202005

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-0K040iGUN125201708-202005

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0K050iGUN125201708-202005

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0K050iGUN125201708-202005

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-0K040iGUN125201708-202005

90105T0057

main90105-T0057

90119T0255

main90119-T0255

90178T0012

main90178-T0012

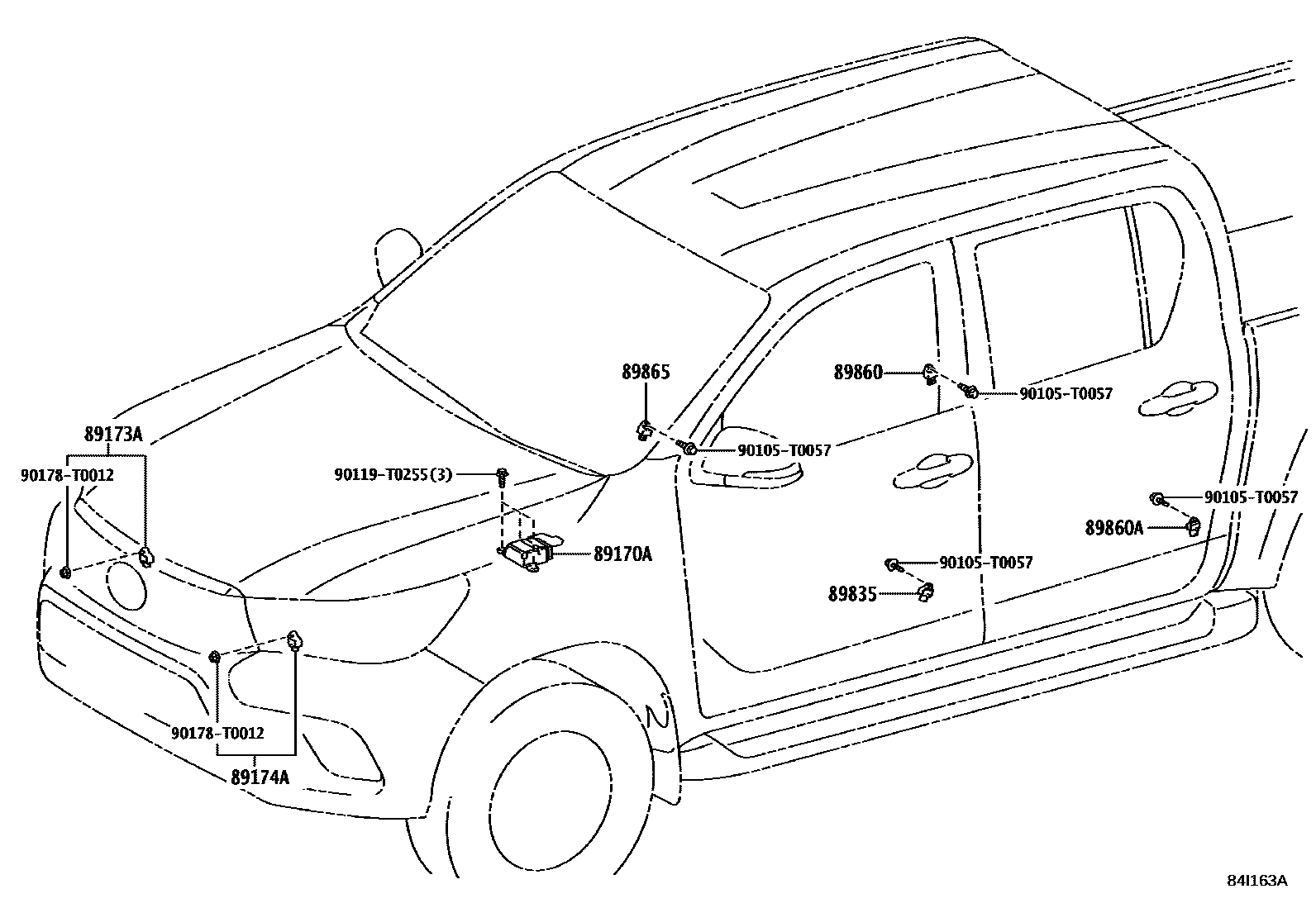

10 parts on this diagram · 1 diagram in section
