METER

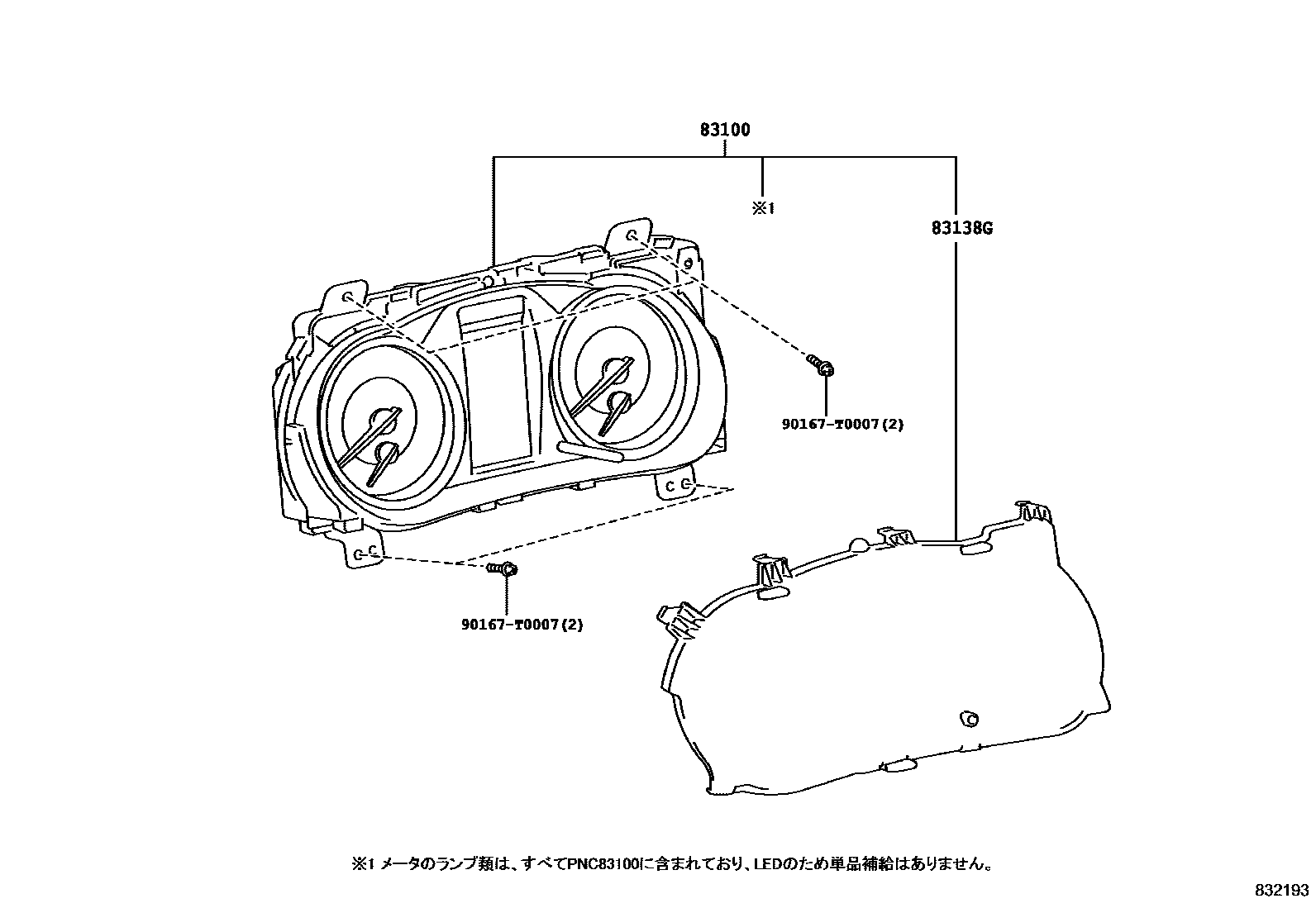

Parts diagram

83100METER ASSY, COMBINATION

main83800-FCX70i201708-201712

main83800-FCX71i201806-201905

main83800-FCX80i201708-201712

main83800-FCX81i201806-201905

main83800-FD740i201712-201806

main83800-FD750i201712-201806

main83800-FCX82supersedes 83800-FCX72i201905-202005

main83800-FD760i201811-201905

main83800-FD761supersedes 83800-FCX82i201905-202005

83138GGLASS, COMBINATION METER

main83852-FBJ30i201708-202005

main83852-FBL60i201708-202005

90167T0007

main90167-T0007

3 parts on this diagram · 1 diagram in section
