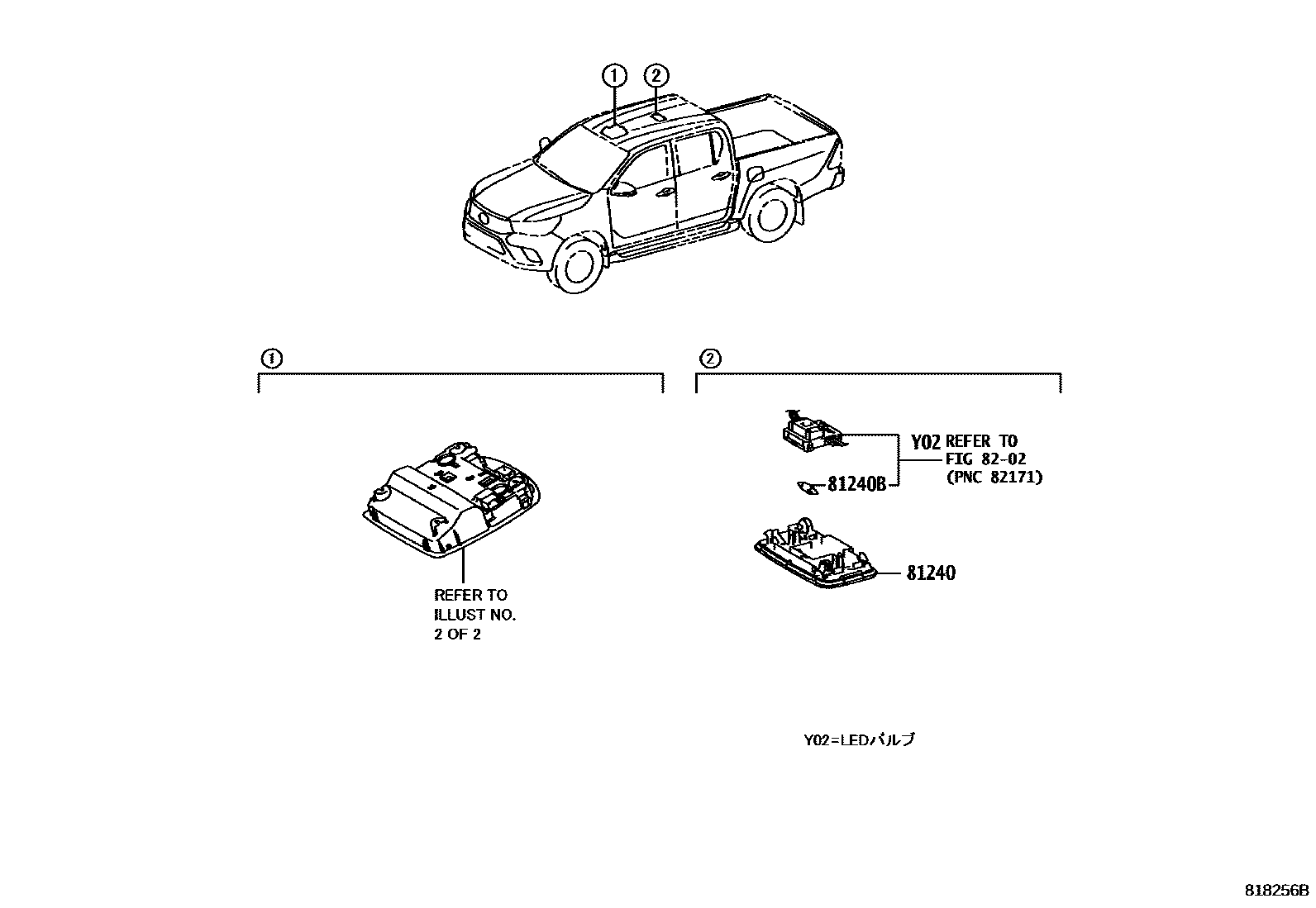

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-0K070-B0iGUN125..Z201708-201802

LT.GRAY,TRIM2#,4#

main81240-0K070-B0iGUN125..X201708-202005

LT.GRAY,TRIM2#

main81240-0K070-B0iGUN125..Z201802-202005

LT.GRAY,TRIM20,4#

main81240-0K070-C0iGUN125..Z201802-202005

BLACK,TRIM21

81240BBULB, ROOM LAMP, NO.1

main90981-14011iGUN125201708-202005

8202WIRING & CLAMP

→ Go to FIG 82-02

3 parts on this diagram · 2 diagrams in section
