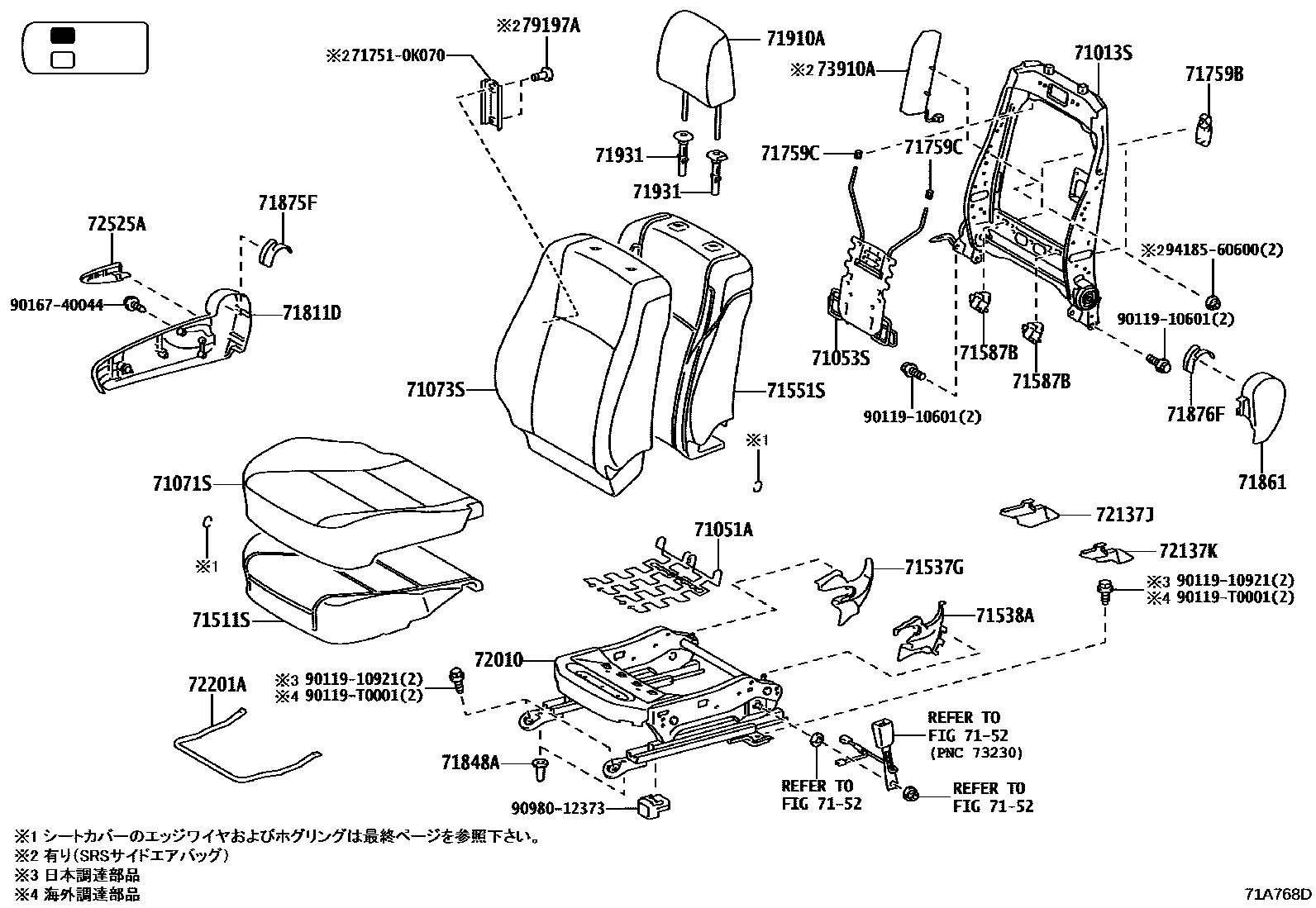

SEAT & SEAT TRACK

0001 1������(�������� 4���) 0002 1������(�������� 6���) 0003 1������(�������) 0004 1������� 0005 1����� 0006 1����� 0007 1�������������� & �������

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-0K400iGUN125..X201708-202005

main71013-0K440supersedes 71013-0K420iGUN125..Z201708-202005

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-06070iGUN125201708-202005

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-0K030iGUN125201708-202005

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-0KW90-E0iGUN125..Z201708-202005

BRONZE,TRIM4#

main71071-0KK60-C2supersedes 71071-0KW40-C0iGUN125..X201708-202005

main71071-F0020-C0supersedes 71071-0KW90-C0iGUN125..Z201708-202005

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-0KJ91-C4supersedes 71073-0KV71-C3iGUN125..X201708-202005

main71073-0KU51-C4supersedes 71073-0KK81-C5iGUN125..Z201708-202005

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-0K590iGUN125..X201708-202005

sub71511-0K591

main71511-0K140supersedes 71511-0K130iGUN125..Z201708-201904

main71511-0K141supersedes 71511-0K131iGUN125..Z201905-202005

7152

71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-02170-C0iGUN125..X201708-202005

BLACK,TRIM2#

main71537-02300-C0iGUN125..Z201708-202005

BLACK,TRIM2#,4#

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-02120-C0iGUN125..X201708-202005

BLACK,TRIM2#

main71538-02230-C0iGUN125..Z201708-202005

BLACK,TRIM2#,4#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-0K270iGUN125..Z201708-202005

main71551-0K220supersedes 71551-0K230iGUN125..X201708-202005

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-0K030×4iGUN125201708-202005

71759BHOOK, FRONT SEATBACK

main71759-0K140×4iGUN125..X201708-202005

71759CHOOK, FRONT SEATBACK, NO.1

main71759-0K060×4iGUN125201708-202005

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-0K140-C0supersedes 71811-0K130-C0iGUN125..Z201708-202005

main71811-0K240-C0supersedes 71811-0K120-C0iGUN125..X201708-202005

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-47010×2iGUN125201708-202005

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-0K210-C0iGUN125..X201708-202005

BLACK,TRIM2#

main71861-0K220-C0iGUN125..Z201708-202005

BLACK,TRIM2#,4#

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-0K120-C0iGUN125..Z201708-202005

BLACK,TRIM2#,4#

main71875-0K130-C0supersedes 71875-0K120-C0iGUN125..Z201708-202005

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71876-0K120-C0iGUN125..Z201708-202005

BLACK,TRIM2#,4#

main71876-0K130-C0supersedes 71876-0K120-C0iGUN125..Z201708-202005

71910AHEADREST ASSY, FRONT SEAT

main71910-0KB60-C2×2iGUN125..X201708-202005

BLACK,TRIM2#

main71910-0KB80-E0×2iGUN125..Z201708-202005

BRONZE,TRIM4#

main71910-0KC00-C2×2supersedes 71910-0KB80-C0iGUN125..Z201708-202005

71931SUPPORT, FRONT SEAT HEADREST

main71930-0K050-C0×2iGUN125..Z201708-202005

main71931-0K040-C0×2iGUN125..Z201708-202005

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-0K080iGUN125..X201708-202005

main72010-0K100supersedes 72010-0K090iGUN125..Z201708-202005

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-KK010-C0iGUN125..Z201708-202005

BLACK,TRIM2#,4#

72137KCOVER, FRONT SEAT TRACK, RH REAR INNER

main72157-KK010-C0iGUN125..Z201708-202005

BLACK,TRIM2#,4#

72201AHANDLE SUB-ASSY, SEAT TRACK RH

main72211-0D160iGUN125201708-202005

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-06130-C0iGUN125..Z201708-202005

BLACK,TRIM2#,4#

main72525-0D270-C0iGUN125..X201708-202005

BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-0K050iGUN125201708-202005

79197ARIVET

main79197-0K010×4iGUN125201708-202005

717510K070HANGER, SEAT COVER

main71751-0K070

9011910601

main90119-10601

9011910921

main90119-10921

90119T0001

main90119-T0001

9016740044

main90167-40044

9098012373

main90980-12373

9418560600

main94185-60600

34 parts on this diagram · 7 diagrams in section
