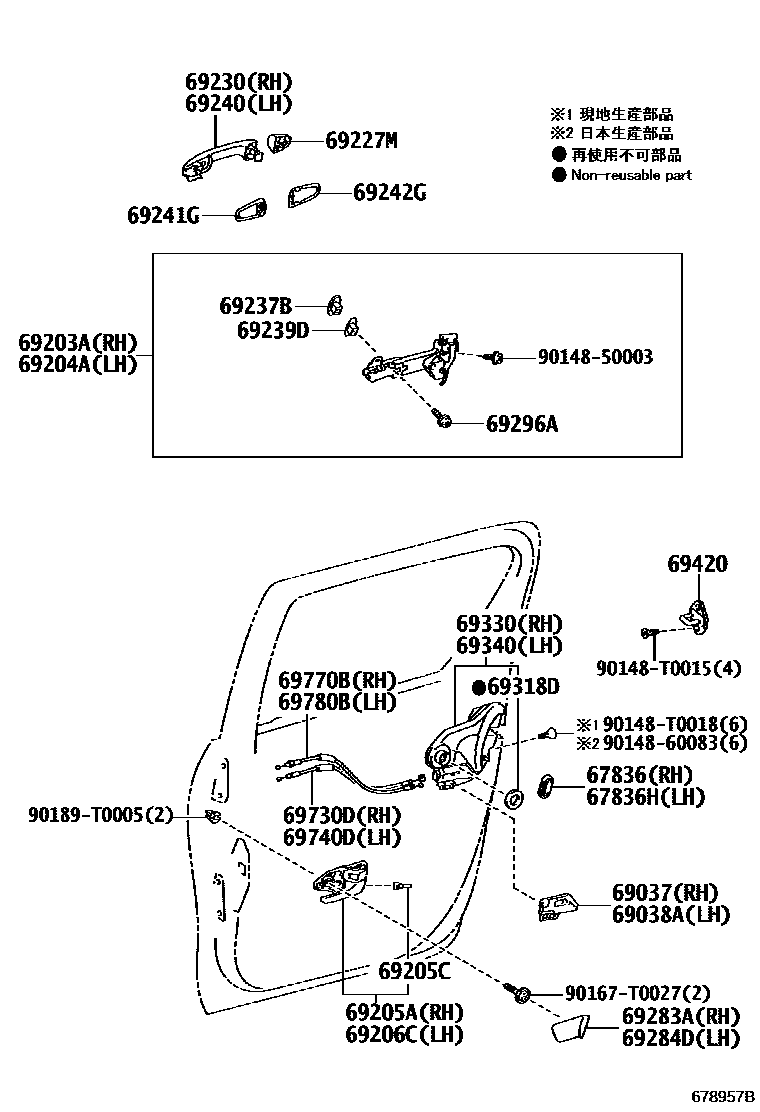

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#,4#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#; BLACK,TRIM2#,4#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#; BLACK,TRIM2#,4#
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014860083
main90148-60083
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
33 parts on this diagram · 1 diagram in section
