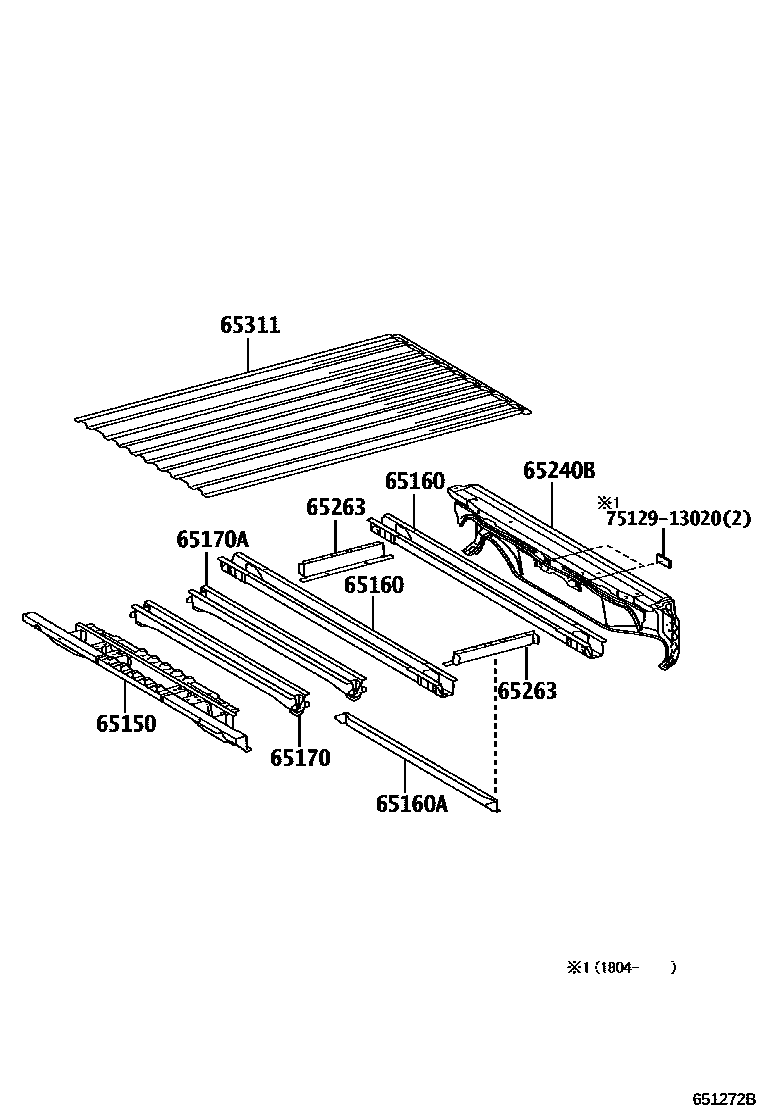

REAR BODY FLOOR & FENDER

65150SILL ASSY, CROSS, NO.1

main65150-KK010iGUN125201708-202005

65160SILL ASSY, CROSS, NO.2

main65160-KK010×2iGUN125201708-202005

65160ASILL ASSY, CROSS, NO.2

main65261-0K011iGUN125201708-202005

65170SILL ASSY, CROSS, NO.2

main65170-KK010iGUN125201708-202005

65170ASILL ASSY, CROSS, NO.3

main65170-KK010iGUN125201708-202005

65240BSILL ASSY, CROSS, NO.9

main65240-KK150iGUN125201708-202005

65263REINFORCEMENT, FLOOR SIDE FRAME

main65263-KK010×2iGUN125201708-202005

65311PANEL, FLOOR, CENTER

main65311-KK010iGUN125201708-202005

7512913020CUSHION, REAR LICENSE PLATE

main75129-13020

9 parts on this diagram · 1 diagram in section
