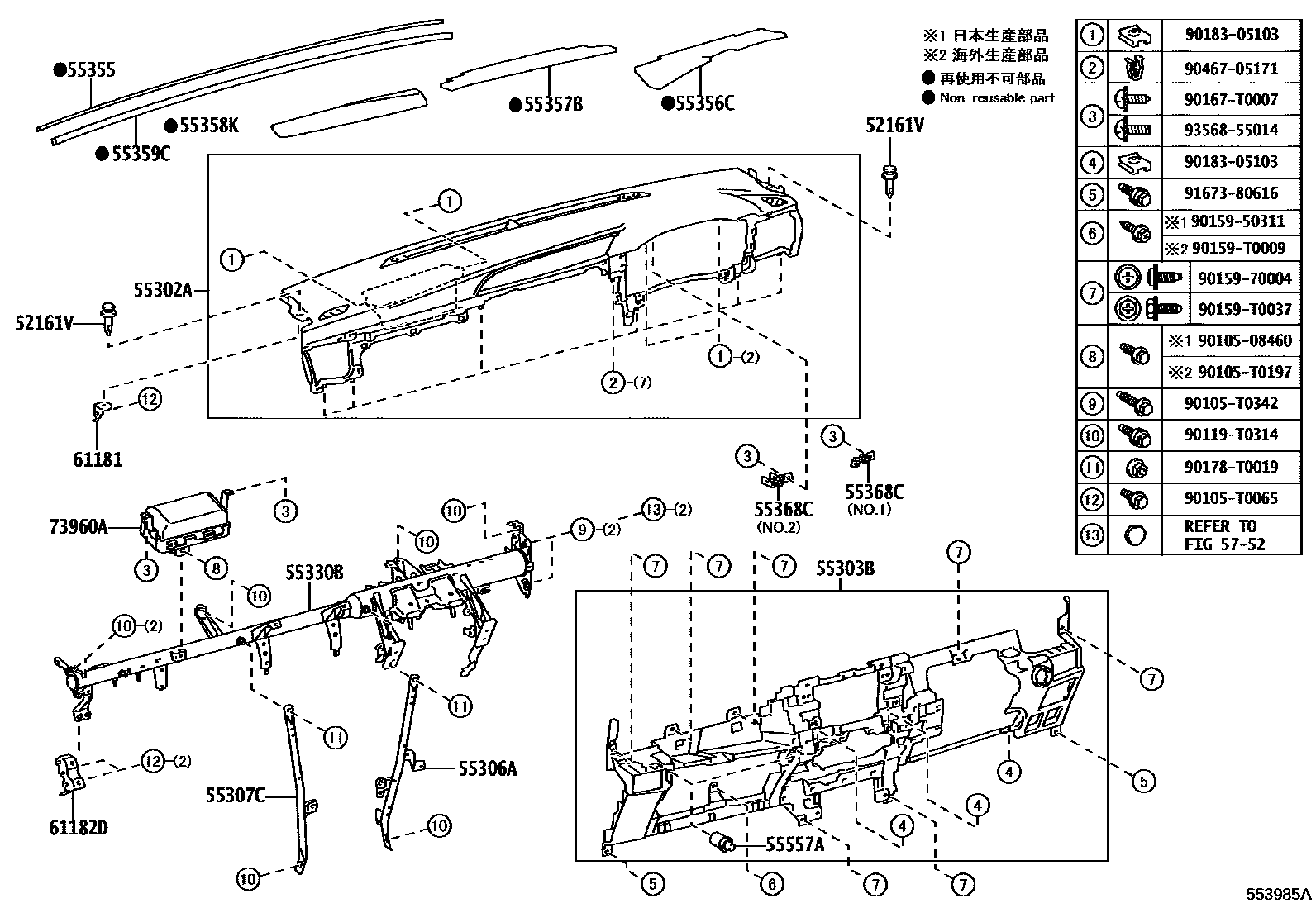

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

52161VPIECE, INSTRUMENT PANEL

main52161-0K040×2iGUN125201708-202005

main52161-16010×2iGUN125201708-202005

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-KK040-C0iGUN125..Z201708-201904

BLACK,TRIM2#

main55302-KK041-C0iGUN125201905-202005

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-KK030-C0iGUN125..X201708-202005

BLACK,TRIM2#

sub55303-KK050

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-KK030iGUN125201708-202005

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-KK030iGUN125201708-202005

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-KK090iGUN125201708-202005

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-KK020iGUN125201708-202005

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-KK010iGUN125201708-202005

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-KK030iGUN125201708-202005

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-KK030iGUN125201708-202005

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-KK030iGUN125201708-202005

55368CBRACKET, METER MOUNTING

main55368-KK010iGUN125201708-202005

main55368-KK020iGUN125201708-202005

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-0K020×2iGUN125201708-201907

main55557-0K030×2iGUN125201908-202005

5752

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-KK030iGUN125201708-202005

61182DBRACKET, INSTRUMENT PANEL SIDE

main61126-KK010iGUN125201708-202005

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0K010iGUN125201708-202005

9010508460

main90105-08460

90105T0065

main90105-T0065

90105T0197

main90105-T0197

90105T0342

main90105-T0342

90119T0314

main90119-T0314

9015950311

main90159-50311

9015970004

main90159-70004

90159T0009

main90159-T0009

90159T0037

main90159-T0037

90167T0007

main90167-T0007

90178T0019

main90178-T0019

9018305103

main90183-05103

9046705171

main90467-05171

9167380616

main91673-80616

9356855014

main93568-55014

32 parts on this diagram · 4 diagrams in section
