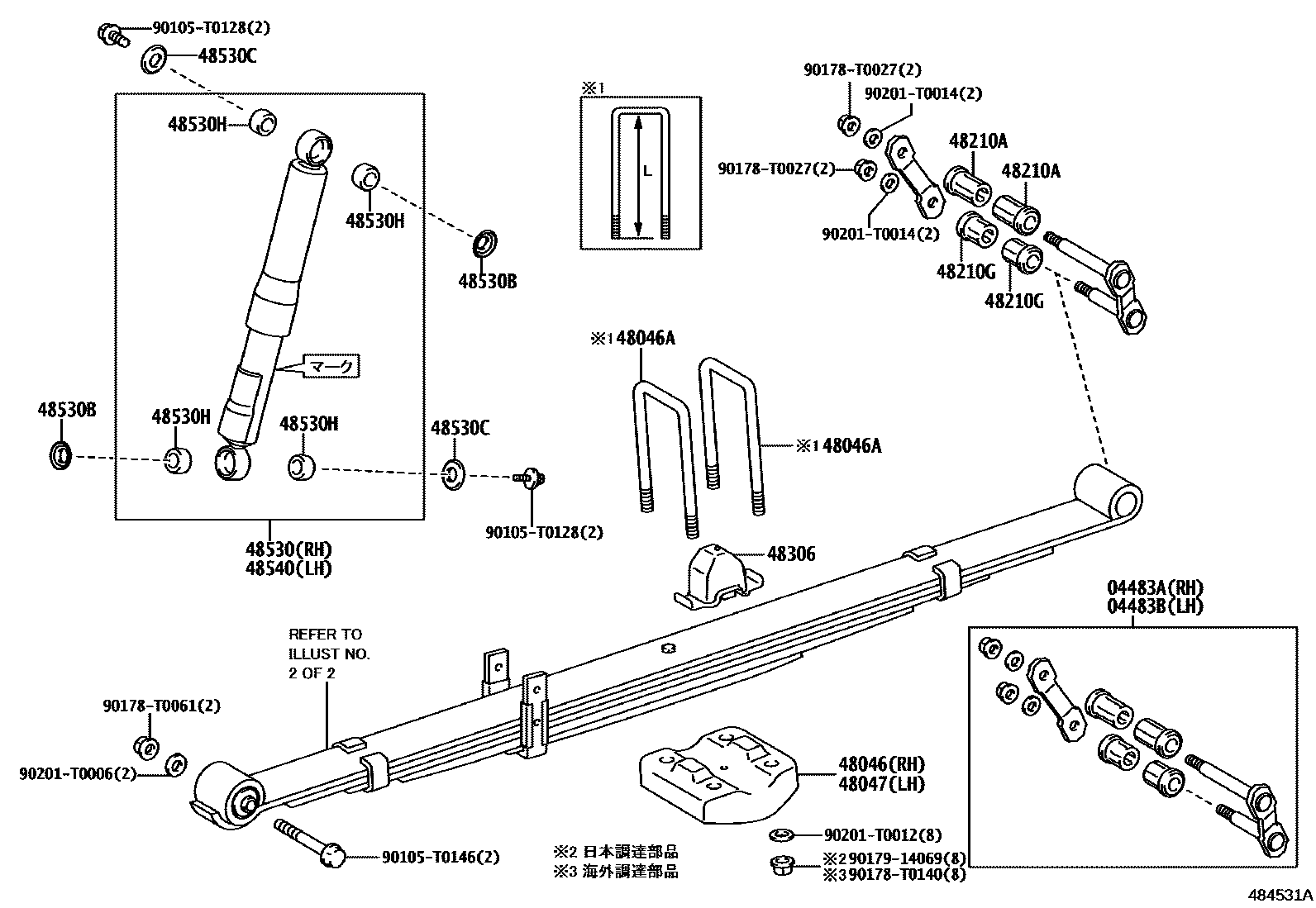

REAR SPRING & SHOCK ABSORBER

0001 1 0002 15�����

04483ASHACKLE KIT, REAR SPRING, RH

main04483-KK010iGUN125201708-202005

04483BSHACKLE KIT, REAR SPRING, LH

main04483-KK010iGUN125201708-202005

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-KK010iGUN125201708-202005

48046ABOLT, U(FOR REAR SPRING)

main90117-T0006×4iGUN125201708-202005

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-KK010iGUN125201708-202005

48210SPRING ASSY, REAR RH

main48210-0K490iGUN125..Z201708-202005

main48210-0KB70iGUN125..X201708-202005

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-T0014×4iGUN125201708-202005

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-T0017×4iGUN125201708-202005

48306BUMPER SUB-ASSY, REAR SPRING

main48306-0K040×2iGUN125201708-202005

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-8Z006iGUN125201708-202005

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-T3001×4iGUN125201708-202005

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-T3002×4iGUN125201708-202005

48530HBUSH, REAR SHOCK ABSORBER

main90385-T0019×8iGUN125201708-202005

48540ABSORBER ASSY, SHOCK, REAR LH

main48541-09290iGUN125201708-202005

90105T0128

main90105-T0128

90105T0146

main90105-T0146

90178T0027

main90178-T0027

90178T0061

main90178-T0061

90178T0140

main90178-T0140

9017914069

main90179-14069

90201T0006

main90201-T0006

90201T0012

main90201-T0012

90201T0014

main90201-T0014

23 parts on this diagram · 2 diagrams in section
