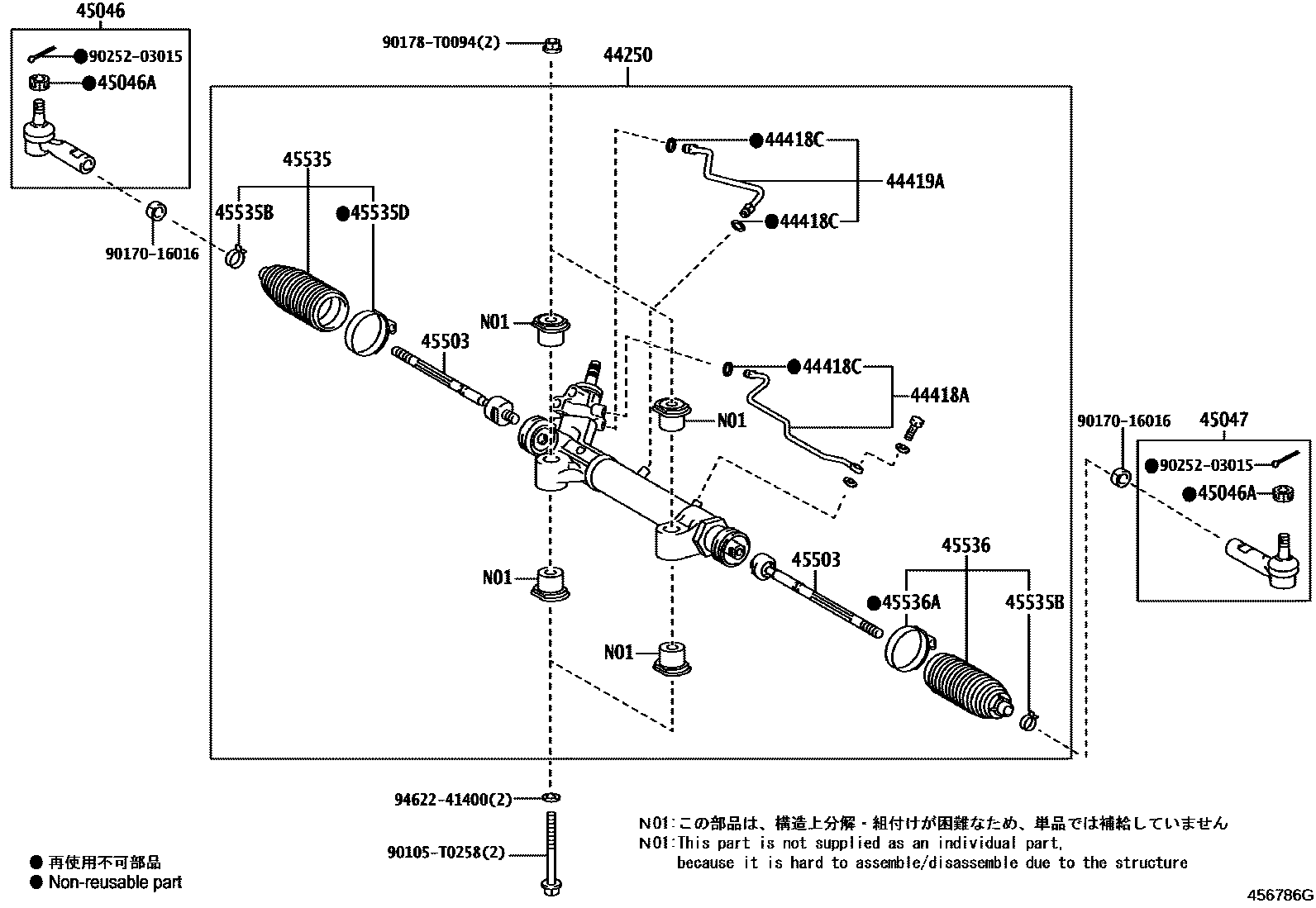

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0K710iGUN125201708-201909

main44250-0K711iGUN125201910-202005

44418ATUBE, STEERING RIGHT TURN PRESSURE

main44418-0K250iGUN125201708-202005

44418CRING, O(FOR STEERING TURN PRESSURE TUBE)

main90301-T0032iGUN125201708-202005

44419ATUBE, STEERING LEFT TURN PRESSURE

main44419-0K250iGUN125201708-202005

45046END SUB-ASSY, TIE ROD, RH

main45046-09800iGUN125201708-202005

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-T0002iGUN125201708-202005

45047END SUB-ASSY, TIE ROD, LH

main45046-09800iGUN125201708-202005

45503END SUB-ASSY, STEERING RACK

main45503-0K130iGUN125201708-202005

45535BOOT, STEERING RACK, NO.1

main45535-09390iGUN125201708-202005

45535BCLIP(FOR STEERING RACK BOOT)

main90466-T0004iGUN125201708-202005

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0K030iGUN125201708-202005

45536BOOT, STEERING RACK, NO.2

main45535-09390iGUN125201708-202005

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0K030iGUN125201708-202005

90105T0258

main90105-T0258

9017016016

main90170-16016

90178T0094

main90178-T0094

9025203015

main90252-03015

9462241400

main94622-41400

18 parts on this diagram · 1 diagram in section
