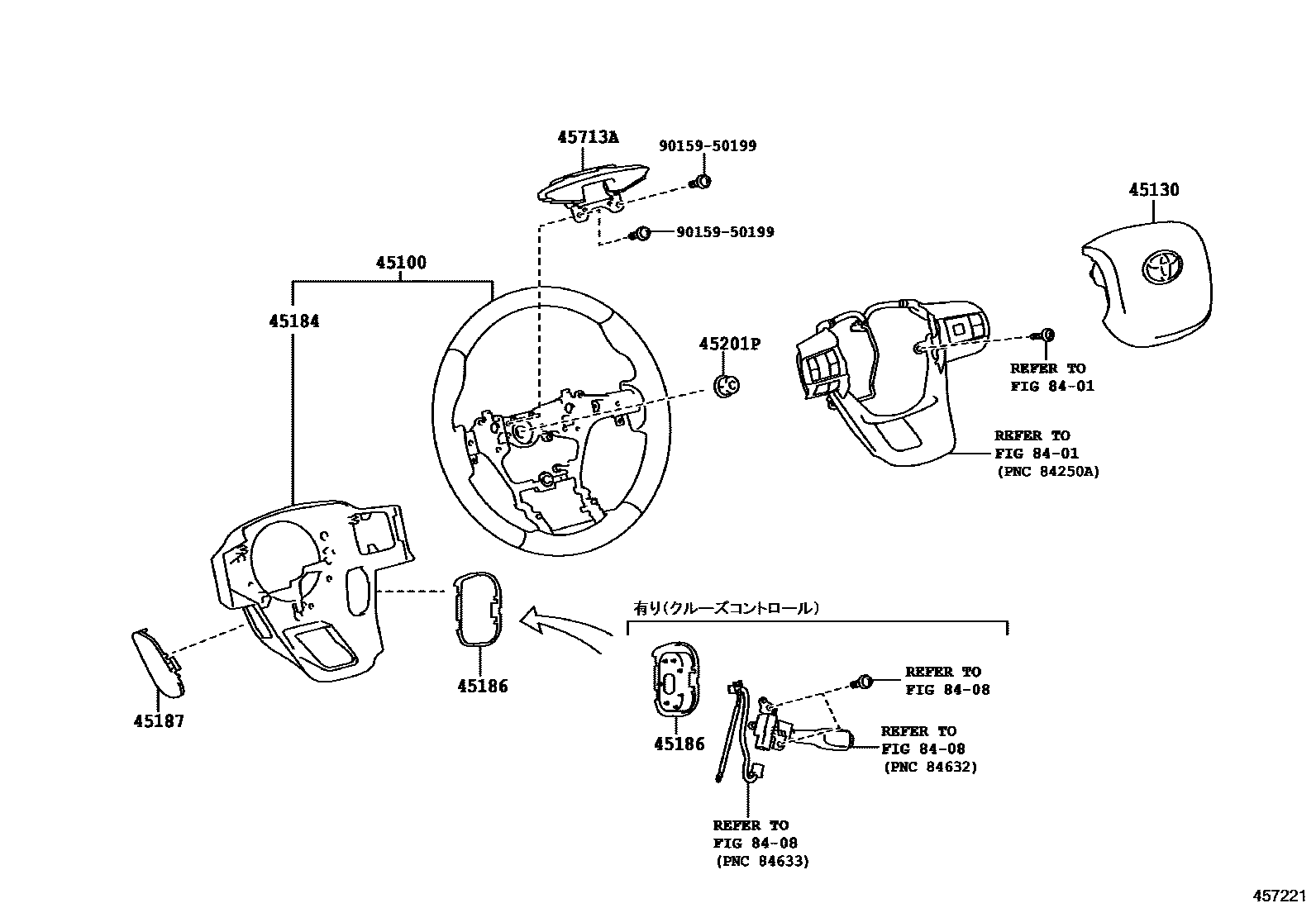

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0K250-C0iGUN125..X201708-202005

main45100-0K641-C0iGUN125..Z201708-202005

45130BUTTON ASSY, HORN

main45130-0K270-C0iGUN125201708-202005

BLACK,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-0K010-C0iGUN125201708-202005

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-0K120-C0iGUN125..Z201708-202005

BLACK,TRIM2#

main45186-0K130-C0iGUN125..X201708-202005

BLACK,TRIM2#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-0K050-C0iGUN125201708-202005

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90179-12071iGUN125201708-202005

45713ADAMPER, STEERING SHAKE

main45713-0K030iGUN125201708-202005

8401

8408

9015950199

main90159-50199

10 parts on this diagram · 1 diagram in section
