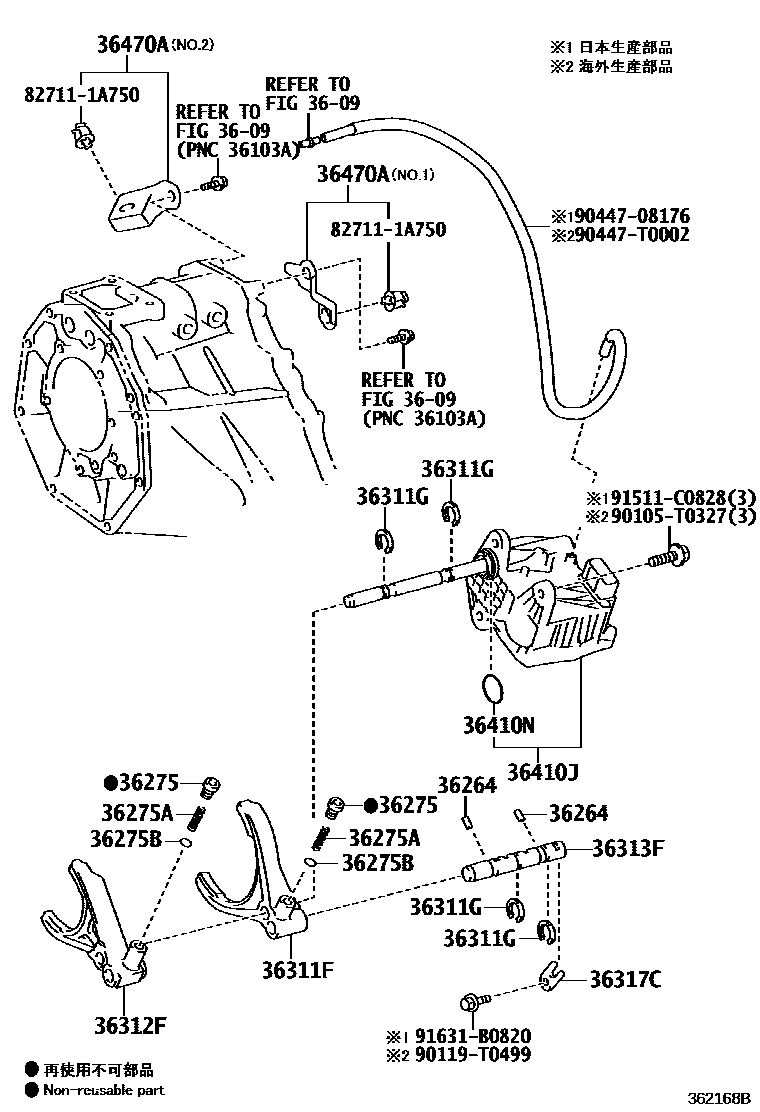

TRANSFER LEVER & SHIFT ROD

3609

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-06007×2iGUN125201708-202005

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12038×2iGUN125201708-202005

main90341-T0018×2iGUN125201708-202005

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-18091×2iGUN125201708-202005

main90501-T0042×2iGUN125201708-202005

36275BBALL, SHIFT DETENT

main90360-10003×2iGUN125201708-202005

main90360-T0008×2iGUN125201708-202005

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-0K010iGUN125201708-202005

sub36311-0K011

main36311-34010iGUN125201708-202005

sub36311-34011

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002×4iGUN125201708-202005

main90520-T0237×4iGUN125201708-202005

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-0K010iGUN125201708-202005

sub36312-0K011

main36312-34010iGUN125201708-202005

sub36312-34011

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-0K030iGUN125201708-202005

main36313-34011iGUN125201708-202005

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-0K020iGUN125201708-202005

main36317-35041iGUN125201708-202005

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-0K020iGUN125201708-202005

main36410-71020iGUN125201708-202005

36410NRING, O (FOR TRANSFER SHIFT ACTUATOR)

main90301-28013iGUN125201708-202005

main90301-T0066iGUN125201708-202005

36470ABRACKET ASSY, TRANSFER BREATHER

main36470-0K010iGUN125201708-202005

main36470-0K020iGUN125201708-202005

main36470-71010iGUN125201708-202005

main36470-71020iGUN125201708-202005

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

90105T0327

main90105-T0327

90119T0499

main90119-T0499

9044708176

main90447-08176

90447T0002

main90447-T0002

91511C0828

main91511-C0828

91631B0820

main91631-B0820

20 parts on this diagram · 1 diagram in section
