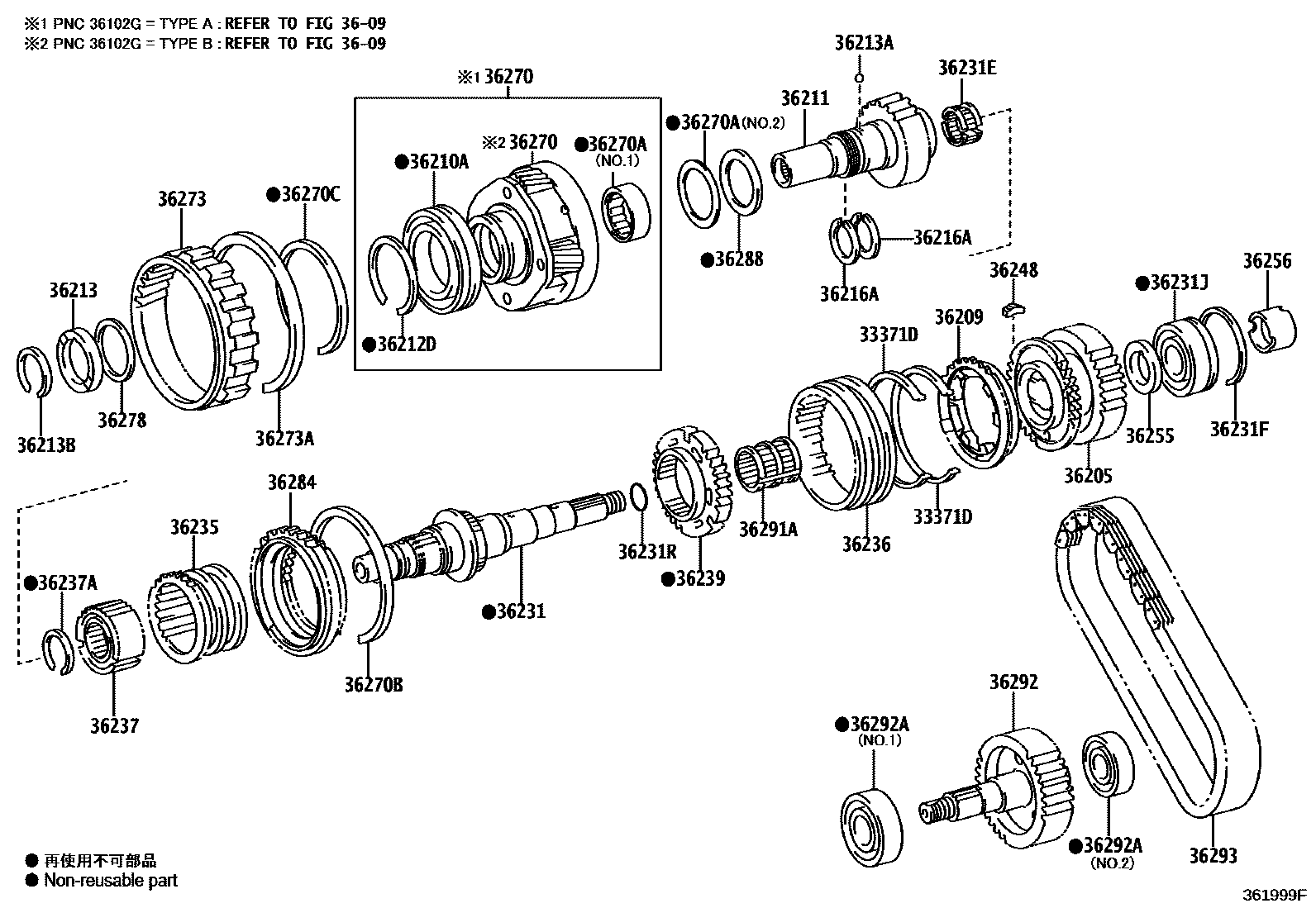

TRANSFER GEAR
33371DSPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER)
3609
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
36209RING SET, TRANSFER SYNCHRONIZER
36210ABEARING (FOR TRANSFER INPUT SHAFT)
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
36213STOPPER, TRANSFER INPUT GEAR
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36231RRING, O (FOR TRANSFER OUTPUT SHAFT)
36236SLEEVE, FRONT DRIVE CLUTCH
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
36239HUB, TRANSFER DRIVE CLUTCH
36248KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1
36256SPACER, TRANSFER OUTPUT SHAFT, NO.2
36270GEAR ASSY, TRANSFER LOW PLANETARY
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
36273GEAR, TRANSFER LOW PLANETARY RING
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
36288RACE, TRANSFER THRUST BEARING, NO.1
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
36292SPROCKET, TRANSFER DRIVEN
36293CHAIN, TRANSFER FRONT DRIVE
37 parts on this diagram · 1 diagram in section
