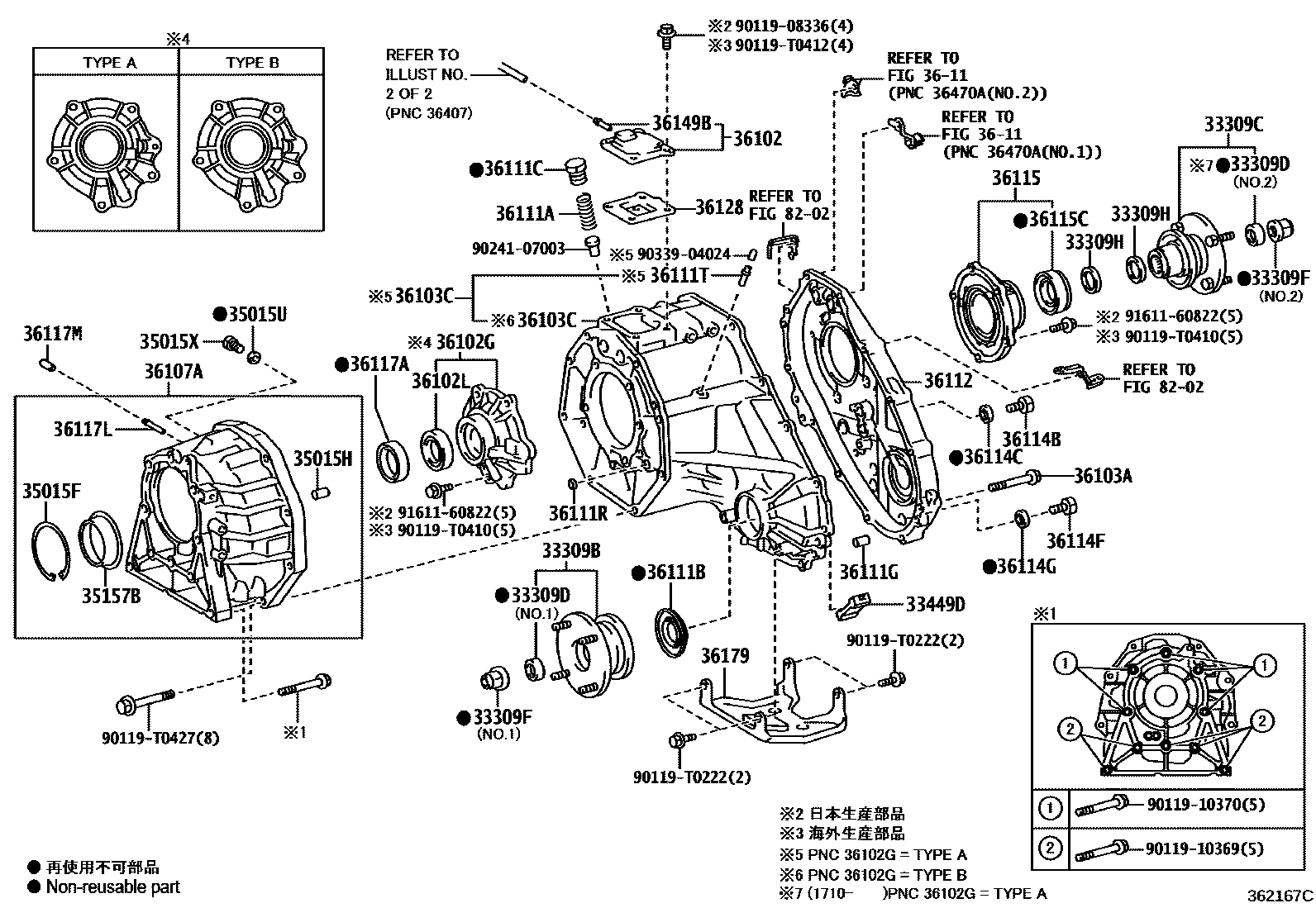

TRANSFER CASE & EXTENSION HOUSING
33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309FNUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309HWASHER, TRANSFER OUTPUT SHAFT
33449DMAGNET (FOR TRANSFER CASE)
35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)
35015HPIN, RING(FOR TRANSFER CASE)
35015URING, O(FOR TRANSMISSION CASE ADAPTER)
35015XPLUG, REFILL(FOR TRANSMISSION CASE ADAPTER)
35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL
36102COVER SUB-ASSY, TRANSFER CASE
36102GRETAINER SUB-ASSY, TRANSFER FRONT BEARING
36102LSEAL, TYPE T OIL(FOR TRANSFER FRONT BEARING)
36103ABOLT (FOR TRANSFER CASE)
36107AADAPTER SUB-ASSY, TRANSFER
3611
36111ASPRING, COMPRESSION (FOR TRANSFER CASE)
36111BSEAL, OIL (FOR TRANSFER CASE)
36111CPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111RPLUG, TIGHT (FOR TRANSFER CASE)
36111TTUBE (FOR TRANSFER CASE)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36115HOUSING, TRANSFER EXTENSION
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36117ASEAL, OIL(FOR TRANSFER ADAPTER)
36117LTUBE(FOR TRANSFER ADAPTER)
36117MCAP(FOR TRANSFER ADAPTER)
36179PROTECTOR, TRANSFER CASE LOWER
8202
9011908336
main90119-08336
9011910369
main90119-10369
9011910370
main90119-10370
90119T0222
main90119-T0222
90119T0410
main90119-T0410
90119T0412
main90119-T0412
90119T0427
main90119-T0427
9024107003
main90241-07003
9033904024
main90339-04024
9161160822
main91611-60822
48 parts on this diagram · 2 diagrams in section
