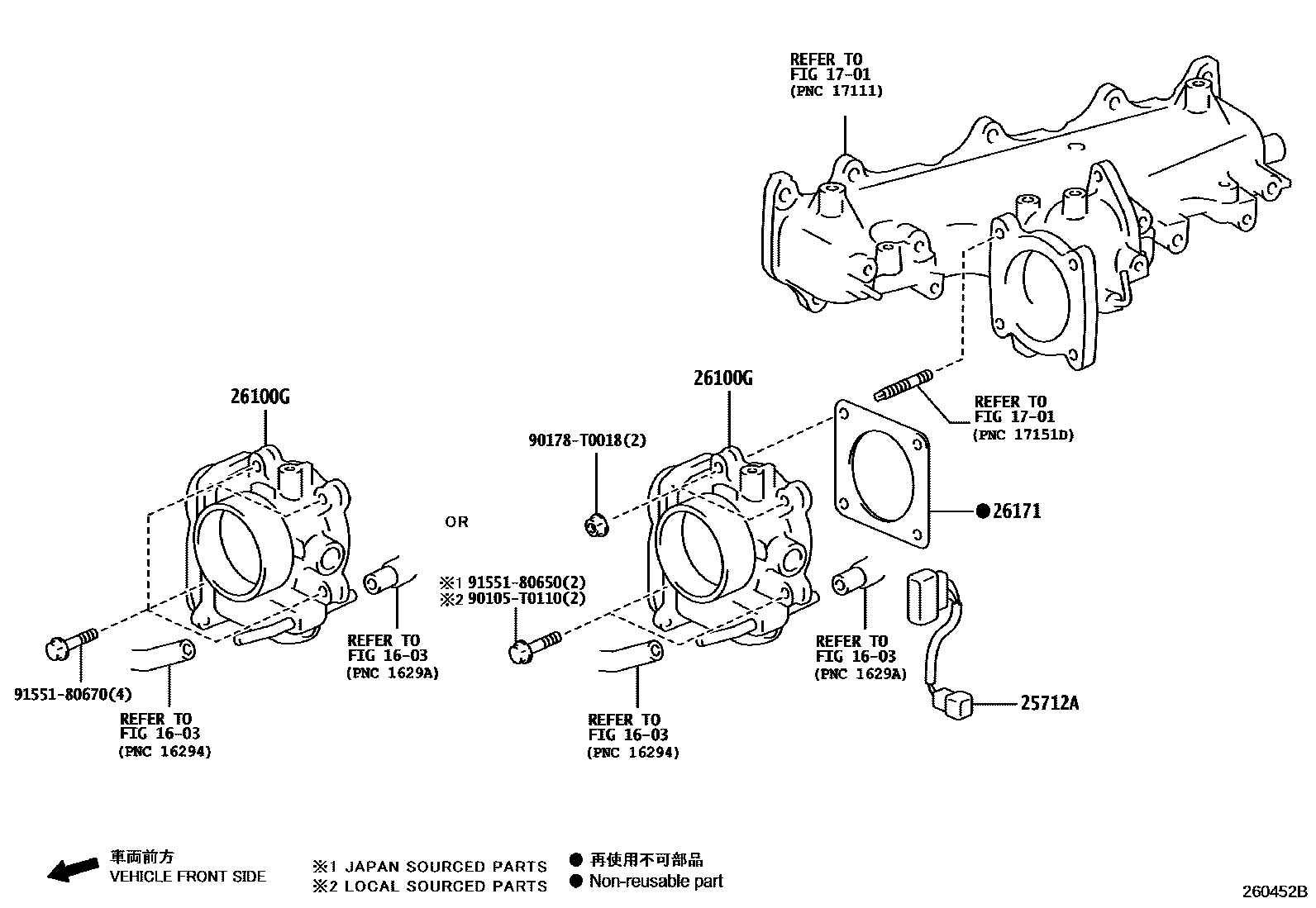

VENTURI

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25712AWIRE, EMISSION CONTROL VALVE

main25712-0E010i2GDFTV..GUN125201708-202005

26100GBODY ASSY, DIESEL THROTTLE

main26100-0E010i2GDFTV..GUN125201708-201903

main26100-0E040i2GDFTV..GUN125201903-201905

26171GASKET, VENTURI

main26171-0E010i2GDFTV..GUN125201708-201903

main26171-0E030×2i2GDFTV..GUN125201903-201905

90105T0110

main90105-T0110

90178T0018

main90178-T0018

9155180650

main91551-80650

9155180670

main91551-80670

9 parts on this diagram · 2 diagrams in section
