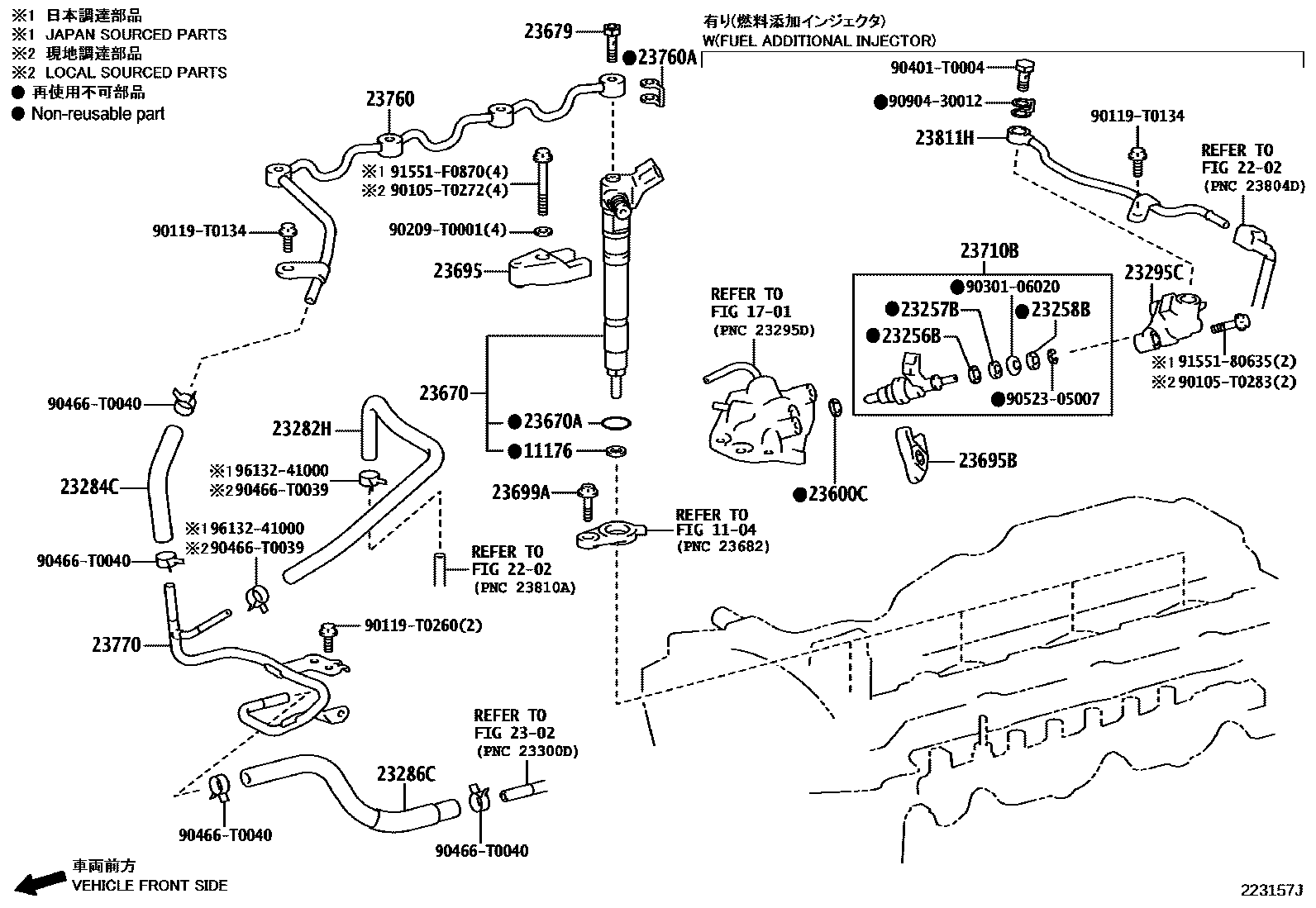

INJECTION NOZZLE
1104
11176SEAT, INJECTION NOZZLE
1701
2202
2302
23256BRING, FUEL INJECTOR BACK-UP, NO.1
23257BRING, FUEL INJECTOR BACK-UP, NO.2
23258BRING, FUEL INJECTOR BACK-UP, NO.3
23282HHOSE, FUEL, NO.4
23284CHOSE, FUEL, NO.5
23286CHOSE, FUEL, NO.6
23295CHOLDER, INJECTOR
23600CGASKET(FOR HOLDER & NOZZLE SET)
23670INJECTOR ASSY
23670ARING, O(FOR INJECTOR ASSY)
23679SCREW, INJECTOR FOLLOW
23695CLAMP, NOZZLE HOLDER, NO.1
23695BCLAMP, NOZZLE HOLDER, NO.2
23699ASEAT, NOZZLE HOLDER CLAMP
23710BINJECTOR ASSY, EXHAUST FUEL ADDITION
23760PIPE ASSY, NOZZLE LEAKAGE
23760AGASKET
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
23811HPIPE, FUEL, NO.1
sub23811-08010
90105T0272
main90105-T0272
90105T0283
main90105-T0283
90119T0134
main90119-T0134
90119T0260
main90119-T0260
90209T0001
main90209-T0001
9030106020
main90301-06020
90401T0004
main90401-T0004
90466T0039
main90466-T0039
90466T0040
main90466-T0040
9052305007
main90523-05007
9090430012
main90904-30012
9155180635
main91551-80635
91551F0870
main91551-F0870
9613241000
main96132-41000
38 parts on this diagram · 1 diagram in section
