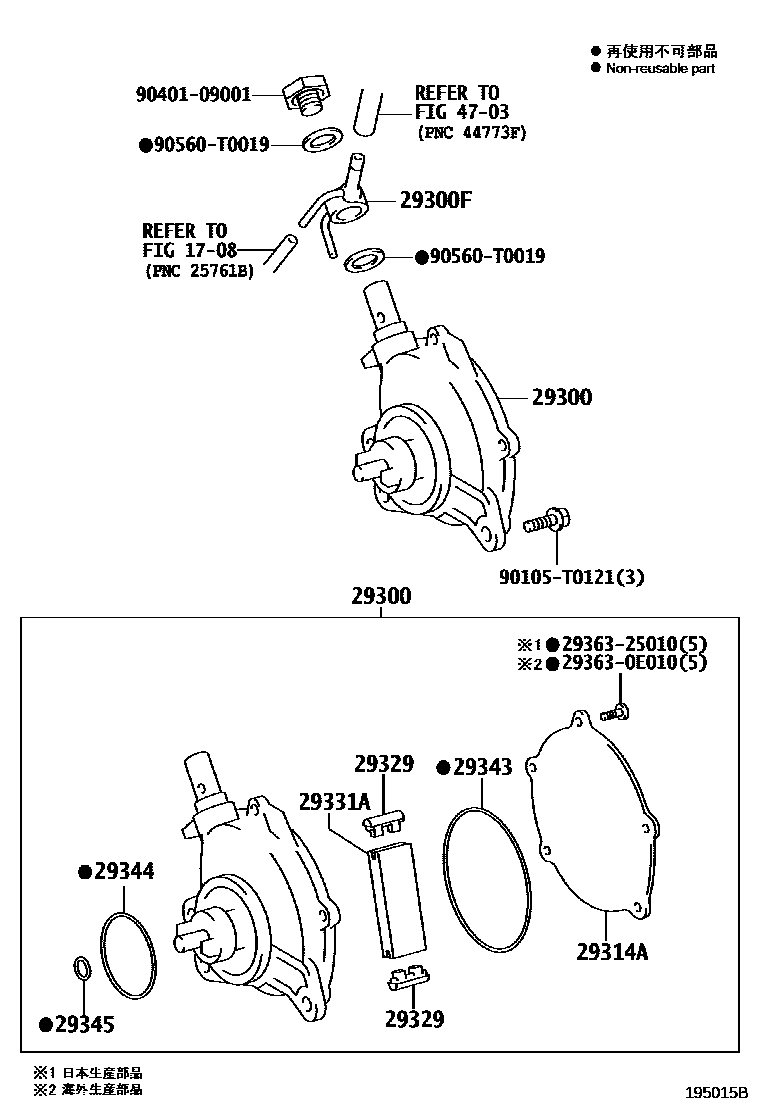

VACUUM PUMP

1708

29300PUMP ASSY, VACUUM

main29300-0E010i2GDFTV..GUN125201708-201809

main29300-0E011i2GDFTV..GUN125201810-202005

sub29300-08010

main29300-11020i2GDFTV..GUN125201708-201807

main29300-11021i2GDFTV..GUN125201807-202005

29300FUNION

main90405-09194i2GDFTV..GUN125201708-202005

main90405-T0001i2GDFTV..GUN125201708-202005

29314ACOVER, END

main29314-0E010i2GDFTV..GUN125201708-202005

main29314-11020i2GDFTV..GUN125201708-202005

29329CAP, VACUUM PUMP VANE

main29329-0E010×2i2GDFTV..GUN125201708-202005

main29329-37010×2i2GDFTV..GUN125201708-202005

29331AVANE, VACUUM PUMP

main29331-0E010i2GDFTV..GUN125201708-202005

main29331-11020i2GDFTV..GUN125201708-202005

29343RING, O VACUUM PUMP, NO.1

main29343-0E010i2GDFTV..GUN125201708-202005

main29343-11020i2GDFTV..GUN125201708-202005

29344RING, O VACUUM PUMP, NO.2

main29344-0E010i2GDFTV..GUN125201708-202005

main29344-22011i2GDFTV..GUN125201708-202005

29345RING, O VACUUM PUMP, NO.3

main29345-0E010i2GDFTV..GUN125201708-202005

main29345-22011i2GDFTV..GUN125201708-202005

4703

293630E010SCREW, HOLLOW VACUUM PUMP

main29363-0E010

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

90105T0121

main90105-T0121

9040109001

main90401-09001

90560T0019

main90560-T0019

15 parts on this diagram · 1 diagram in section
