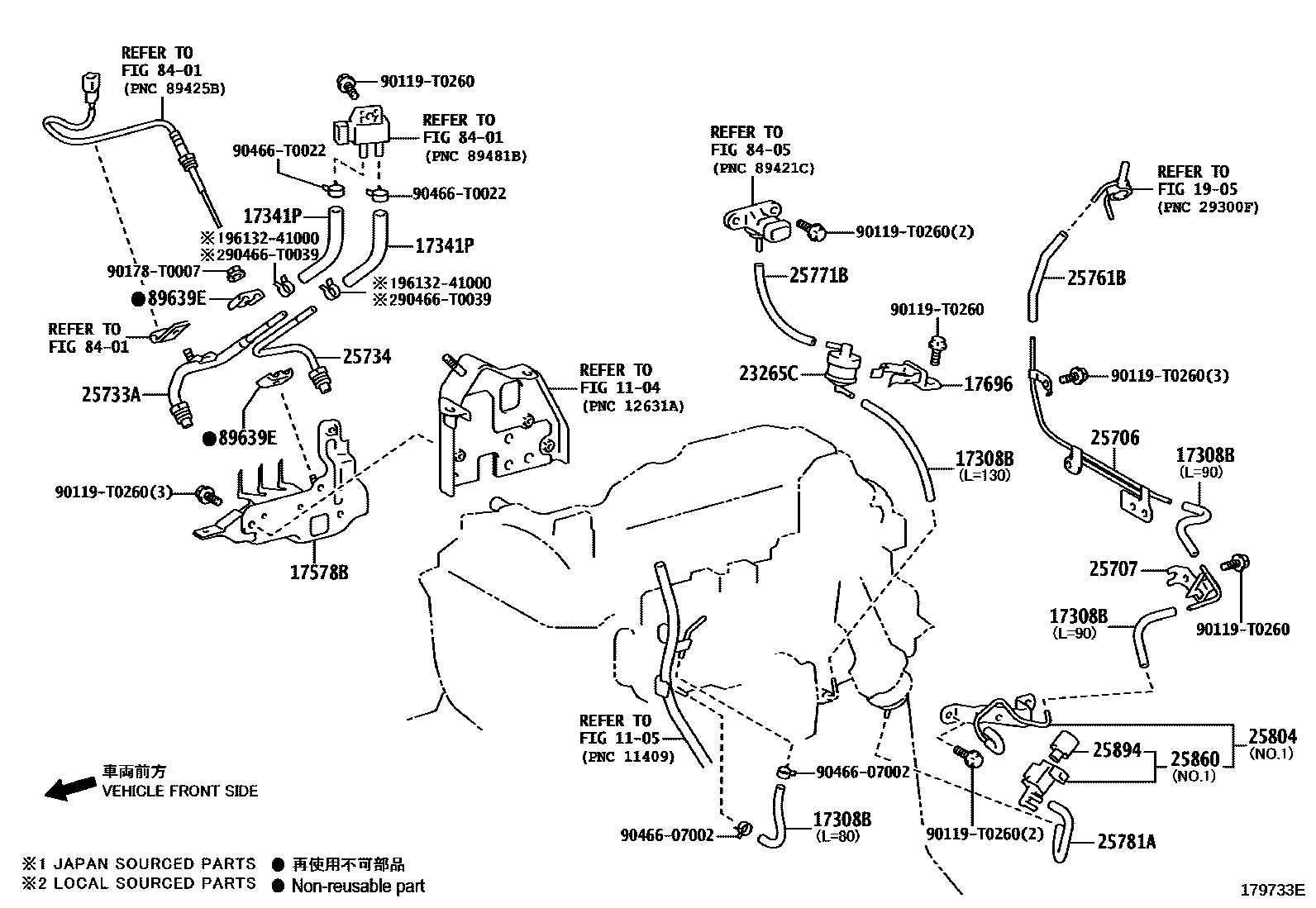

VACUUM PIPING

1104

1105

17308BHOSE SUB-ASSY, VACUUM

main90999-92002i2GDFTV..GUN125201708-202005

17341PHOSE, AIR

main17341-0E010×2i2GDFTV..GUN125201708-202005

17578BCLAMP, PIPE

main17578-0E020i2GDFTV..GUN125201708-202005

17696BRACKET, GAS FILTER

main17696-0E010i2GDFTV..GUN125201708-202005

1905

23265CFILTER, GAS

main90917-11044i2GDFTV..GUN125201708-202005

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-0E010i2GDFTV..GUN125201708-202005

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main25707-0E010i2GDFTV..GUN125201708-202005

25733APIPE, VACUUM, NO.1

main25733-0E010i2GDFTV..GUN125201708-202005

25734PIPE, VACUUM, NO.2

main25734-0E010i2GDFTV..GUN125201708-202005

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-0E010i2GDFTV..GUN125201708-202005

25771BHOSE, VACCUM TRANSMITTING, NO.2

main25771-0E020i2GDFTV..GUN125201708-202005

25781AHOSE, VACUUM TRANSMITTING, NO.3

main25781-0E010i2GDFTV..GUN125201708-202005

25804VALVE SET, VACUUM CONTROL

main25804-11010i2GDFTV..GUN125201708-202005

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-30070i2GDFTV..GUN125201708-202005

25894FILTER, NO.1

main25894-11010i2GDFTV..GUN125201708-202005

8401

8405

89639ECLAMP

main89639-0K010×2iGUN125201708-202005

90119T0260

main90119-T0260

90178T0007

main90178-T0007

9046607002

main90466-07002

90466T0022

main90466-T0022

90466T0039

main90466-T0039

9613241000

main96132-41000

27 parts on this diagram · 1 diagram in section
