MANIFOLD
1201

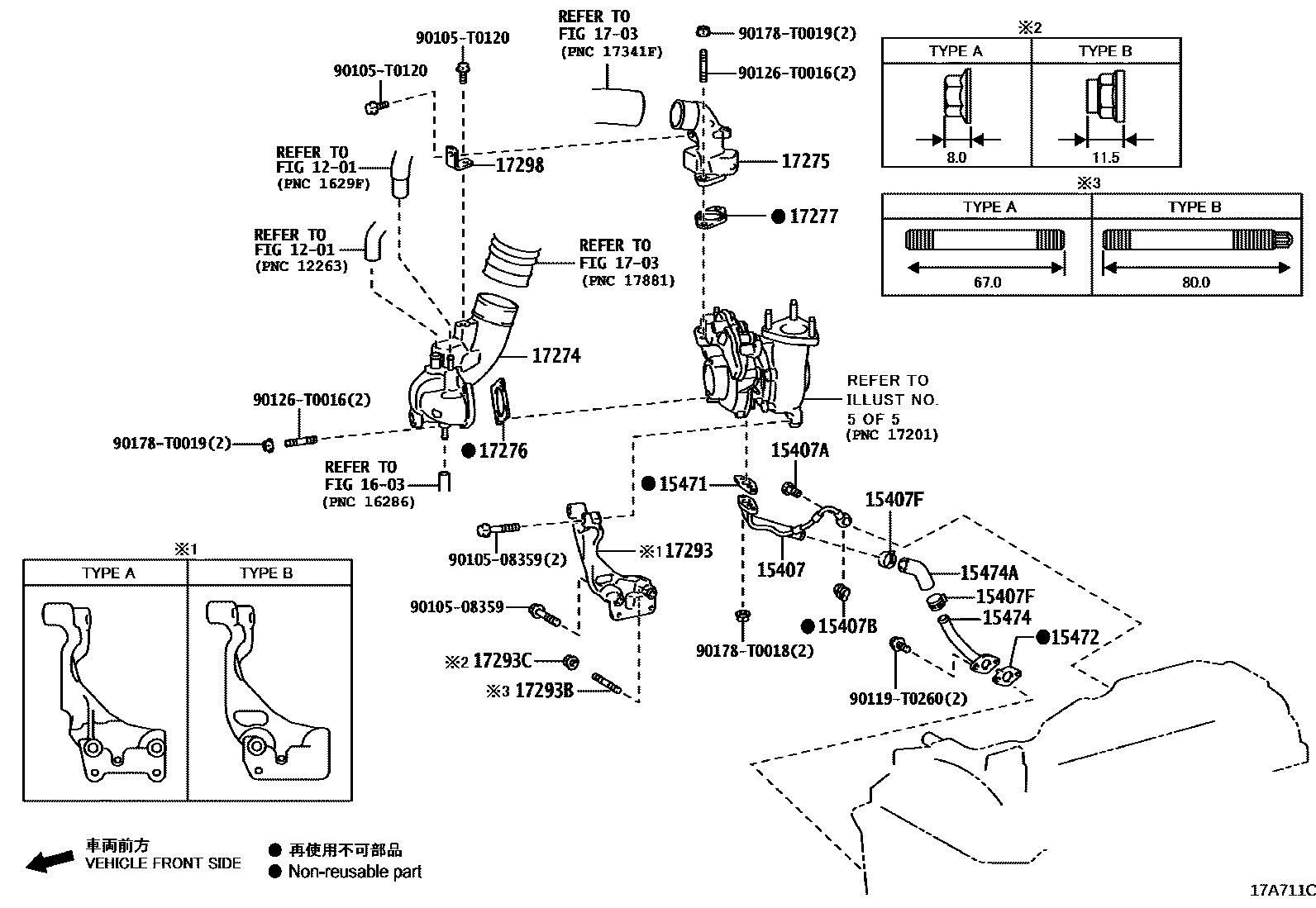

15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
15407BGASKET(FOR TURBO OIL INLET PIPE)
15407FCLAMP OR CLIP, OIL HOSE
15471GASKET, TURBO OIL INLET
15472GASKET, TURBO OIL OUTLET, NO.1
15474PIPE, TURBO OIL OUTLET
15474AHOSE, TURBO OIL OUTLET
17274ELBOW, COMPRESSOR INLET
17275ELBOW, COMPRESSOR OUTLET
17276GASKET, COMPRESSOR INLET
17277GASKET, COMPRESSOR OUTLET
17293STAY, TURBOCHARGER
17293BBOLT(FOR TURBOCHARGER STAY)
17293CNUT(FOR TURBOCHARGER STAY)
17298STAY, COMPRESSOR ELBOW
9010508359
main90105-08359
90105T0120
main90105-T0120
90119T0260
main90119-T0260
90126T0016
main90126-T0016
90178T0018
main90178-T0018
90178T0019
main90178-T0019
23 parts on this diagram · 5 diagrams in section
