V-BELT

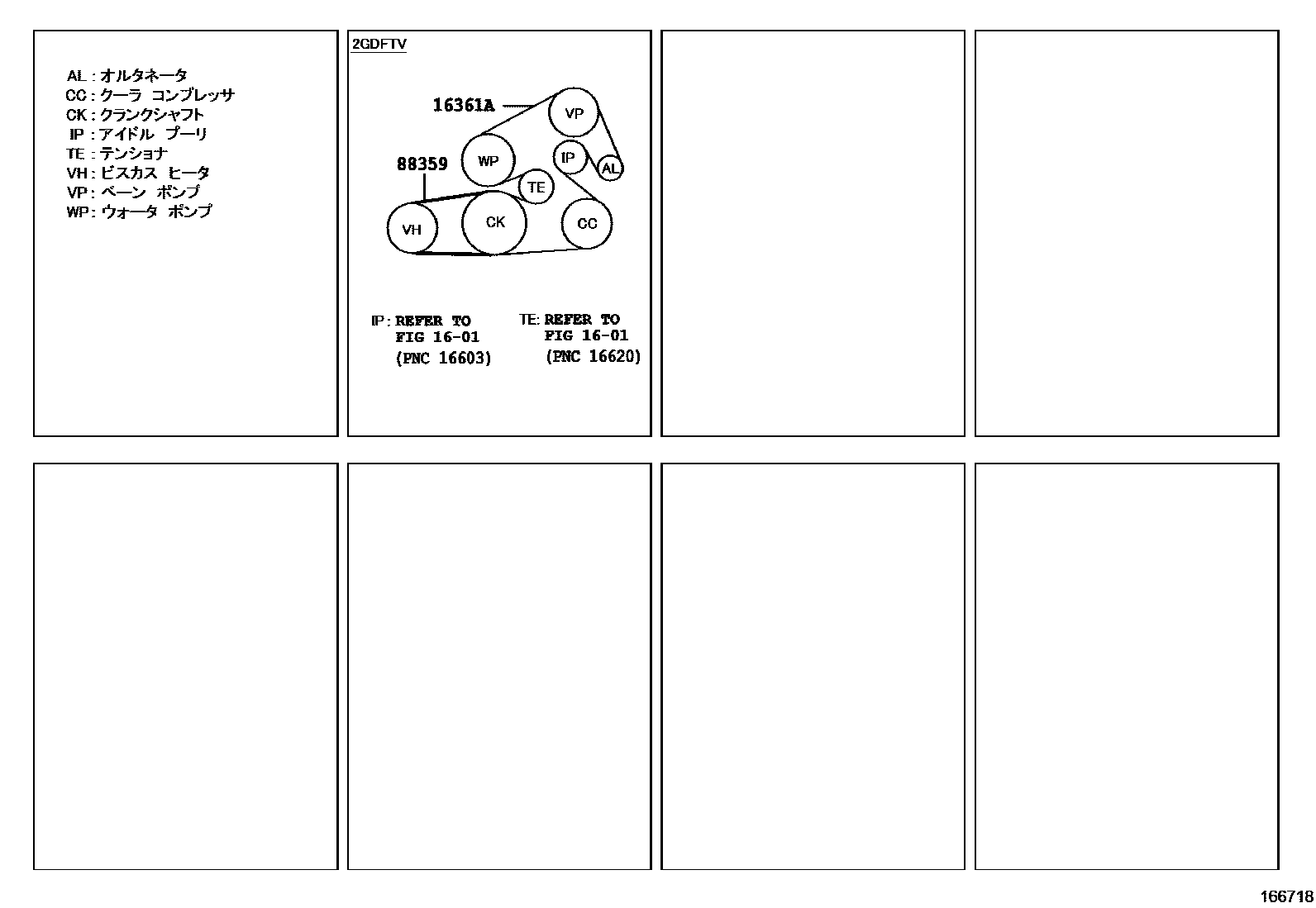

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-T2033i201708-202005

88359BELT, V(FOR VISCOUS HEATER)

main88359-0K010i201708-202005

3 parts on this diagram · 1 diagram in section
