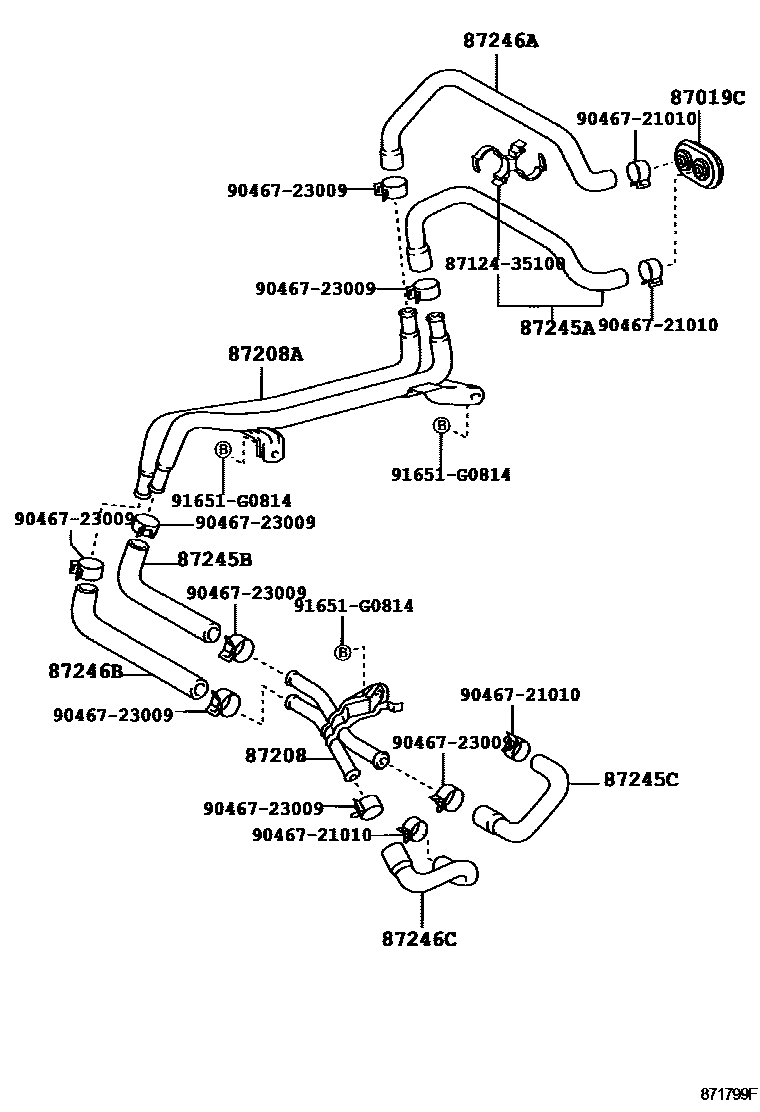

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87019CGROMMET, HEATER HOSE

main90480-01405iLN147,16#,17#,RZN147,152,16#,174199708-200108

87208PIPE SUB-ASSY, HEATER WATER

main87208-35280iLN147,167,172200108-200407

main87208-35310iLN165,170199708-199908

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-35290iLN165,170199708-199908

main87208-35300iLN147,167,172199708-200108

87245AHOSE, HEATER WATER, INLET A

main87245-35840iLN147,167,172200108-200407

main87245-3D060iLN165,170199708-199908

main87246-35010iRZN147,152,16#,174199708-200108

87245BHOSE, HEATER WATER, INLET B

main87254-35010iLN147,16#,17#199708-200108

87245CHOSE, HEATER WATER ,INLET C

main87244-35010iLN147,16#,17#199708-200108

87246AHOSE, HEATER WATER, OUTLET A

main87245-35890iRZN147,152200108-200308

main87245-3D010iRZN169,174200108-200308

main87246-35020iLN147,167,172199708-200108

main87246-35040iLN165,170199708-199908

87246BHOSE, HEATER WATER, OUTLET B

main87242-35010iLN147,16#,17#199708-200108

87246CHOSE, HEATER WATER, OUTLET C

main87243-35010iLN147,167,172200108-200407

8712435100CLAMP, HEATER

main87124-35100

9046721010

main90467-21010

9046723009

main90467-23009

91651G0814

main91651-G0814

13 parts on this diagram · 3 diagrams in section
