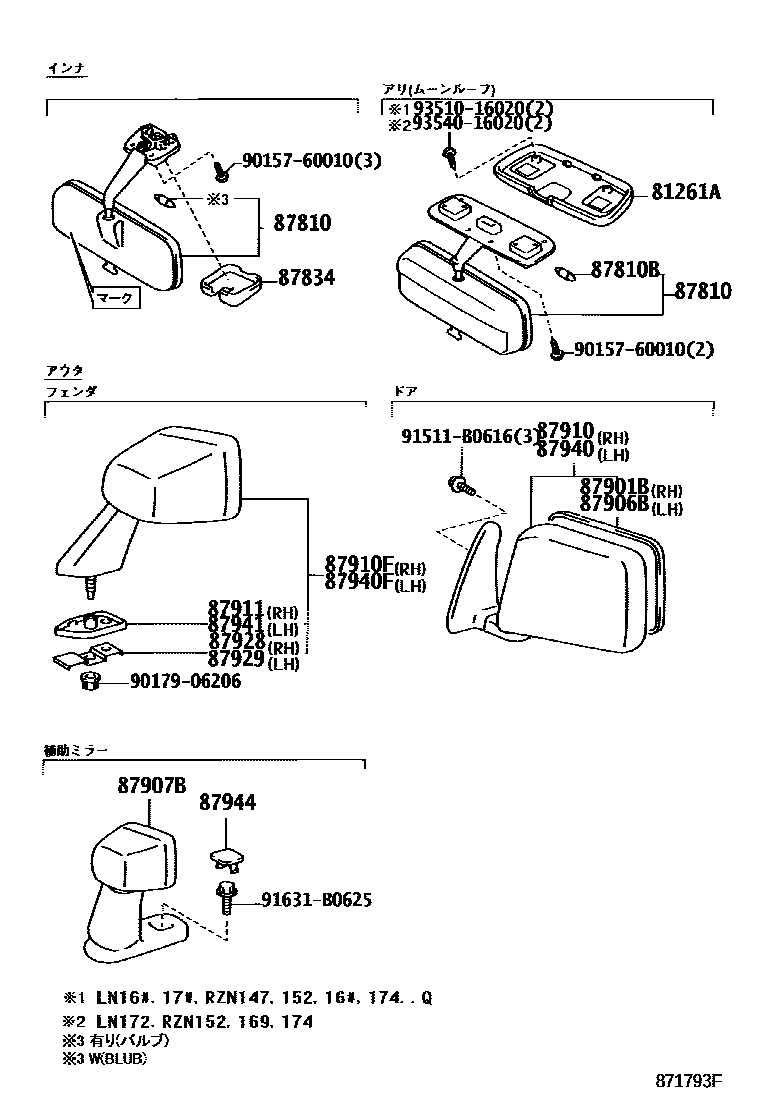

MIRROR

81261ALENS AND COVER, MAP LAMP

main87818-35010-B1iLN16#,17#,RZN147,167..Q199708-199805

MOON MIST,TRIM1#

main87818-35010-B2iLN16#,17#,RZN147,152,16#,174..Q199805-200108

LT.BLUISH GRAY,TRIM1#

87810MIRROR ASSY, INNER REAR VIEW

main87810-04040-B1iLN147,167,RZN147..SCB199805-200108

main87810-04040-B2iLN147,167,RZN147..SCB199708-199805

main87810-35020-B1iLN16#,17#,RZN147,167..Q199708-199805

main87810-35020-B2iLN172,RZN152,169,174200108-200407

main87810-89140-B0iLN147,167,RZN147..SCB200108-200407

main87810-89140-B1iLN147,167,RZN147..SCB199708-199805

main87810-89141-B0iLN147,16#,17#,RZN147,152,16#,174..DCB,XTR199805-200108

main87810-89141-B1iLN147,16#,17#,RZN147,167..DCB,XTR199708-199805

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-13050iLN147,167,RZN147..SCB; LN172,RZN152,169,174200108-200407

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-89104iRZN147200108-200308

main87834-89105-B1iRZN152,169,174200108-200308

LT.BLUISH GRAY,TRIM1#

main87834-89105-B2iLN147,16#,17#,RZN147,167..DCB,XTR199708-199805

MOON MIST,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-35540iLN172200108-200407

main87931-35610iRZN147,152..Q199708-200108

main87931-3D030iRZN147200108-200308

main87931-3D040iLN167..D199908-200108

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-35510iLN172200108-200407

main87961-35570iRZN147,152..Q199708-200108

main87961-35830iRZN147200108-200308

main87961-35840iLN167200108-200407

87907BDEVICE SUB-ASSY,FRONT FENDER SIDE VIEW,LH

main87907-35040-A0iLN147; LN167200108-200407

main87907-35040-B0iLN147..T1,TW1; LN167200108-200407

main87907-35040-C0iLN16#,17#,RZN147,167..Q199708-199908

BLACK M,2DN

main87907-35040-D0iLN167..D; LN167..Q;LN147,172,RZN147,152,169,174199908-200108

main87907-35040-F0iLN147..T1,TW1; LN167200108-200407

main87907-35040-G0iRZN147..Q;LN16#,17#,RZN167199708-199908

DK.GREEN M.M.,6N7

main87907-35040-G1iLN147,167,172,RZN147,152,169,174199908-200108

GREEN ME.OP.,6P4

main87907-35040-G2iLN147..T1,TW1; LN167200108-200407

main87907-35040-J0iLN147,167,172,RZN147,152,169,174; LN167..D199908-200108

main87907-35040-K0iLN147,167,172,RZN147,152,169,174199908-200108

GRAYISH PURPLE ME.,926

main87907-35050-A0iLN172200108-200407

WHITE,058

main87907-35050-B0iRZN152,169,174200108-200308

SILVER ME.,1E4

main87907-35050-C0iRZN152,169,174200108-200308

BLACK M,204

main87907-35050-D0iRZN152200108-200308

RED MM,3K4

main87907-35050-F0iRZN152,169,174200108-200308

CHAMPAGNE M.M.,587

main87907-35050-G0iRZN152; RZN169,174200108-200308

DARK GREEN MC.,2HT ,6R4; DARK GREEN MC.,6R4

main87907-35050-J0iLN172200108-200407

DK.BLUE M.M.,8L7

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-35540iLN165,170,RZN167199708-199908

main87910-35610iRZN147,152..Q199708-200108

main87910-35620-G0iRZN147..Q199708-200108

main87910-35660-G0iRZN169,174199908-200108

GREEN ME.OP.,6P4

main87910-3D030iLN147,RZN147..D199908-200108

main87910-3D040iLN167..D199908-200108

87910FMIRROR ASSY, FENDER, RH

main87910-35530iLN147,167,RZN147..D199708-200108

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-35030iLN147,167,RZN147..D199708-200108

87928RETAINER, OUTER REAR VIEW MIRROR, RH

main87928-35030iLN147,167,RZN147..D199708-200108

87929RETAINER, OUTER REAR VIEW MIRROR, LH

main87928-35040iRZN147200108-200308

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-35510iRZN169,174200108-200308

main87940-35570iRZN152200108-200308

main87940-35580-G0iRZN152199908-200108

GREEN ME.OP.,6P4

main87940-35610-G0iRZN169,174199908-200108

GREEN ME.OP.,6P4

main87940-35830iLN147200108-200407

main87940-35840iLN167..D199908-200108

87940FMIRROR ASSY, FENDER, LH

main87940-35500iRZN147200108-200308

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-35030iLN147,167,RZN147..D199708-200108

87944COVER, FRONT FENDER SIDE VIEW DEVICE, LH

main87944-35020-A0iLN147,167,172,RZN147,152,169,174199908-200108

WHITE,058

main87944-35020-B3iRZN147,152,169,174200108-200308

SILVER ME.,1E4

main87944-35020-C0iLN147,167,172,RZN147,152,169,174199908-200108

BLACK.M,2DN

main87944-35020-D0iLN16#,17#,RZN147,167..Q199708-199908

RED MM,3K4

main87944-35020-F1iRZN147,152,169,174200108-200308

CHAMPAGNE M.M.,587

main87944-35020-G0iRZN147..Q;LN16#,17#,RZN167199708-199908

DK.GREEN M.M,6N7

main87944-35020-G1iLN147,167,172,RZN147,152,169,174199908-200108

GREEN ME.OP,6P4

main87944-35020-G3iLN147,167..T1,TW1; LN172200108-200407

DARK GREEN MC.,2HT ,6R4; DARK GREEN MC.,6R4

main87944-35020-J1iRZN147,152,169,174200108-200308

DK.BLUE M.M.,8L7

main87944-35020-K0iLN147,167,172,RZN147,152,169,174199908-200108

GRAYISH PURPLE M.M.,926

9015760010

main90157-60010

9017906206

main90179-06206

91511B0616

main91511-B0616

91631B0625

main91631-B0625

9351016020

main93510-16020

9354016020

main93540-16020

22 parts on this diagram · 1 diagram in section
