OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

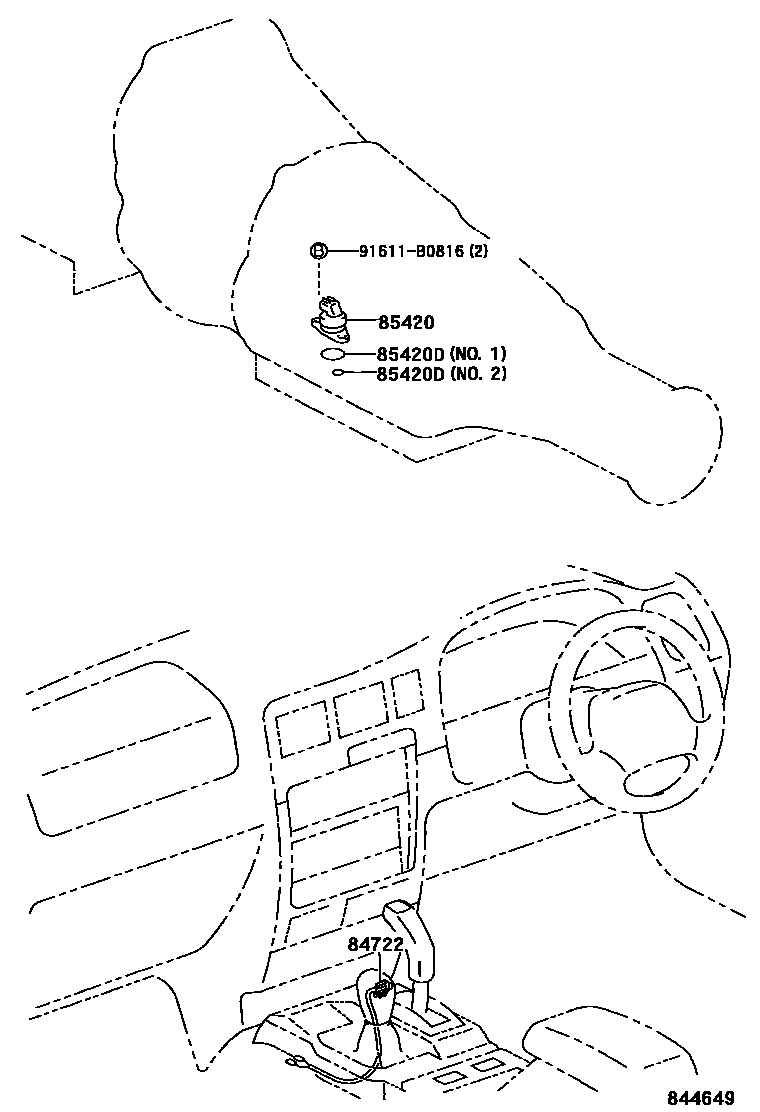

84722SWITCH, TRANSMISSION CONTROL

main84722-35150-B0iLN165,170,RZN169,174199708-200108

MD.MOON MIST,TRIM1#

main84722-35180-B0iRZN147,152..ATM199708-200108

MD.MOON MIST,TRIM1#

85420SOLENOID ASSY, TRANSMISSION

main35250-30050iRZN169,174200206-200308

main35250-30070iRZN169,174200206-200308

main85420-21090×2iLN165,170199809-199908

main85420-21100×2iLN165,170199809-199908

main85420-22150iRZN169,174199908-200108

main85420-22170iRZN169,174200108-200206

main85420-30160iRZN147,152..ATM200108-200308

main85420-30200×2iLN165,170199708-199809

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3iRZN169,174200206-200308

main90301-11001iRZN147,152..ATM199708-200108

main90301-23001iRZN147,152..ATM200108-200308

91611B0816

main91611-B0816

4 parts on this diagram · 3 diagrams in section
