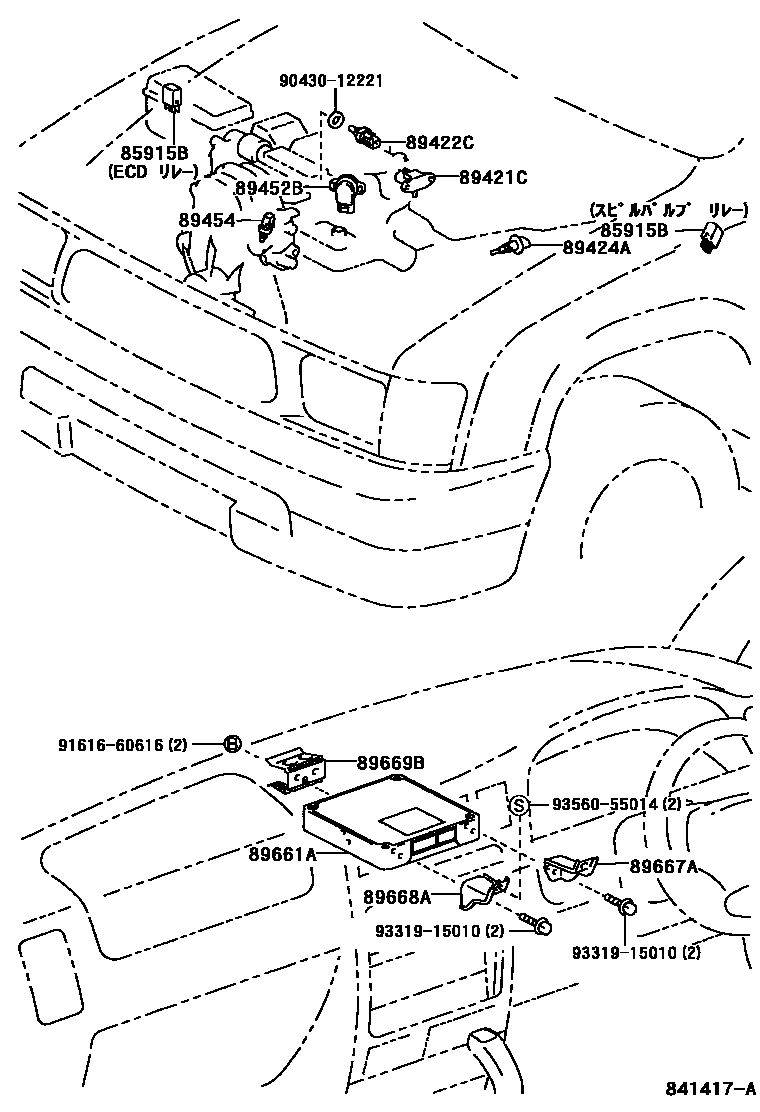

ELECTRONIC CONTROLED DIESEL (ECD)

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02012×2iLN165,170199708-199908

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-60030iLN165,170199708-199908

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iLN165,170199708-199908

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-12010iLN165,170199708-199908

89452BSENSOR, THROTTLE POSITION

main89452-28090iLN165,170199708-199908

89454SENSOR, FUEL TEMPERATURE

main89454-60010iLN165,170199708-199908

89661ACOMPUTER, ENGINE CONTROL

main89661-3D510iLN165,170199708-199908

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-35110iLN165,170199708-199908

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35140iLN165,170199708-199908

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35070iLN165,170199708-199908

9043012221

main90430-12221

9161660616

main91616-60616

9331915010

main93319-15010

9356055014

main93560-55014

14 parts on this diagram · 1 diagram in section
