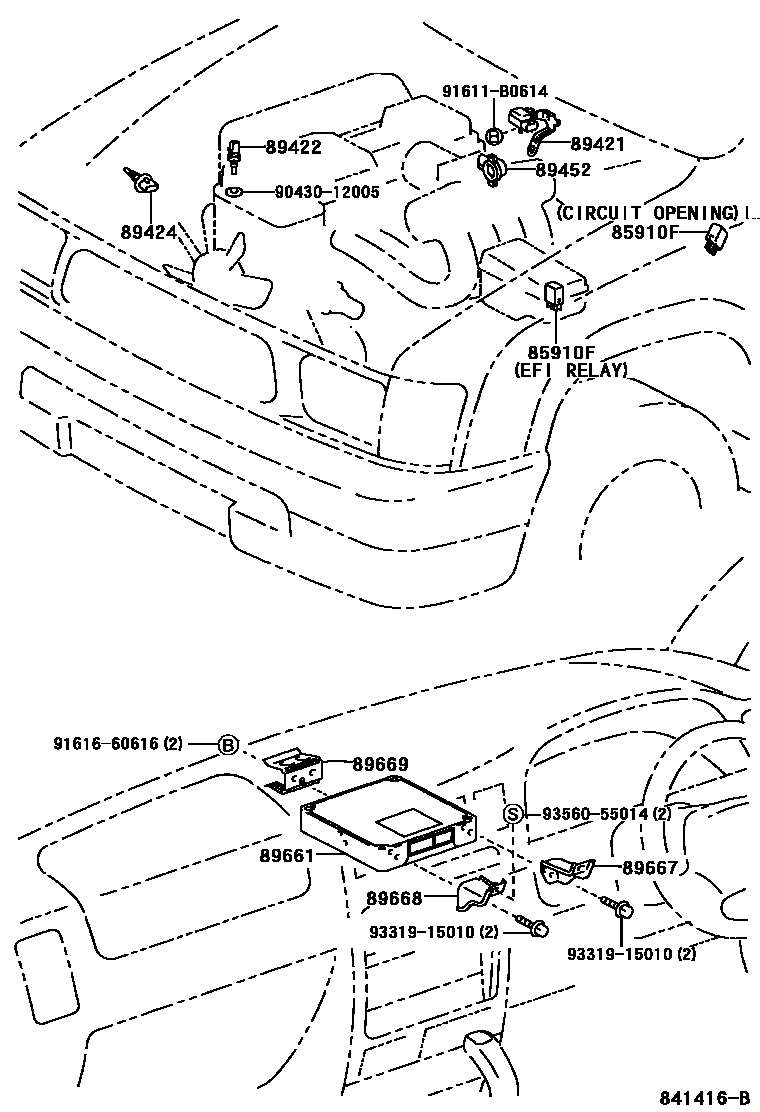

ELECTRONIC FUEL INJECTION SYSTEM

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012×2iRZN147,152,16#,174199708-200108

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-35100iRZN147,152,167199708-200108

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iRZN147,152200108-200308

main89422-35010iRZN169,174200108-200308

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iRZN147,152,167199708-200108

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22080iRZN147,152200108-200308

main89452-35020iRZN169,174200108-200308

89661COMPUTER, ENGINE CONTROL

main89661-3D430iRZN147,152200108-200308

main89661-3D500iRZN167199708-199908

main89666-35020iRZN169,174199908-200108

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-35100iRZN147,152200108-200308

main89667-35110iRZN169,174199908-200108

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35140iRZN147,152,16#,174199708-200108

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35070iRZN147,152,16#,174199708-200108

9043012005

main90430-12005

91611B0614

main91611-B0614

9161660616

main91616-60616

9331915010

main93319-15010

9356055014

main93560-55014

14 parts on this diagram · 1 diagram in section
