Toyota 671130 — REAR COMBINATION LAMP

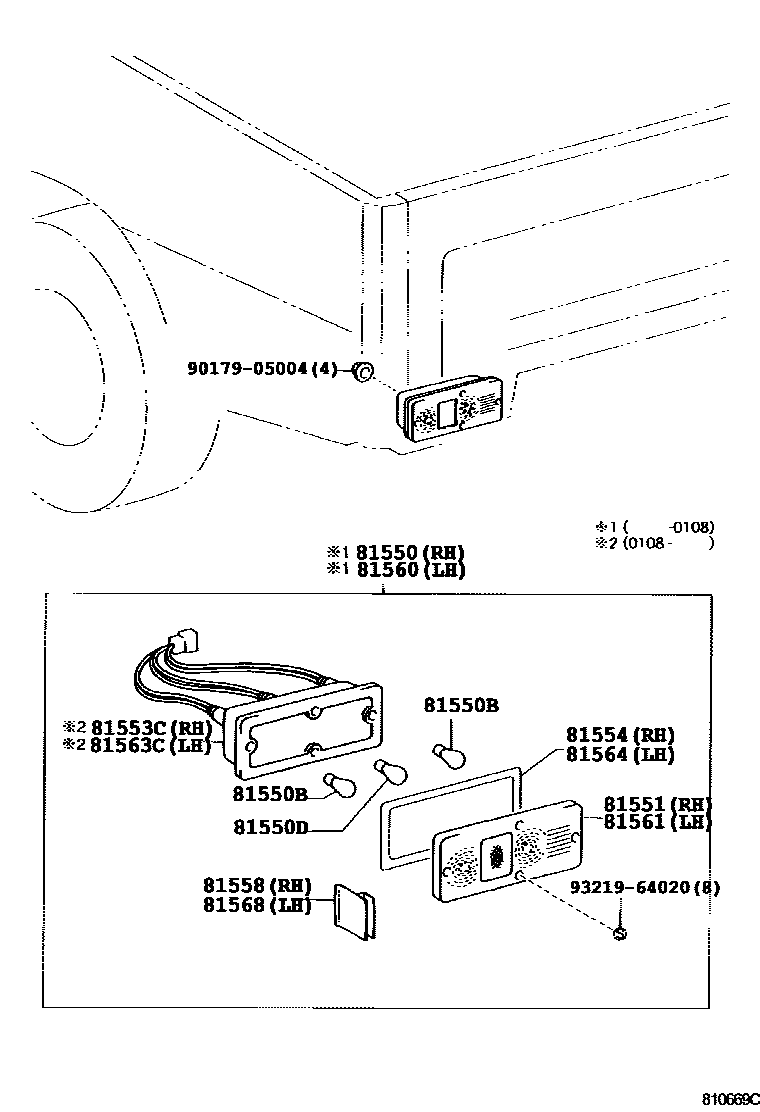

Parts diagram

81550LAMP ASSY, REAR COMBINATION, RH

81550BBULB(FOR REAR COMBINATION LAMP)

81550DBULB(FOR REAR COMBINATION LAMP)

81551LENS, REAR COMBINATION LAMP, RH

81553CBODY, REAR COMBINATION LAMP, RH

81554GASKET, REAR COMBINATION LAMP BODY, RH

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

81560LAMP ASSY, REAR COMBINATION, LH

81561LENS, REAR COMBINATION LAMP, LH

81563CBODY, REAR COMBINATION LAMP, LH

81564GASKET, REAR COMBINATION LAMP BODY, LH

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

9017905004

9321964020

14 parts on this diagram · 3 diagrams in section

REAR COMBINATION LAMP for Toyota 671130

This section contains 21 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota 671130. Key components include: REFLEX REFLECTOR, LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), BULB, TAIL & STOP LAMP.
